Zing Supine Tilt Table Size 2

Description

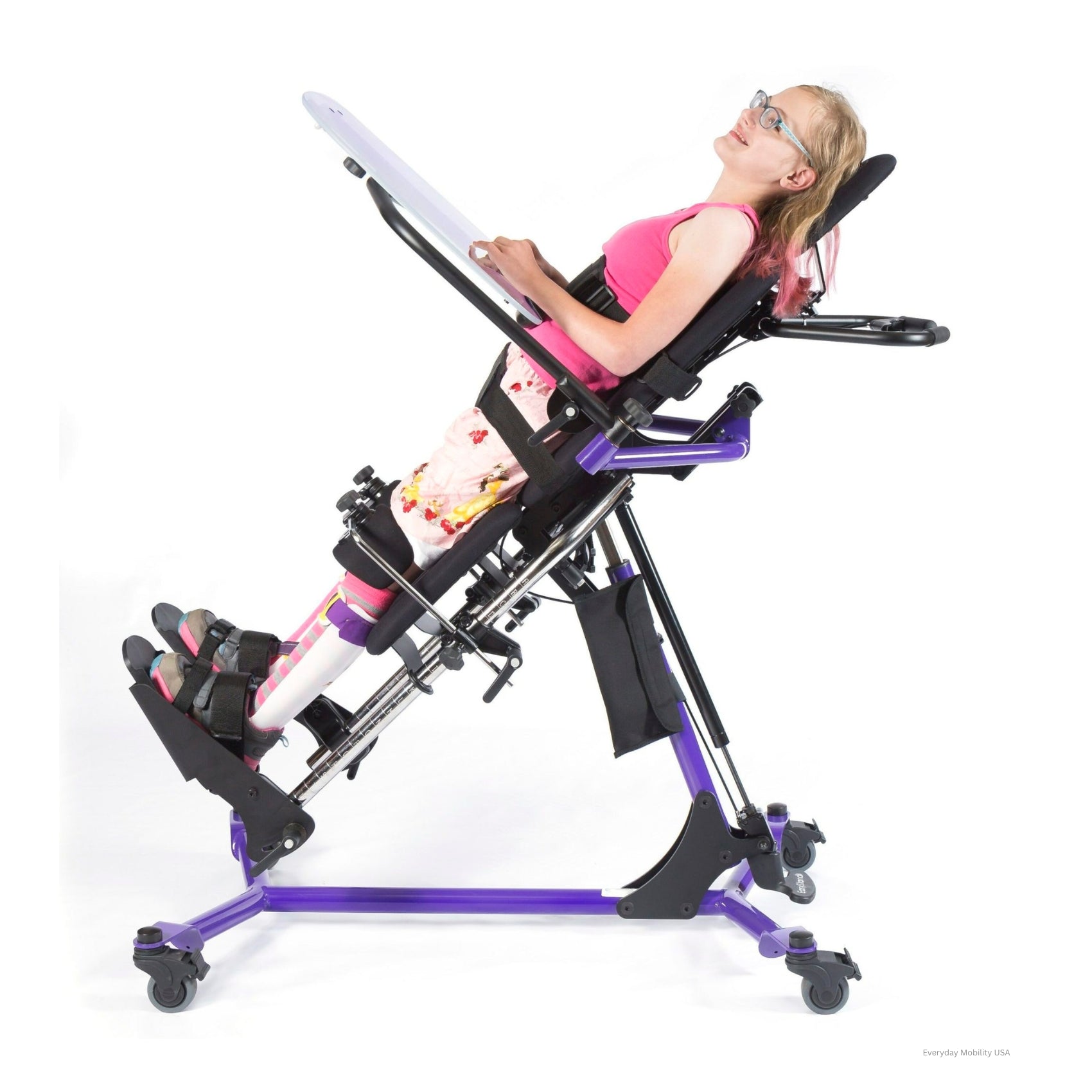

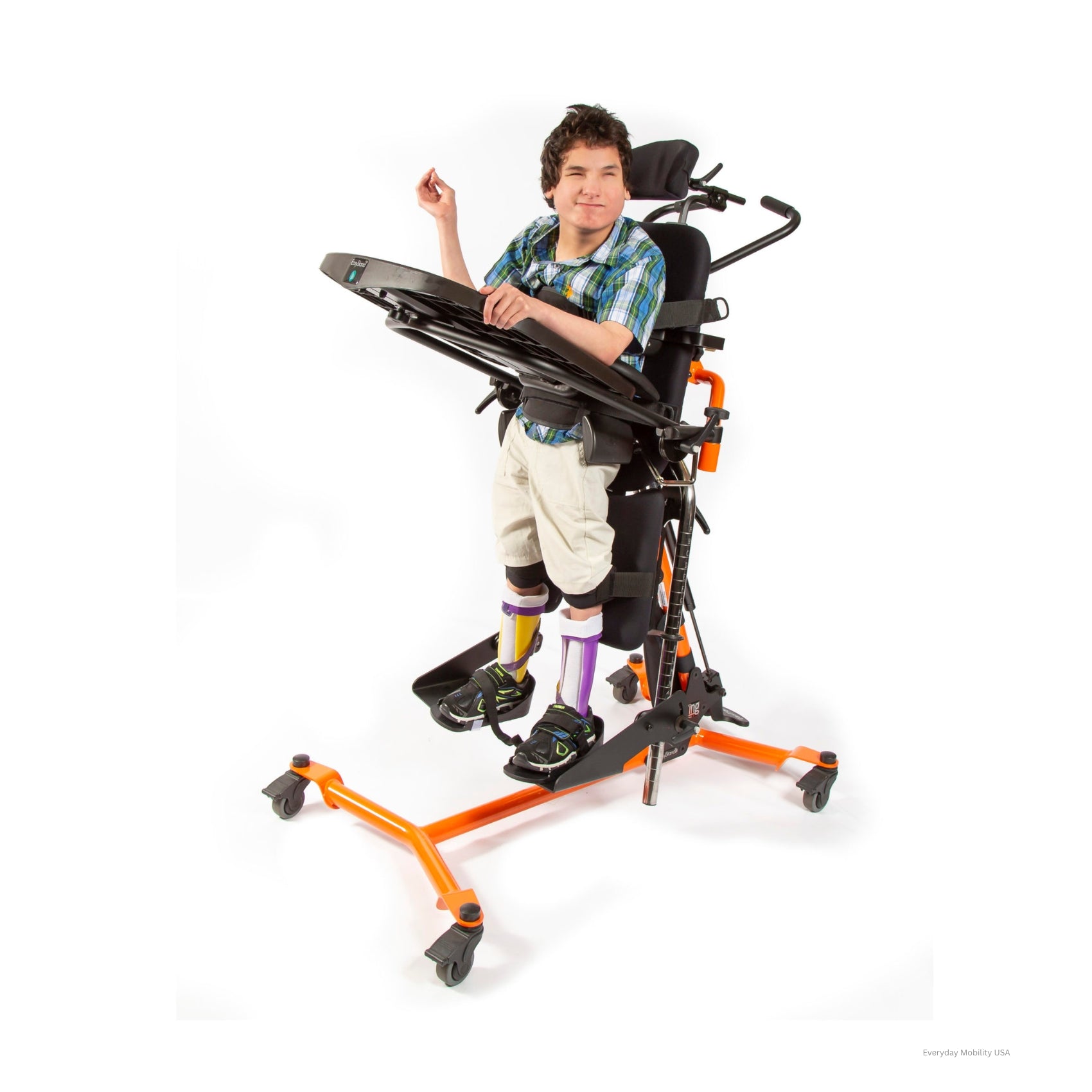

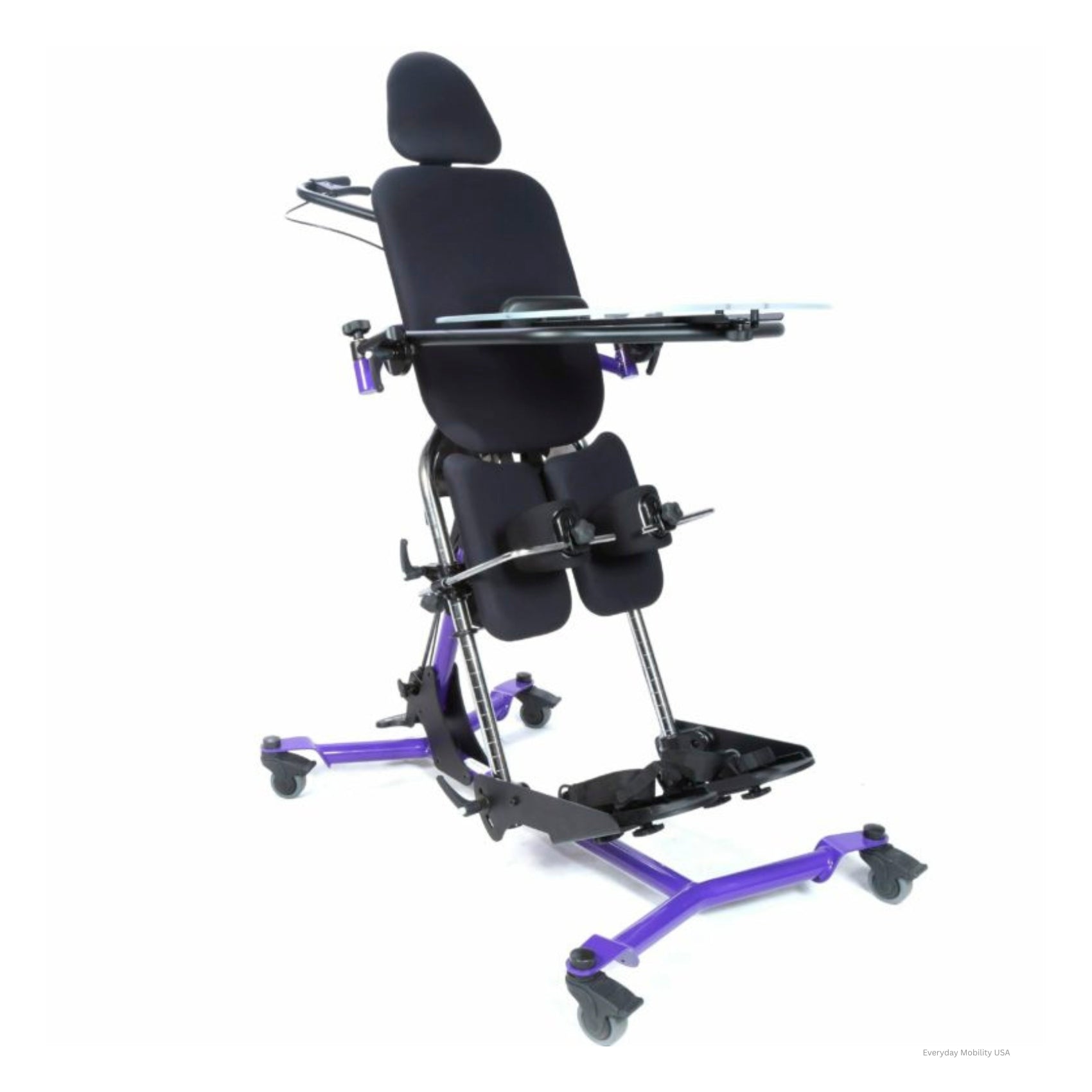

The Zing Supine TT Size 2 is a pediatric supine standing frame designed for individuals from 32 to 60 inches tall and up to 154 lbs. It provides supportive positioning from flat-to-load supine to full vertical standing while offering a larger fit range for growing users who need continued standing support.

The Zing Supine TT combines supine standing functionality with a tilt-table style upper body support system. Its larger support pads and available padded strapping help provide broad pelvic and back support, while tool-free adjustments and removable positioning components help simplify setup and everyday use for caregivers.

For users who need more advanced positioning, the Zing Supine TT Size 2 offers up to 30 degrees of independent leg abduction per side, allowing the entire leg to abduct without requiring separate readjustment of the foot plates or knee pads. Independent and multi-adjustable foot plates, knee pads, calf pads, and floating hip guides also help accommodate a wide range of positioning needs, including unilateral or bilateral contractures.

An available gas spring lift lockout helps prevent unintended position changes, while Dual Control allows caregivers to adjust positions by either foot pedal or hand control. A multi-adjustable swing-away tray can pivot to either side while remaining attached to the unit, or it can be removed completely for transfers and access. The transfer height of the Zing Supine TT Size 2 is 31 inches.

With a highly modular design that supports a wide range of accessories and positioning components, the Zing Supine TT Size 2 can be configured from a simpler standing setup to a more involved pediatric positioning system for home, school, and clinical use.

Specifications

• Height Range: 32” to 60” (82 to 152 cm)
• User Weight Limit: 154 lbs. (70 kg)

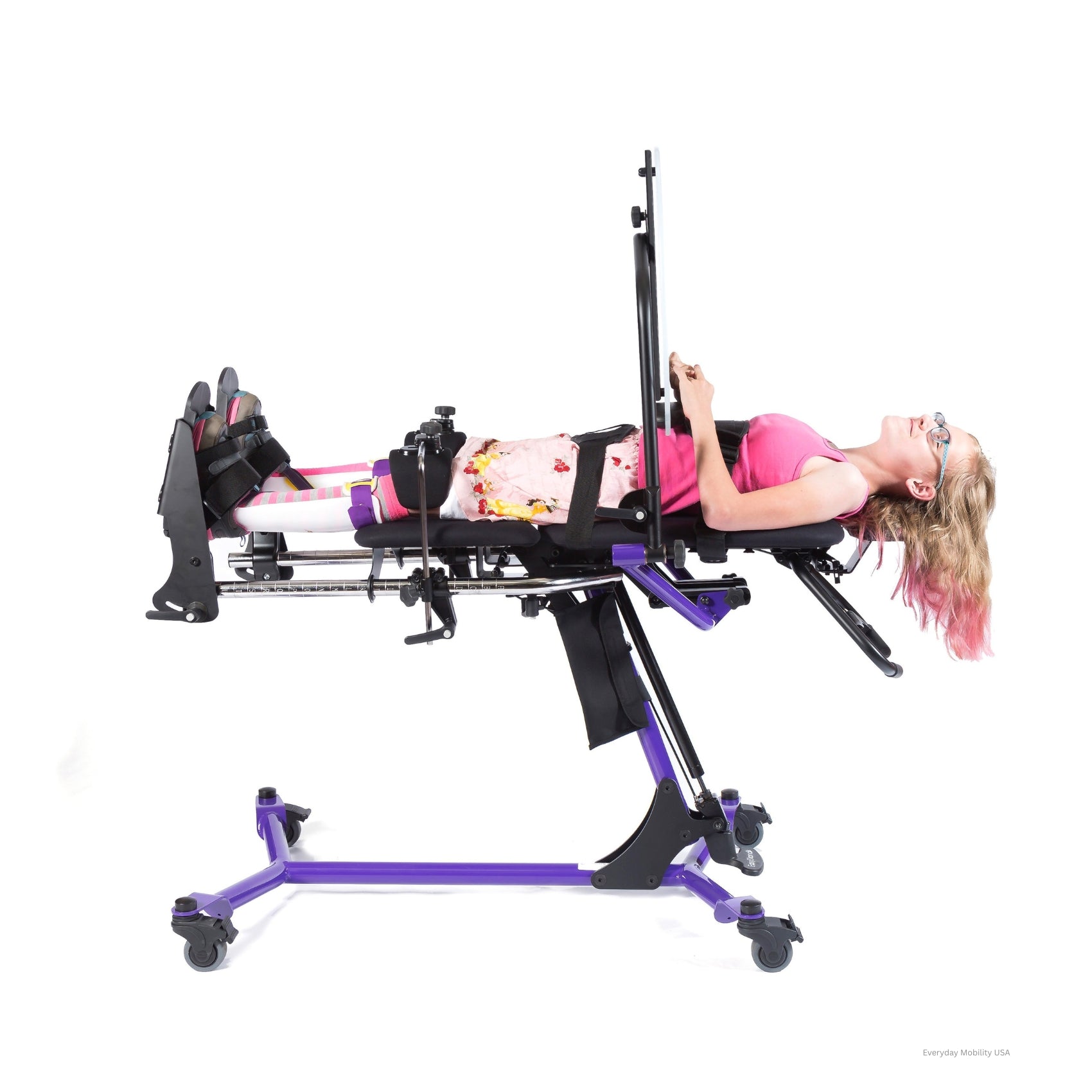

• Transfer Height (Horizontal Position): 31” (79 cm)
• Center of Hip to Footplate Range (Maximum): 34” (86 cm) (may invert footplates as necessary)
• Upper Body Support (Vertical Adjustment Range): 6” (15 cm) (7 settings)
• Approx. Equipment Weight (Basic Unit): 82 lbs (37 kg) (minimally equipped usable configuration, less most options)
• Approx. Equipment Max Weight (Fully optioned unit): 145 lbs. (66 kg)
• Frame Footprint (Caster-to-caster): 26.75” x 39.75” (68 x 101 cm)
• Maximum Dimensions: 28.75” x 41.75” (73 x 106 cm)
• Upholstery: Black nylon/Neoprene or Molded Urethane
• Hygienic Covers: Polyurethane Laminate ECO-PUL (multiple patterns available; see literature or website)
• Frame Color: Green, Purple, Orange, or White (Medium Gloss Polyester Powder Coat)
• Casters and Wheels: 3” diameter (8 cm diameter)
• Lifting Mechanisms Available: Gas Spring; Pow’r Up (Electric)
• Lift Options (if equipped with Gas Spring): Dual Control (hand lever); Lockout Knob
• Positioning Modes: Supine positioning / “Prone-Forward” positioning (Supine, MPS, TT)
• Supine / Prone Angles: Supine 0–90 degrees / Prone 0–20 degrees forward
• Positioning (Prone Model): 90 (vertical) to 0 (horizontal)
• Leg Abduction: Up to 30 degrees per side

Feet

• Foot Straps – Length Over Arch: 10” (25 cm); 15” (38 cm); 21” (53 cm)
• Secure Foot Straps – Length Over Arch: Available in same lengths as regular foot straps
• Footplate Options (L x W): 7.75” x 3.25” (20 x 8 cm); 9.75” x 4” (25 x 10 cm); 11.75” x 5” (30 x 13 cm)
• Footplate (Platform Style): 11.5” L x 16.75” W (29 x 43 cm)
• Multi-Adjustable Footplates – Plantar/Dorsi: +/- 20 degrees
• Multi-Adjustable Footplates – Fore/Aft: +/- 0.75” (+/- 2 cm)
• Multi-Adjustable Footplates Rotation: 30 degrees left/right

Knees

• One-piece Calf Pad / Leg Rest: 17.5” x 5.5” (44 x 14 cm)
• One-piece Calf Pad Strap (approx. circumference): 28” to 38” (71 to 97 cm)
• Kneepad Depth Range (from seat plane): From tight against plane to +7” (Tight to +18 cm)
• Kneepad Options (Inside Width): 3.25” (8 cm); 4.25” (11 cm); 5” (13 cm)
• Kneepad Dimensions (Height x Outside Width): 3.25: 4” x 4” (10 x 10 cm); 4.25: 4.5” x 5” (11 x 13 cm); 5: 5” x 6” (13 x 15 cm)
• Multi-Adjustable Kneepads Width Range: From tight together to 17.25” outside-to-outside (Tight to 44 cm)
• Multi-Adjustable Kneepads Height Range: Infinite from footplate to pelvic pad
• Calf (Behind Knee) Pad Option: 4.5” and 5.5”; Fore/Aft Adjustment from seat plane: +3” / -2” (4.5 x 4.5 in; 5.5 x 5.5 in; +8 cm / -5 cm)
• Independent Planar Leg (Calf) Support TT Pads: 3 sizes: 9” H x 7.5” W; 12” H x 7.5” W; 15” H x 7.5” W (23 x 19 cm; 30 x 19 cm; 38 x 19 cm)
• Independent Planar Leg (Calf) Support TT Pad Strap (approx. circumference): 19” (48 cm)

Table / Tray

• Shadow Tray Size (Molded/Acrylic) — Posterior Support Models (Supine, MPS, TT): 21” x 24” (53 x 61 cm)
• Basic Shadow Tray Height Range (from hip pivot): +4” to +7” (+10 to +18 cm)
• Basic Shadow Tray Fore/Aft Range (posterior pad to chest pad): 0.5” to 12.5” (1 to 32 cm)
• Note: Form-to-Fit Upper Body Supports, Lateral Configuration, and Tray Elbow Pads may reduce tray ranges or introduce interferences. A demo or fitting is always recommended when specifying a highly configured product.
• Swing Away Tray Height Range (from hip pivot): +4” to +7” (+10 to +18 cm)
• Swing Away Tray Fore/Aft Range (posterior pad to chest pad): 4” to 16” (10 to 41 cm)
• Swing Away Tray Angle Adjust Range: -90 to +90 Degrees
• Chest Pad (Tray Mounted): 3” H x 8” W (8 x 20 cm)
• Elbow (Cutout) Tray Pads — Inside Width: 9.25” / 11” / 13” (23 cm / 28 cm / 33 cm)

Upholstery / Positioning Options / Specs

Hip Supports

• Hip Support Pad Size: 4.5” x 4” (11 x 10 cm)
• Hip Supports Width Range: 2 sizes — 7” to 13” and 12” to 18” (18 to 33 cm; 30 to 46 cm)
• Hip Support, TT, Width Range: 10” to 16” (25 to 41 cm)

Lateral Supports

• Lateral Support Pad Size: 4” x 6” (10 to 15 cm)
• Lateral Supports Width Range (Supine & MPS) — 2 sizes:
  • 11” wide upper body pad: 7” to 11” and 10” to 14” (18 to 28 cm; 25 to 36 cm)
  • 13” wide upper body pad: 9” to 13” and 12” to 16” (23 to 33 cm; 30 to 41 cm)
• Lateral Supports w/ Elbow Stops and/or Arm Rests (Supine and MPS only): Width Range including optional pad holes — w/ 11” wide pad: 10” to 17” (25 to 43 cm); w/ 13” wide pad: 12” to 19” (30 to 48 cm)
• Lateral Supports, TT, Width Range: 10” to 16” (25 to 41 cm)
• Lateral Supports, Prone, Width Range: 7” wide upper body pads: 7 to 12” (18 to 30 cm); 9” wide upper body pads: 9 to 14” (23 to 36 cm)
• Lateral Supports Height Range: 4” (10 cm) or 8” (20 cm) by swapping L/R
• Lateral Supports Fore/Aft Range: 1” (3 cm)

Trunk and Torso Pads

• Pelvic Support (Planar and Form-to-Fit) — Supine / MPS (2 sizes each): 10” H x 11” W and 10” H x 13” W (25 x 28 cm; 25 x 33 cm)
• Main Support Pad, TT, Planar (3 sizes): 19” H x 16” W; 22” W x 16” W; 25” W x 16” W (48 x 41 cm; 56 x 41 cm; 64 x 41 cm)
• Upper Body Support (Planar and Form-to-Fit) — Supine / MPS (2 sizes each): 8” H x 11” W and 8” W x 13” W (20 x 28 cm; 20 x 33 cm)
• Prone Pelvic Anterior Support: Planar: 10” H x 11” W; 10” H x 13” W (25 x 28 cm; 25 x 33 cm) — Form-to-Fit: 10” H x 11” W; 10” H x 13” W (25 x 28 cm; 25 x 33 cm)
• Prone Upper Body Anterior Support: Planar/Form-to-Fit options include: 5” H x 7” W; 5”H x 9”W; 7”H x 7” W; 7”H x 9”W; 5”H x 12”W; 7”H x 12”W; 10”H x 13”W (13 x 18 cm; 13 x 23 cm; 18 x 18 cm; 18 x 23 cm; 13 x 30 cm; 15 x 33 cm; 18 x 30 cm; 25 x 33 cm)
• Positioning/Chest Strap (Pad Size): 6” x 10” (15 x 25 cm)

Positioning Strap and Chest Strap Options

• PA3011 (A3011): 29 in (74 cm)
• PT30066 (T30066): 35 in (89 cm)
• PA5610 (A3011): 29 in (74 cm)
• PB5542 (T30066): 35 in (89 cm)
• PA3062 (A3062): 45 in (114 cm)
• PB3052 (B3052): 57 in (145 cm)
• PB5592 (A3062): 45 in (114 cm)
• PB5594 (B3052): 57 in (145 cm)
• PB5596 (A3062): 45 in (114 cm)
• PB5598 (B3052): 57 in (145 cm)

• Chest Vest – X-Style: 11” L x 9.5” W (28 x 24 cm)
• Chest Vest – X-Style: 14.5” L x 10.5” W (37 x 27 cm)
• Y Style Vest: 17.5” L x 11.5” W (44 x 29 cm)
• Y Style Vest: 20.5” L x 12.5” W (52 x 32 cm)

Posterior Head Support

• Head Support Height Range (from top of upper body pad): 1” to 10” (2.5 to 25 cm)
• Head Support Depth Range (from backrest): -3.5” to +1” (-9 to +2.5 cm)
• Head Support Options: 5” H x 8” W (13 x 20 cm); 6” H x 10” W (15 x 25 cm); 7” H x 14” W (18 x 36 cm)
• Form-to-Fit Head Support: Height 5” (13 cm); Width variable up to approximately 10” (25 cm)
• TT Planar Head Support: 9” H x 10” W (23 x 25 cm)

Anterior Head Support (Face Prompt)

• Prone Model Only: 2 pads
• Pad Size: 3” W x 9” H (8 x 23 cm)

Funding

Funding Resources (Zing Size 2)

• Zing Size 2 Sample LMN (Editable .DOCX)
• Zing Size 2 Sample LMN (PDF Reference)
• Zing Manufacturer Funding Guide
• Write an LMN (JustifyIt)

Insurance coverage may be available for qualifying individuals. Funding typically requires clinical evaluation and supporting documentation from the prescribing provider and therapist.
