EasyStand

Zing Supine Tilt Table Size 1

$1,473.00

Sale Sold out

Shipping calculated at checkout.

Package PA5522 Zing Supine Tilt Table Base Size 1

View full details

Description

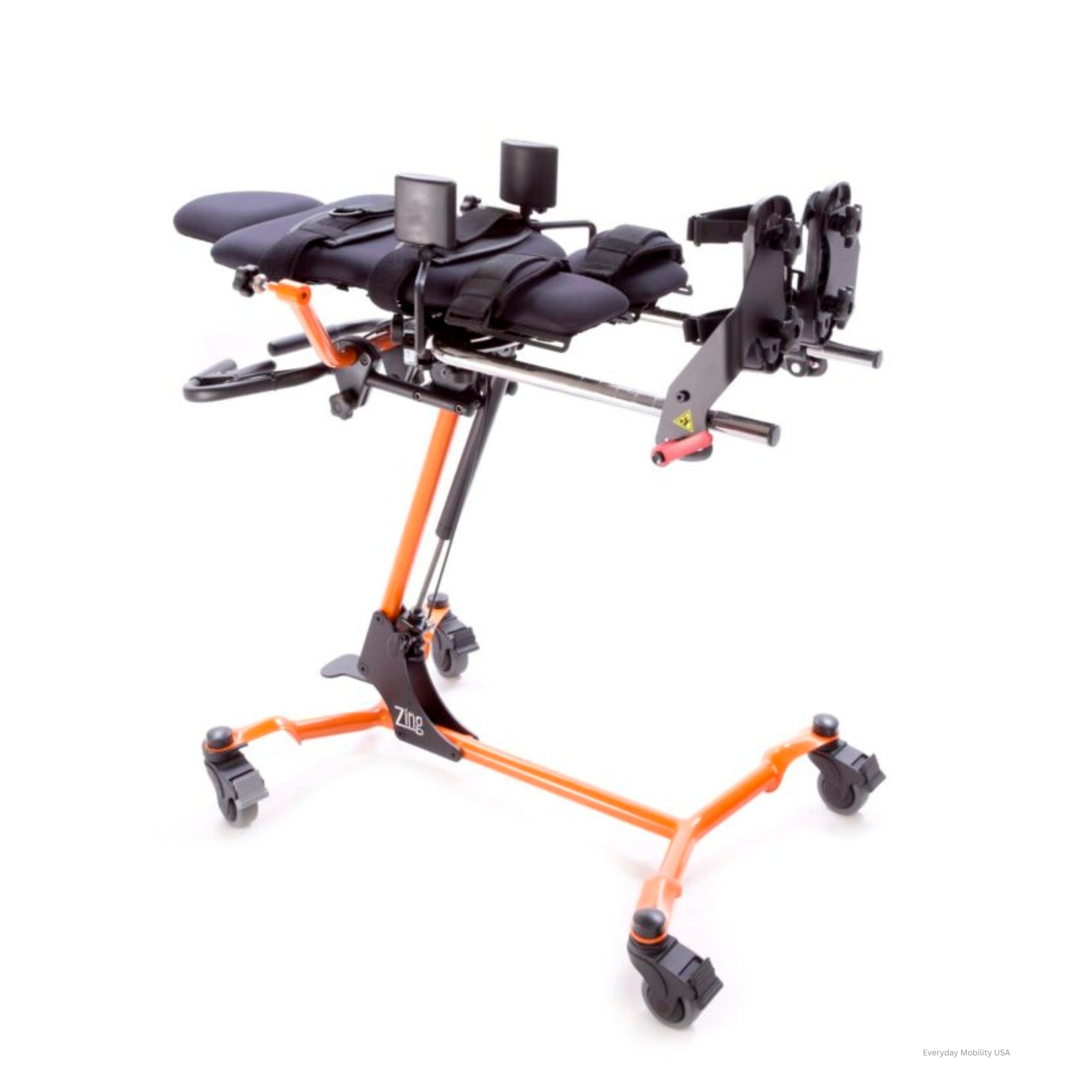

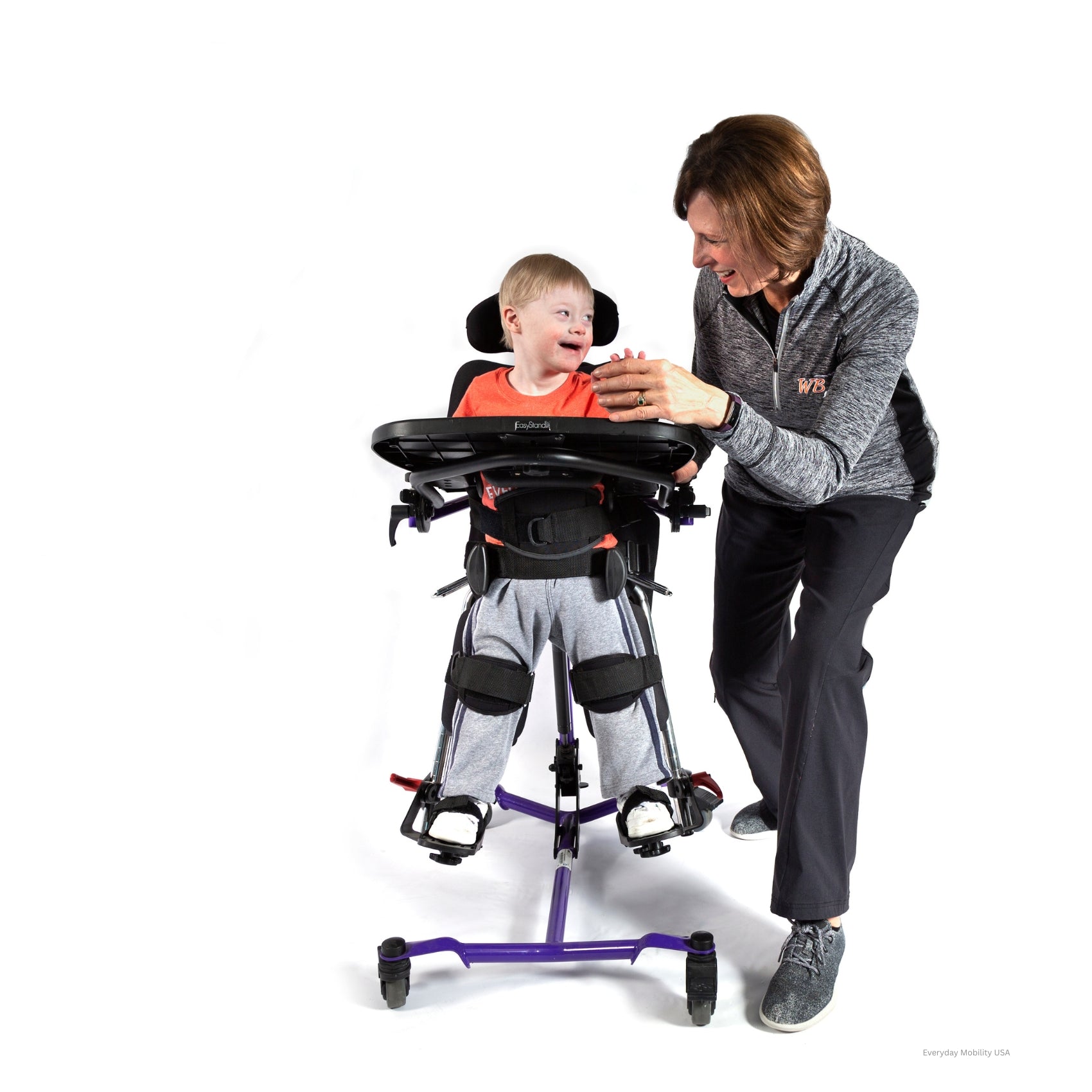

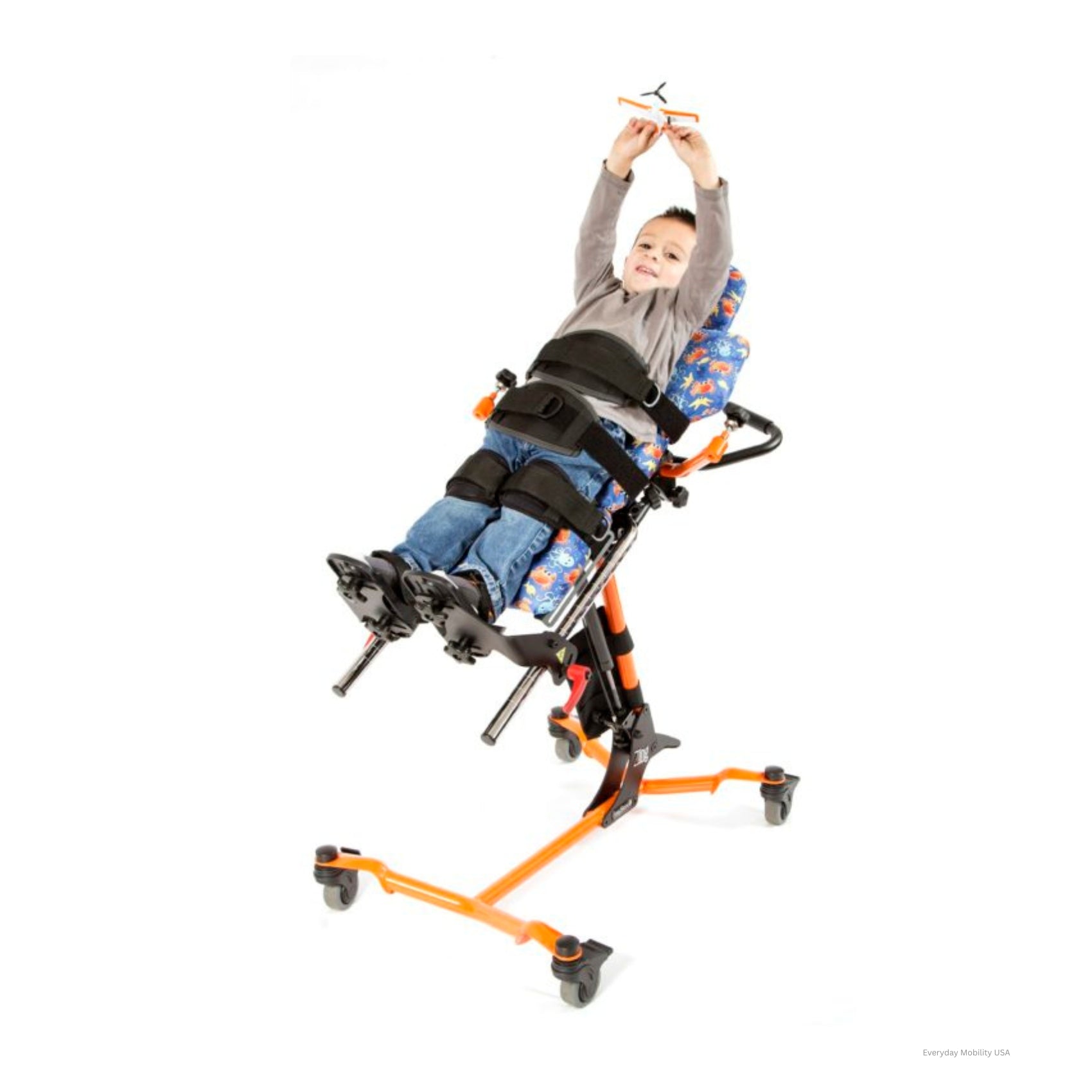

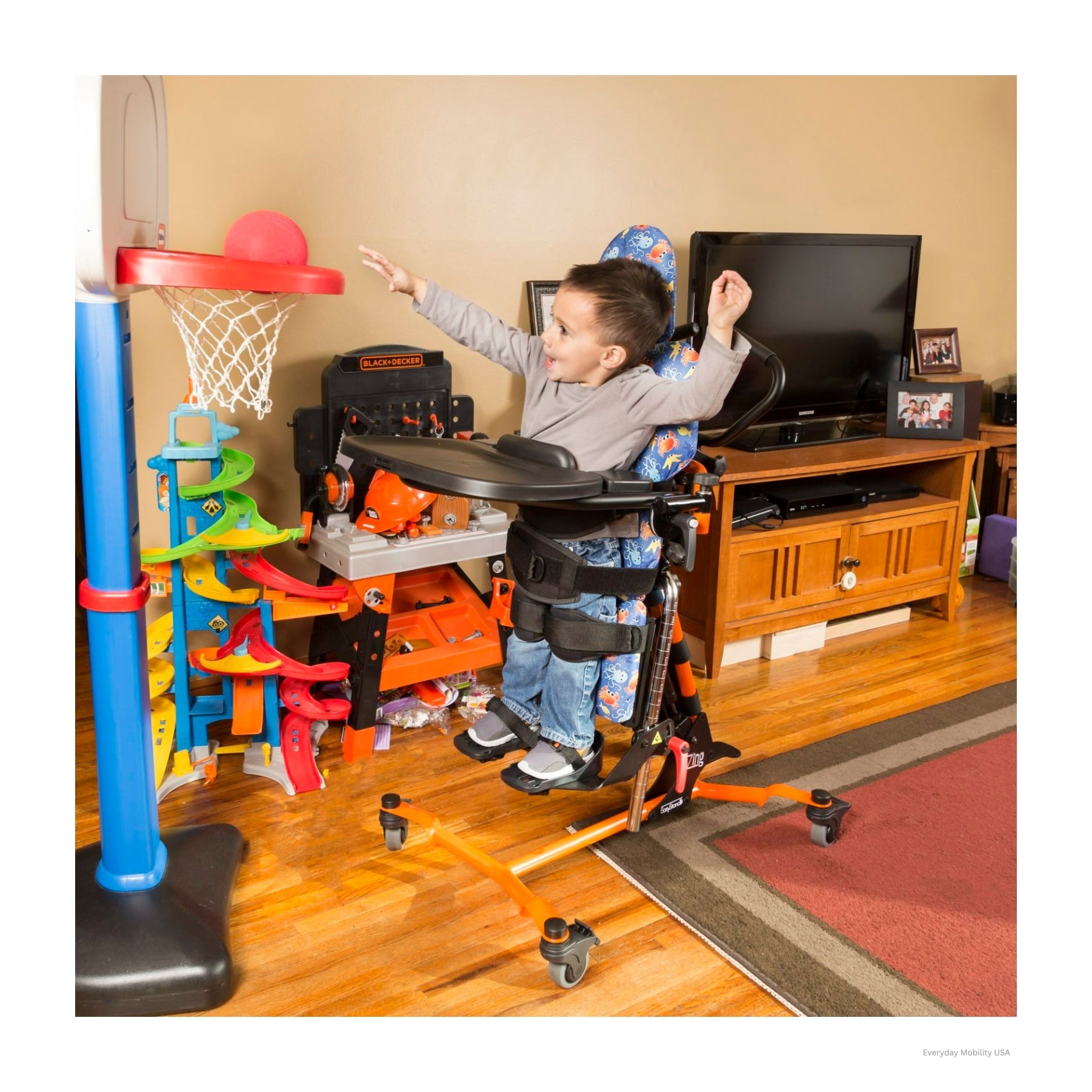

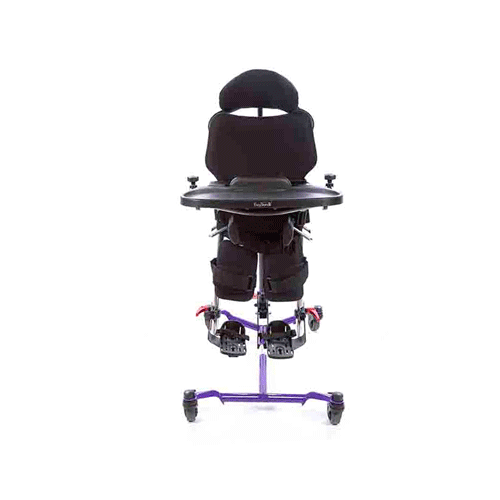

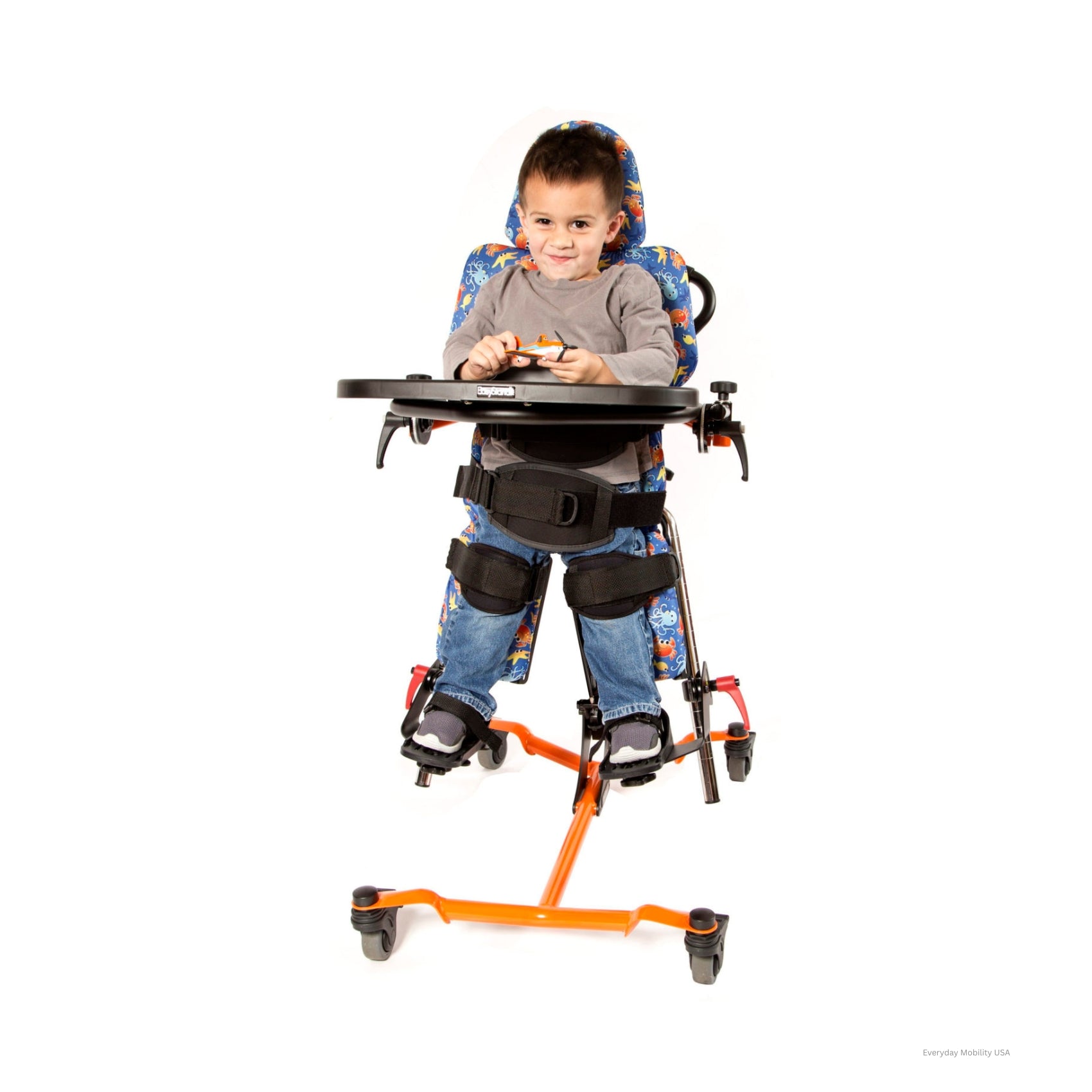

The Zing Supine TT is a pediatric supine standing frame designed for individuals from infancy to 44 inches tall and up to 70 lbs. It provides supportive positioning from flat-to-load supine to full vertical standing while using a tilt-table style upper body support system for simpler, more streamlined positioning.

The Zing Supine TT features the larger support pads and padded strapping options found on the MPS TT, helping provide broad upper body and pelvic support for users who do not require more segmented positioning components. Tool-free adjustments and removable support components help simplify setup and everyday use for caregivers.

For users who need more advanced positioning, the Zing Supine TT offers up to 30 degrees of independent leg abduction per side, allowing the entire leg to abduct without requiring separate readjustment of the foot plates or knee pads. Independent and multi-adjustable foot plates, knee pads, calf pads, and floating hip guides also help accommodate a wide range of positioning needs, including unilateral or bilateral contractures.

An available gas spring lift lockout helps prevent unintended position changes, while Dual Control allows caregivers to adjust positions by either foot pedal or hand control. A multi-adjustable swing-away tray can pivot to either side while remaining attached to the unit, or it can be removed completely for transfers and access.

With a highly modular design that supports a wide range of accessories and positioning components, the Zing Supine TT can be configured from a simpler standing setup to a more involved pediatric positioning system for home, school, and clinical use.

Specifications

Height Range: Up to 44″ / Up to 112 cm
Weight Limit: 70 lbs / 32 kg
Transfer Height (Horizontal Position): 32″ / 81 cm
Center of Pelvic Support to Footplate Range: 7″–22″ / 18–56 cm (footplates may be inverted as needed)
Upper Body Support Height Range: 4″ / 10 cm
Kneepad Depth Range: 5″ / 13 cm
Kneepad Inside Width Options: 2.5″, 3.25″, 4.25″, 5″ / 6, 8, 11, 13 cm
Kneepad Dimensions:
- 2.5″: 3.5″ x 4″ / 9 x 10 cm
- 3.25″: 4″ x 4″ / 10 x 10 cm
- 4.25″: 4.5″ x 5″ / 11 x 13 cm
- 5″: 5″ x 6″ / 13 x 15 cm
Multi-Adjustable Kneepad Width Range (center-to-center):
- 2.5″ pads: 4″–9″ / 10–23 cm
- 3.25″ pads: 4.5″–9″ / 11–23 cm
- 4.25″ pads: 5″–8″ / 13–20 cm
- 5″ pads: 6″–7″ / 15–18 cm
Multi-Adjustable Kneepad Height Range: ±0.75″ / 2 cm
Weight of Basic Unit: 55 lbs / 25 kg
Frame Footprint (caster-to-caster): 20″ x 28″ / 51 x 71 cm
Maximum Dimensions: 21.5″ x 29.5″ / 55 x 75 cm
Upholstery: Black nylon/neoprene or molded urethane
Hygienic Covers: Polyurethane Laminate ECO-PUL
Frame Color Options: Green, Purple, Orange, or White
Casters & Wheels: 3″ diameter / 8 cm
Lifting Mechanism Available: Gas spring
Lift Options: Dual control (hand lever), lockout knob
Positioning Options:
- Supine: 0–90°
- Prone-Forward: 0–20°
- Vertical Model: 90° fixed position
Leg Abduction: 30° per side
Foot Straps – Extra Small (length over arch): 8″ or 10″ / 20 or 25 cm
Secure Foot Straps: Available in same lengths as standard foot straps
Footplate Options (L x W):
- 6″ x 3″ / 15 x 8 cm
- 7.75″ x 3.25″ / 20 x 9 cm
- 9.75″ x 4″ / 25 x 11 cm
- Platform Style: 8″ x 12″ / 20 x 30 cm
Multi-Adjustable Footplates: Plantar/Dorsi ±20°, Fore/Aft ±0.75″ (±2 cm), Rotation ±30°
Single Calf Pad / Leg Rest: 4″ x 13.5″ / 10 x 34 cm
Single Calf Pad Strap (fits circumference): 24″ / 61 cm
Calf (Behind Knee) Pad Options: 3.5″ x 3.5″ or 4.5″ x 4.5″ with fore/aft adjustment −1″ to +4″ / −2.5 to +10 cm
Independent Planar Leg (TT) Pad Sizes: 4″ x 6″, 6″ x 6″, 8″ x 6″ / 10x15, 15x15, 20x15 cm
TT Pad Strap (fits circumference): Up to 15″ / 38 cm
Shadow Tray Size (Molded/Acrylic): 11″ x 19″ / 28 x 48 cm
Shadow Tray Height Range: 3″ / 8 cm
Shadow Tray Fore/Aft Range: 0″–10″ / 0–25 cm
Swing-Away Tray Size: 11″ x 19″ / 28 x 48 cm
Swing-Away Tray Height Range: 3″ / 8 cm
Swing-Away Tray Fore/Aft Range: 4″–9″ / 10–23 cm
Swing-Away Tray Angle Adjustment: +40° to −90°
Hip Support Pad Size: 3.5″ x 3.5″ / 9 x 9 cm
Hip Supports Width Range: 6″–10″ / 15–25 cm
Lateral Support Pad Size: 3.5″ x 3.5″ / 9 x 9 cm
Lateral Supports Width Range: 7″–11″ / 18–28 cm
Lateral Supports Height Range: 3.5″ / 9 cm
Lateral Supports Fore/Aft Range: 1″ / 3 cm
Pelvic Support Options: Planar or Form-to-Fit (posterior and anterior)
Upper Body Support Options: Planar or Form-to-Fit
Chest Pad: 3″H x 8″W / 8 x 20 cm
Chest Strap Pad Size: 5″H x 8″W / 13 x 20 cm
Chest Strap Fit (approx.): Up to 24″ / 61 cm
Chest Vests: X-Style available in multiple sizes
Posterior Head Support Height Range: 8″ / 20 cm
Posterior Head Support Depth Range: −2.5″ to +1.5″ / −6 to +4 cm
Head Support Options: Extra-Small, Small, Flat, Form-to-Fit, and TT Planar
Anterior Head Support (Prone/Vertical): Face aperture pads, 3″ x 9″ / 8 x 23 cm
Configurations Available: Supine, MPS (Multi-Positional), TT (Tilt Table), Prone, Vertical

Funding

Funding Resources (Zing Size 1)

Insurance coverage may be available for qualifying individuals. Funding typically requires clinical evaluation and supporting documentation from the prescribing provider and therapist.

Catalogs

Manuals

Order Forms

Reference Only: These order forms are provided for configuration review and planning purposes only.

Zing Supine TT Size 1 Itemized Order Form

Resources

Videos

Warranty

Altimate Medical, Inc. extends this limited warranty only to the original purchaser/customer (or supplier non-consumer who does not buy or resell). EasyStand and Zing products are warranted against defects in materials and workmanship as outlined below.

Warranty Coverage

Steel Frames – 5-year warranty
Hydraulic Actuator – 2-year warranty
Gas Spring – 2-year warranty
Upholstered Components, Plastic Pads, Rubber Parts, Painted Surfaces, Bearings, and Other Parts Not Specifically Identified Above – 90-day warranty

Warranty on Electrical Option Components

Actuator & Hand Pendant – 2-year warranty
Control Box & Battery – 90 days
Battery Charger – 90 days

Warranty Period

The warranty period begins on the original ship date from Altimate Medical. Any product proven to Altimate Medical’s satisfaction to be defective and within the warranty period will be repaired or replaced at Altimate Medical’s option.

Warranty Limitations

Altimate Medical’s sole obligation and your exclusive remedy under this warranty are limited to repair and/or replacement. This warranty does not include any labor charges incurred in replacement parts installation. Freight charges to and from the factory are the responsibility of the consumer or seller. Return freight charges will be prepaid by Altimate Medical for warranty service when requested by Altimate Medical before return. To receive satisfactory warranty service, please write directly to Altimate Medical at the address below. Do not return products without prior authorization.

This warranty does not apply to products subjected to negligence, abuse, misuse, improper operation, improper maintenance, improper storage, or damages beyond normal use. It also does not apply to products modified without Altimate Medical’s written consent, including modifications through the use of unauthorized parts or attachments, or products damaged by repairs using parts not manufactured by Altimate Medical or not complying with original equipment specifications.

Disclaimer

The foregoing warranty is exclusive and in lieu of all other express warranties. Altimate Medical shall not be liable for any consequential or incidental damages whatsoever.

Additional Information

Altimate Medical maintains a policy of continual product improvement and reserves the right to change features, specifications, and prices without prior notice. Check with Altimate Medical for the latest product information.
