EasyStand

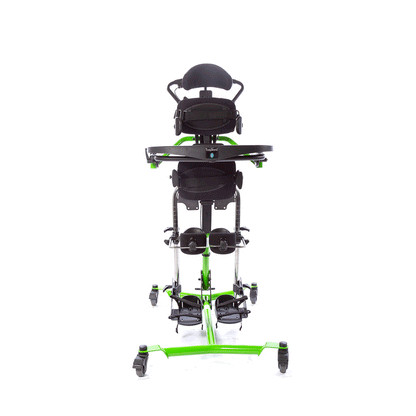

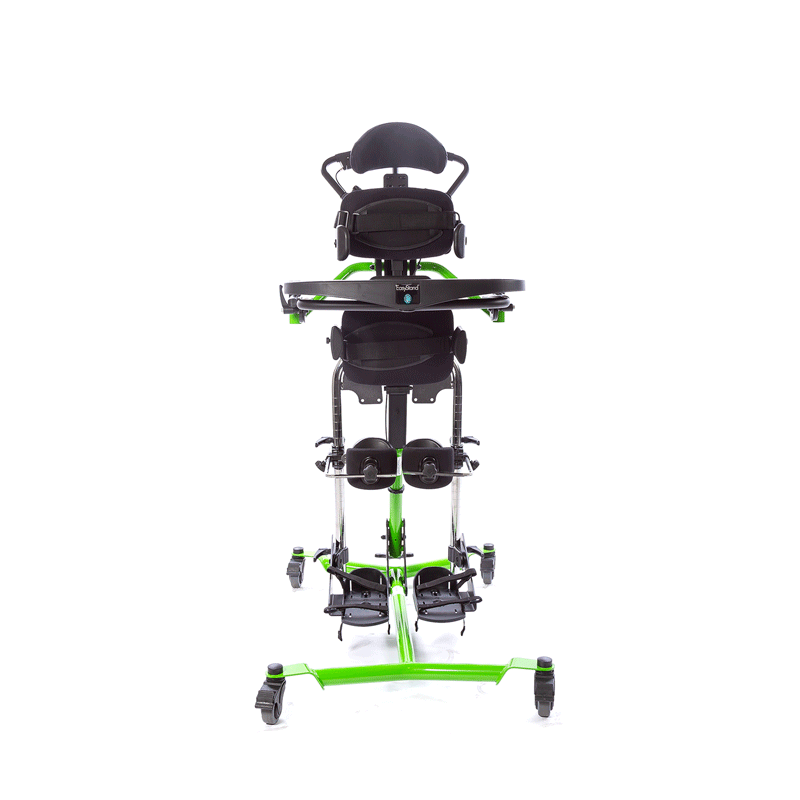

Zing Supine Size 2
Zing Supine Size 2
No reviews
Regular price
$1,875.00
Regular price
Sale price
$1,875.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description

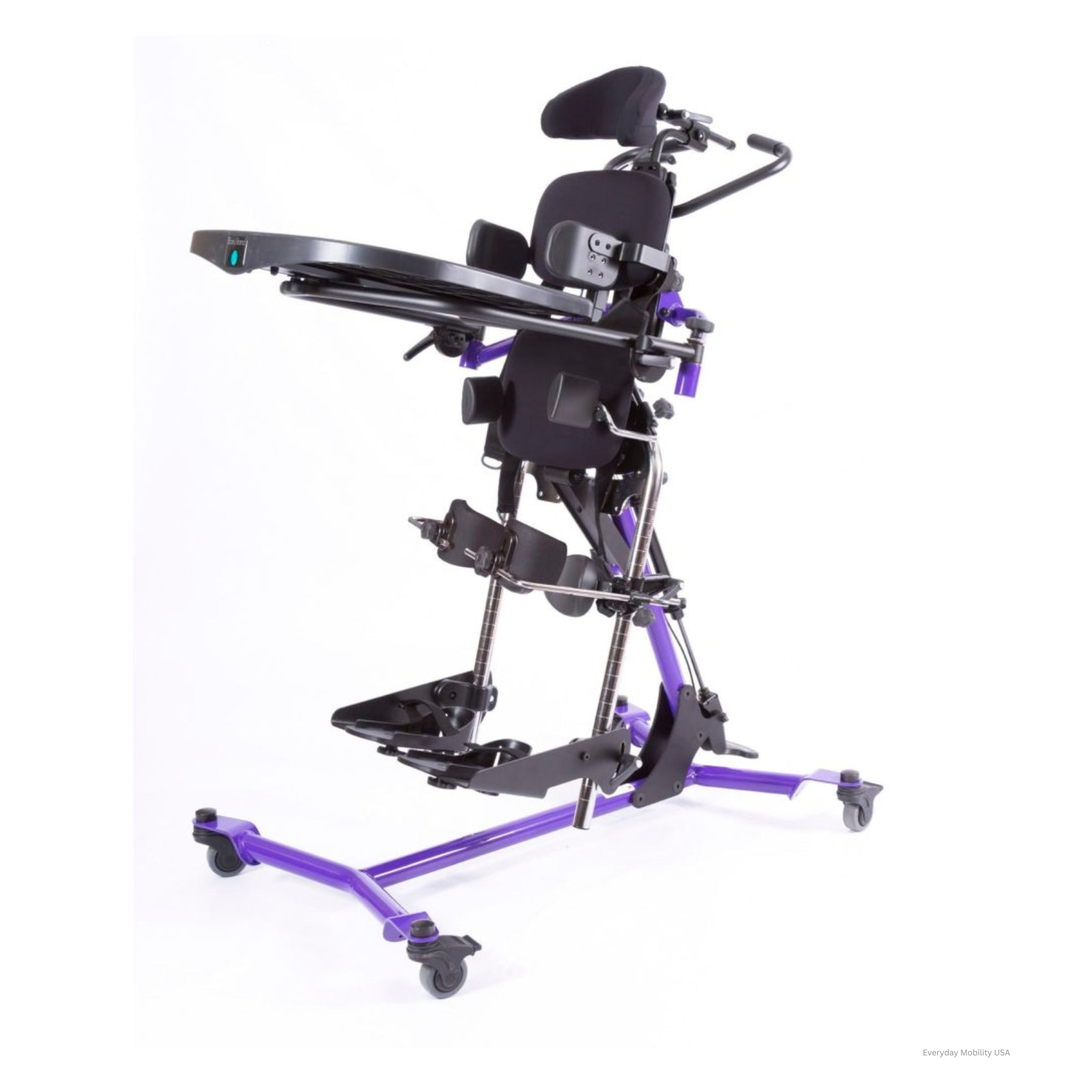

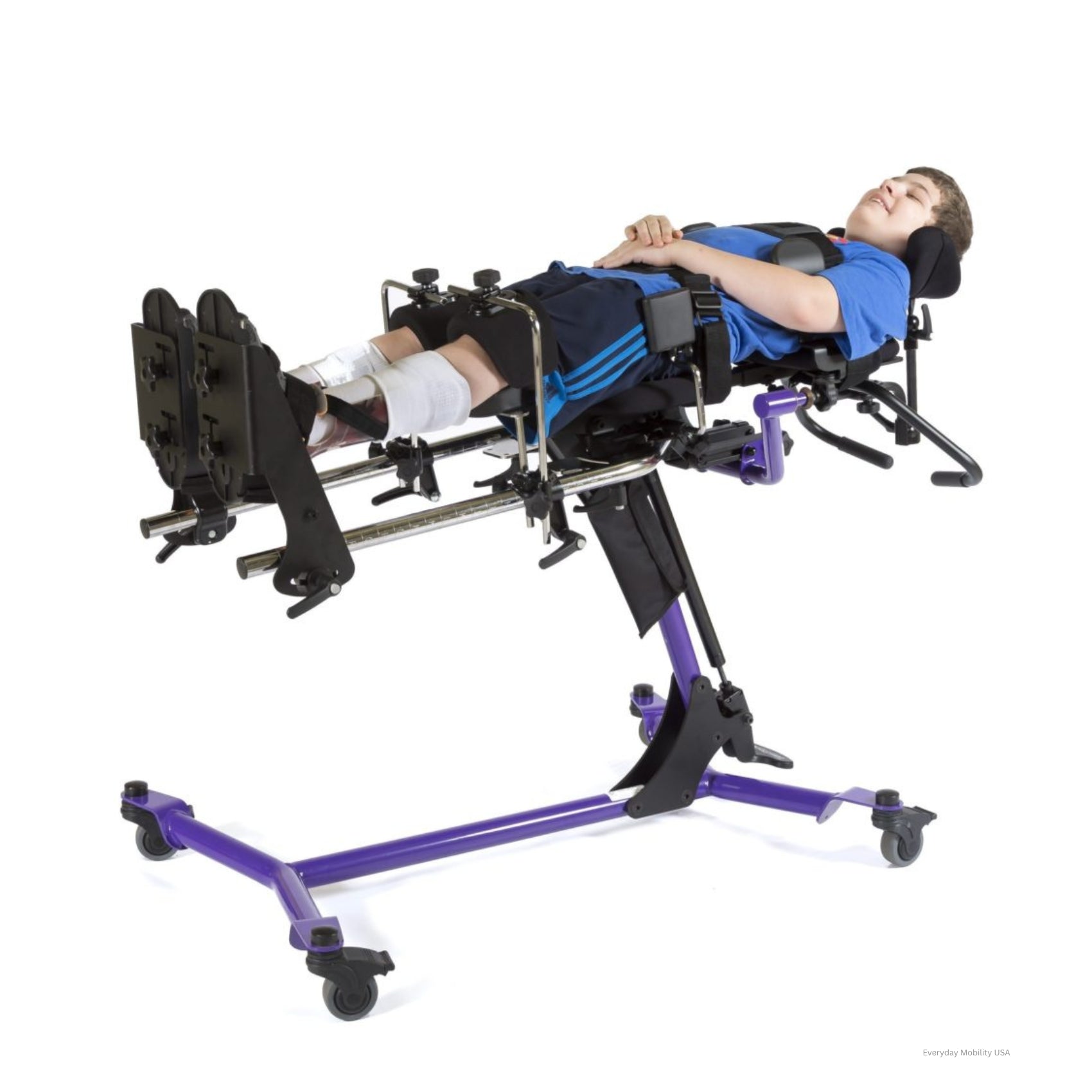

The Zing Supine Size 2 is a larger version of the Zing Supine Size 1. It is a pediatric supine standing frame designed to provide positioning opportunities from flat-to-load supine to full vertical standing. Tool-free adjustments and removable support and positioning components help simplify setup and everyday use for caregivers.
For users who need more advanced positioning, the Zing Supine Size 2 offers up to 30 degrees of independent leg abduction per side, allowing the entire leg to abduct without requiring separate readjustment of the foot plates or knee pads. Independent and multi-adjustable foot plates, knee pads, calf pads, and floating hip guides make the Zing Supine one of the few standers able to accommodate contractures on one or both sides.

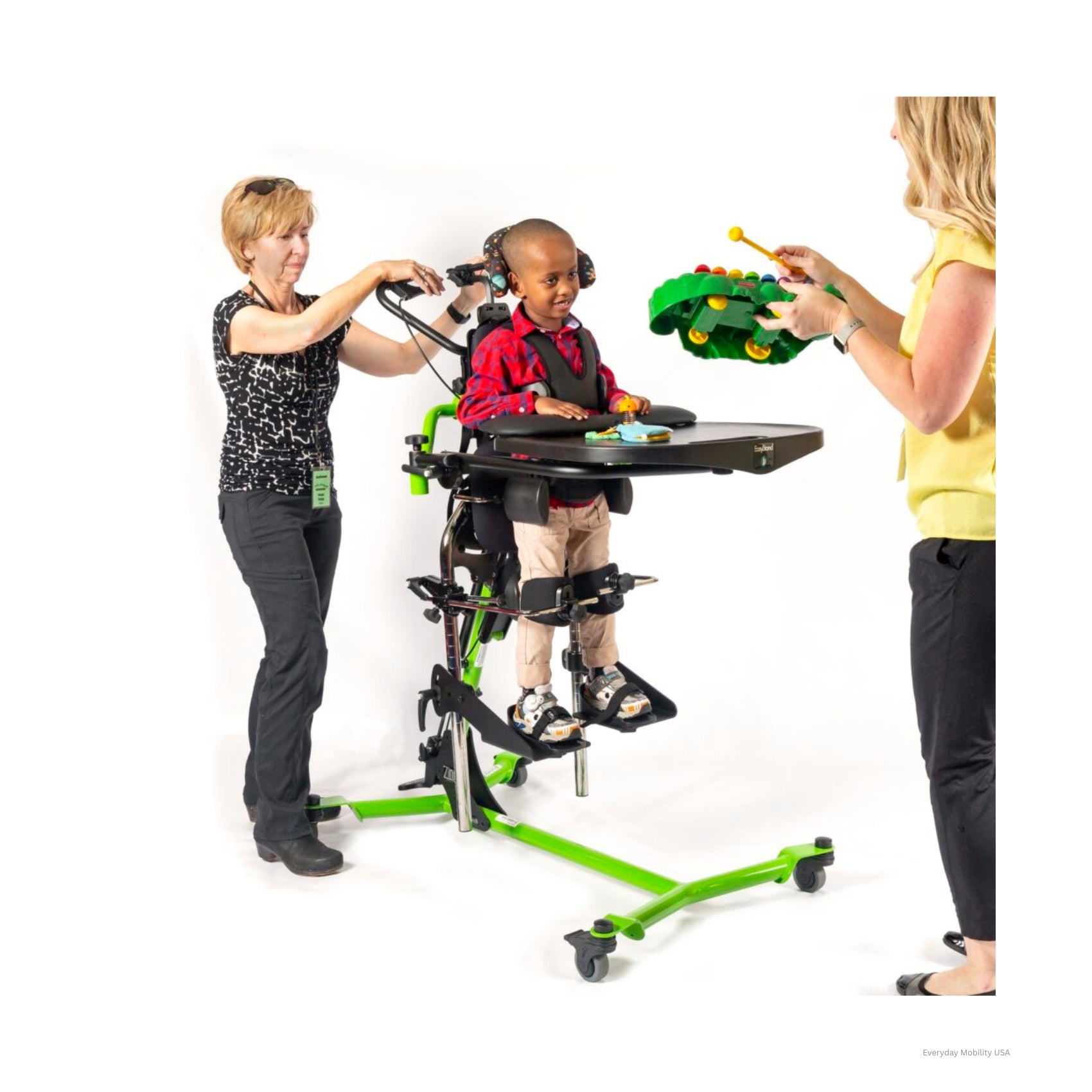

An available gas spring lift lockout helps prevent unintended position changes and can be especially useful when other children are present during standing sessions. Dual Control allows caregivers to adjust positions by either foot pedal or hand control.

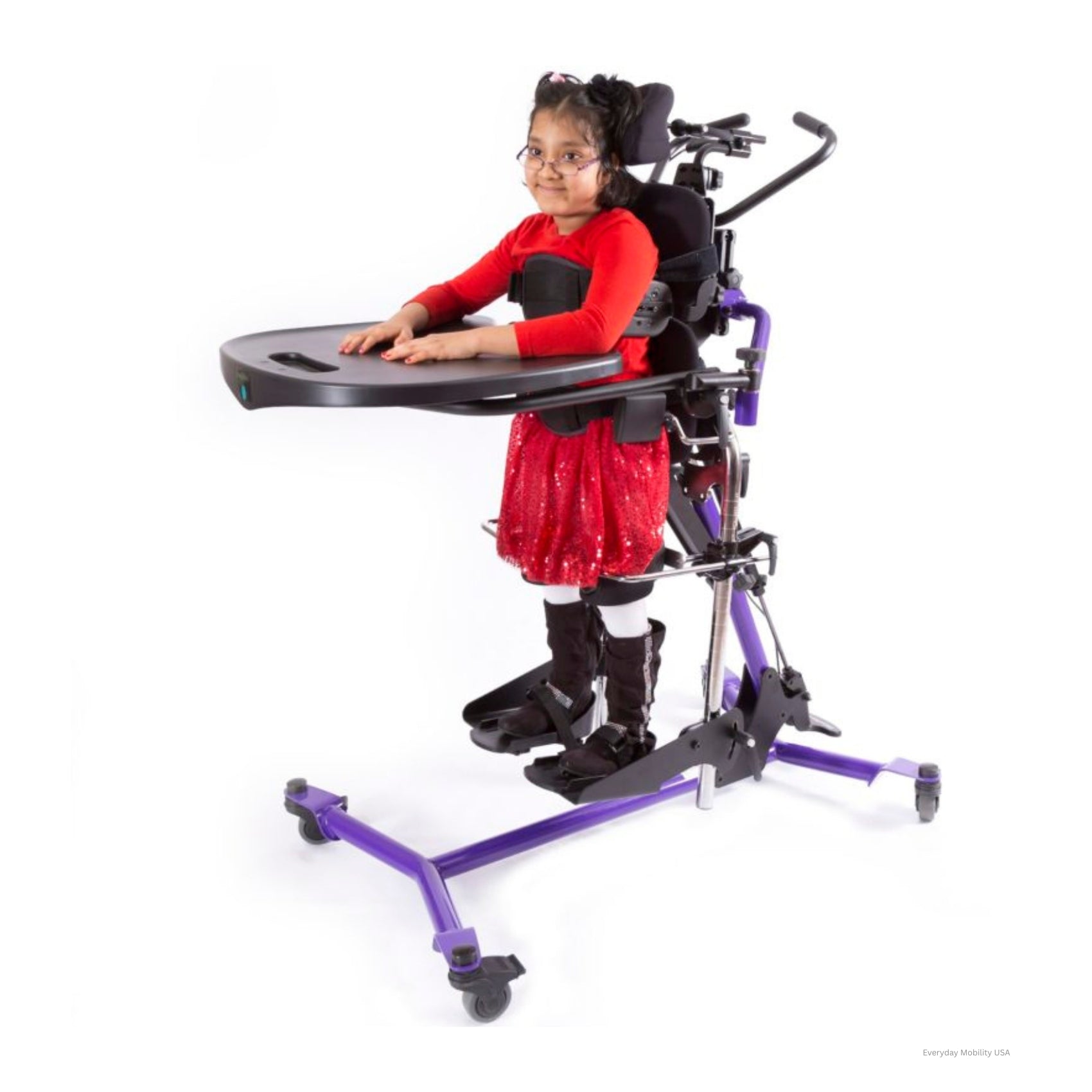

A multi-adjustable swing-away tray can pivot to either side while remaining attached to the unit, or it can be removed completely. When swung away but still attached, it remains close and within reach once a transfer has been completed. The transfer height of the Zing Supine Size 2 is a comfortable 31 inches from the floor surface.
With more than 75 support and positioning components/accessories, the Zing Supine Size 2 can be configured from a simpler standing setup to a more involved pediatric positioning system for home, school, and clinical use.
Specifications
- Height Range: 32” to 60” / 82 to 152 cm
- User Weight Limit: 154 lbs. / 70 kg
- Transfer Height (Horizontal Position): 31” / 79 cm
- Center of Hip to Footplate Range, Maximum: 34” / 86 cm (may invert footplates as necessary)
- Upper Body Support, Vertical Adjustment Range: 6” / 15 cm (7 settings)
- Approximate Equipment Weight of Basic Unit: 82 lbs / 37 kg (minimally equipped usable configuration, less most options)
- Approximate Equipment Maximum Weight, Fully Optioned: 145 lbs. / 66 kg
- Frame Footprint, Caster-to-Caster: 26.75” x 39.75” / 68 x 101 cm
- Maximum Dimensions: 28.75” x 41.75” / 73 x 106 cm
- Upholstery: Black nylon/Neoprene or Molded Urethane
- Hygienic Covers: Polyurethane Laminate ECO-PUL
- Frame Color: Green, Purple, Orange, or White
- Casters and Wheels: 3” diameter / 8 cm diameter
- Lifting Mechanisms Available: Gas Spring; Pow’r Up (Electric)
- Lift Options, if Equipped with Gas Spring: Dual Control (hand lever); Lockout Knob
- Positioning Options: Supine positioning / “Prone-Forward” positioning
- Supine / Prone Angles: Supine 0–90 degrees / Prone 0–20 degrees forward
- Positioning, Prone Model: 90 (vertical) to 0 (horizontal)
- Leg Abduction: Up to 30 degrees per side
Feet
- Foot Straps – Length Over Arch: 10”, 15”, 21” / 25, 38, 53 cm
- Secure Foot Straps: Available in same lengths as regular foot straps
- Footplate Options (L x W): 7.75” x 3.25”, 9.75” x 4”, 11.75” x 5” / 20 x 8 cm, 25 x 10 cm, 30 x 13 cm
- Footplate, Platform Style: 11.5” L x 16.75” W / 29 x 43 cm
- Multi-Adjustable Footplates – Plantar/Dorsi: +/- 20 degrees
- Multi-Adjustable Footplates – Fore/Aft: +/- 0.75” / +/- 2 cm
- Multi-Adjustable Footplates Rotation: 30 degrees left/right
Knees
- One-piece Calf Pad / Leg Rest: 17.5” x 5.5” / 44 x 14 cm
- One-piece Calf Pad Strap, Fits Approximate Circumference: 28” to 38” / 71 to 97 cm
- Kneepad Depth Range (from seat plane): From tight against plane to +7” / Tight to +18 cm
- Kneepad Options, Inside Width: 3.25”, 4.25”, 5” / 8, 11, 13 cm
-
Kneepad Dimensions (Height x Outside Width):
- 3.25: 4” x 4” / 10 x 10 cm
- 4.25: 4.5” x 5” / 11 x 13 cm
- 5: 5” x 6” / 13 x 15 cm
- Multi-Adjustable Kneepads Width Range: From tight together to 17.25” outside-to-outside / Tight to 44 cm
- Multi-Adjustable Kneepads Height Range: Infinite from footplate to pelvic pad
- Calf (Behind Knee) Pad Option: 4.5”, 5.5”; Fore/Aft Adjustment from seat plane +3” / -2”
- Independent Planar Leg (Calf) Support Tilt Table (TT) Pads: 9” H x 7.5” W; 12” H x 7.5” W; 15” H x 7.5” W
- Independent Planar Leg (Calf) Support TT Pad Strap: Fits approximate circumference 19” / 48 cm
Table / Tray
- Shadow Tray Size, Molded/Acrylic: 21” x 24” / 53 x 61 cm
- Basic Shadow Tray Height Range, Referenced from Hip Pivot: +4” to +7” / +10 to +18 cm
- Basic Shadow Tray Fore/Aft Range: 0.5” to 12.5” / 1 to 32 cm
- Note: Form-to-Fit Upper Body Supports, Lateral Configuration, and Tray Elbow Pads may reduce tray ranges or introduce interferences. A demo or fitting is always recommended when specifying a highly configured product.
- Swing Away Tray Height Range, Referenced from Hip Pivot: +4” to +7” / +10 to +18 cm
- Swing Away Tray Fore/Aft Range: 4” to 16” / 10 to 41 cm
- Swing Away Tray Angle Adjust Range: -90 to +90 Degrees
- Chest Pad, Tray Mounted: 3” H x 8” W / 8 x 20 cm
- Elbow (Cutout) Tray Pads – Inside Width: 9.25”, 11”, 13” / 23, 28, 33 cm
Upholstery / Positioning Options / Specs
Hip Supports
- Hip Support Pad Size: 4.5” x 4” / 11 x 10 cm
- Hip Supports Width Range: 7” to 13”; 12” to 18” / 18 to 33 cm; 30 to 46 cm
- Hip Support, TT, Width Range: 10” to 16” / 25 to 41 cm
Lateral Supports
- Lateral Support Pad Size: 4” x 6” / 10 x 15 cm
-
Lateral Supports Width Range, Supine & MPS:
- 11” wide upper body pad: 7” to 11”; 10” to 14”
- 13” wide upper body pad: 9” to 13”; 12” to 16”
-
Lateral Supports w/ Elbow Stops and/or Arm Rests, Supine and MPS Only:
- w/ 11” Wide Pad: 10” to 17” / 25 to 43 cm
- w/ 13” Wide Pad: 12” to 19” / 30 to 48 cm
- Lateral Supports, TT, Width Range: 10” to 16” / 25 to 41 cm
-
Lateral Supports, Prone, Width Range:
- 7” wide upper body pads: 7 to 12” / 18 to 30 cm
- 9” wide upper body pads: 9 to 14” / 23 to 36 cm
- Lateral Supports Height Range: 4”; 8” by swapping L/R / 10 cm; 20 cm
- Lateral Supports Fore/Aft Range: 1” / 3 cm
Trunk and Torso Pads
- Pelvic Support, Planar and Form-to-Fit (Supine / MPS): 10” H x 11” W; 10” H x 13” W
- Main Support Pad, TT, Planar: 19” H x 16” W; 22” W x 16” W; 25” W x 16” W
- Upper Body Support, Planar and Form-to-Fit (Supine / MPS): 8” H x 11” W; 8” H x 13” W
- Prone Pelvic Anterior Support, Planar: 10” H x 11” W; 10” H x 13” W
- Prone Pelvic Anterior Support, Form-to-Fit: 10” H x 11” W; 10” H x 13” W
- Prone Upper Body Anterior Support, Planar/Form-to-Fit: 5” H x 7” W; 5” H x 9” W; 7” H x 7” W; 7” H x 9” W; 5” H x 12” W; 7” H x 12” W; 10” H x 13” W
- Positioning/Chest Strap (Pad Size): 6” x 10” / 15 x 25 cm
Positioning Strap and Chest Strap Options
- PA3011 / A3011: 29 in / 74 cm
- PT30066 / T30066: 35 in / 89 cm
- PA5610 / A3011: 29 in / 74 cm
- PB5542 / T30066: 35 in / 89 cm
- PA3062 / A3062: 45 in / 114 cm
- PB3052 / B3052: 57 in / 145 cm
- PB5592 / A3062: 45 in / 114 cm
- PB5594 / B3052: 57 in / 145 cm
- PB5596 / A3062: 45 in / 114 cm
- PB5598 / B3052: 57 in / 145 cm
- Chest Vest – X-Style: 11” L x 9.5” W / 28 x 24 cm
- Chest Vest – X-Style: 14.5” L x 10.5” W / 37 x 27 cm
- Y Style Vest: 17.5” L x 11.5” W / 44 x 29 cm
- Y Style Vest: 20.5” L x 12.5” W / 52 x 32 cm
Posterior Head Support
- Head Support Height Range: 1” to 10” / 2.5 to 25 cm
- Head Support Depth Range: -3.5” to +1” / -9 to +2.5 cm
- Head Support Options: 5” H x 8” W; 6” H x 10” W; 7” H x 14” W
- Form-to-Fit Head Support: Height 5”; width variable up to approximately 10”
- TT Planar Head Support: 9” H x 10” W / 23 x 25 cm
Anterior Head Support (Face Prompt)
- Prone Model Only: 2 pads
- Pad Size: 3 W x 9” H / 8 x 23 cm
Funding
Funding Resources (Zing Size 2)
- Zing Size 2 Sample LMN (Editable .DOCX)
- Zing Size 2 Sample LMN (PDF Reference)
- Zing Manufacturer Funding Guide
- Write an LMN (JustifyIt)
Insurance coverage may be available for qualifying individuals. Funding typically requires clinical evaluation and supporting documentation from the prescribing provider and therapist.
Catalogs
Manuals
Order Forms
Reference Only: These order forms are provided for configuration review and planning purposes only.
Resources
Videos
Warranty
Warranty
Altimate Medical, Inc. extends this limited warranty only to the original purchaser/customer (or supplier non-consumer who does not buy or resell). EasyStand and Zing products are warranted against defects in materials and workmanship as outlined below.
Warranty Coverage
- Steel Frames – 5-year warranty
- Hydraulic Actuator – 2-year warranty
- Gas Spring – 2-year warranty
- Upholstered Components, Plastic Pads, Rubber Parts, Painted Surfaces, Bearings, and Other Parts Not Specifically Identified Above – 90-day warranty
Warranty on Electrical Option Components
- Actuator & Hand Pendant – 2-year warranty
- Control Box & Battery – 90 days
- Battery Charger – 90 days
Warranty Period
The warranty period begins on the original ship date from Altimate Medical. Any product proven to Altimate Medical’s satisfaction to be defective and within the warranty period will be repaired or replaced at Altimate Medical’s option.
Warranty Limitations
Altimate Medical’s sole obligation and your exclusive remedy under this warranty are limited to repair and/or replacement. This warranty does not include any labor charges incurred in replacement parts installation. Freight charges to and from the factory are the responsibility of the consumer or seller. Return freight charges will be prepaid by Altimate Medical for warranty service when requested by Altimate Medical before return. To receive satisfactory warranty service, please write directly to Altimate Medical at the address below. Do not return products without prior authorization.
This warranty does not apply to products subjected to negligence, abuse, misuse, improper operation, improper maintenance, improper storage, or damages beyond normal use. It also does not apply to products modified without Altimate Medical’s written consent, including modifications through the use of unauthorized parts or attachments, or products damaged by repairs using parts not manufactured by Altimate Medical or not complying with original equipment specifications.
Disclaimer
The foregoing warranty is exclusive and in lieu of all other express warranties. Altimate Medical shall not be liable for any consequential or incidental damages whatsoever.
Additional Information
Altimate Medical maintains a policy of continual product improvement and reserves the right to change features, specifications, and prices without prior notice. Check with Altimate Medical for the latest product information.
