EasyStand

Zing Supine Size 1

$1,473.00

Sale Sold out

Shipping calculated at checkout.

Package PA5522 Zing Supine Base Size 1

Description

Fits Individuals from Infancy – 44″
Weight Limit: Up to 70 lbs.

The Zing Supine Size 1 is a single position stander but has all the features and positioning and support components available on the Zing MPS, minus prone positioning. The Zing Supine provides positioning opportunities from flat-to-load supine to vertical. It is also one of the few standers that provides the option of up to 30 degrees of independent leg abduction.

E0638: Standing frame/table system, one position (e.g. upright, supine or prone stander), any size including pediatric, with or without wheels

The Zing Supine provides positioning opportunities from flat-to-load supine to vertical. Tool-free adjustments and/or removal of support and positioning components adds to the ease of use.

30 degrees of independent leg abduction (60 degrees bilaterally)
A simple knob allows the entire leg to abduct up to 30 degrees, no need to re-adjust the foot plates or knee pads.

Unique Lift Mechanisms
A gas spring lift lockout is available to prevent any inadvertent position changes which can be useful if other children are present during standing sessions. The Dual Control enables position changes by foot pedal or hand control.

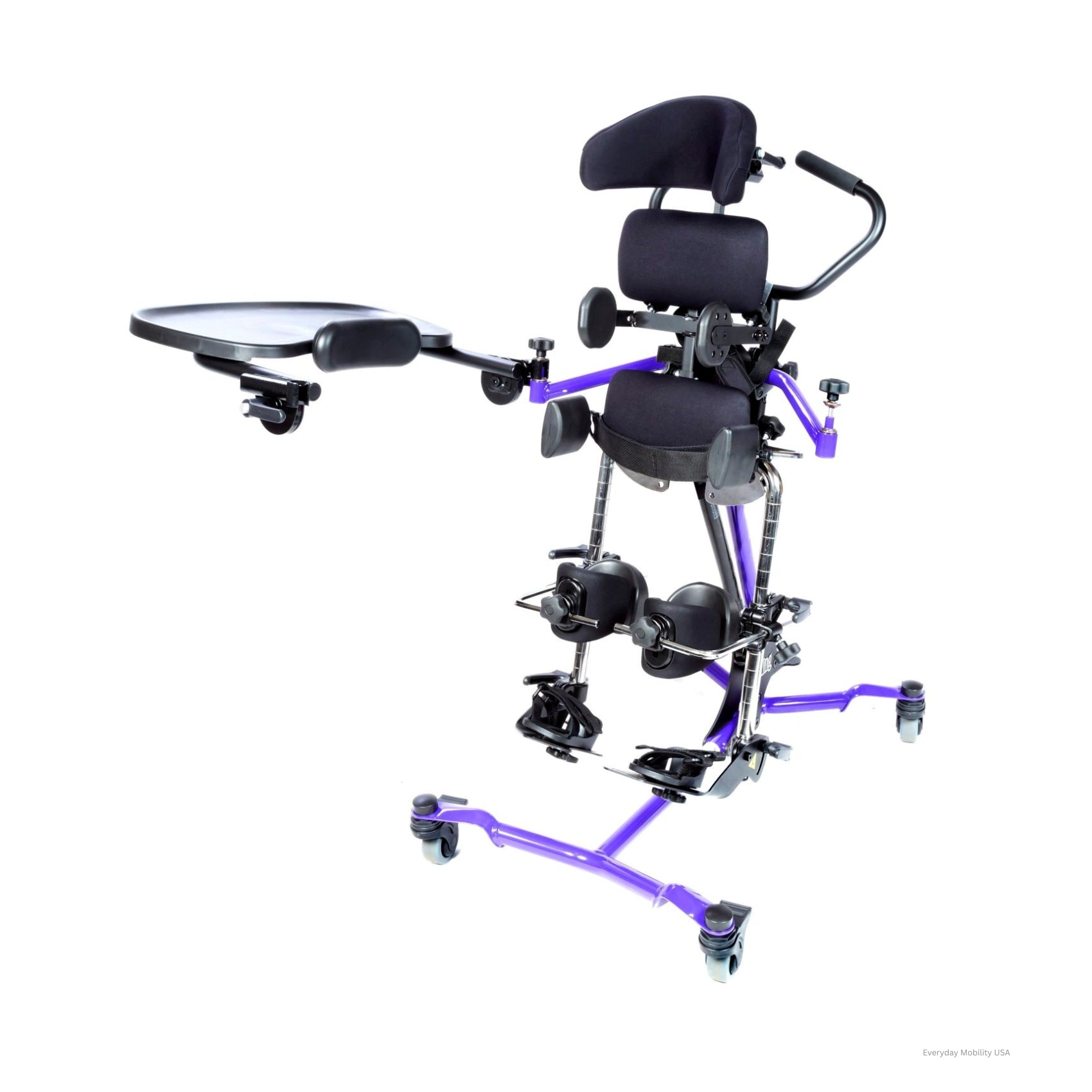

Swing-away Tray
Multi-adjustable tray can swing either direction while remaining attached to the unit or it can be removed completely. This tray, when swung away but attached on one side of the stander, is close and well within reach once a transfer has been completed. The transfer height of the Zing Supine Size 2 is a comfortable 31″ from the floor surface.

Remarkably Modular
With 75 support and positioning components/accessories, it can be configured as a simple stander or fit a child with more complex needs. The support and positioning components available (independent and multi-adjustable foot plates, knee pads, calf pads and floating hip guides) make the Zing Supine one of the few standers that can accommodate contractures on one or both sides.

Specs

Height Range: Up to 44″ / Up to 112 cm
Weight Limit: 70 lbs / 32 kg
Transfer Height (Horizontal Position): 32″ / 81 cm
Center of Pelvic Support to Footplate Range: 7″–22″ / 18–56 cm (footplates may be inverted as needed)
Upper Body Support Height Range: 4″ / 10 cm
Kneepad Depth Range: 5″ / 13 cm
Kneepad Inside Width Options: 2.5″, 3.25″, 4.25″, 5″ / 6, 8, 11, 13 cm
Kneepad Dimensions:
- 2.5″: 3.5″ x 4″ / 9 x 10 cm
- 3.25″: 4″ x 4″ / 10 x 10 cm
- 4.25″: 4.5″ x 5″ / 11 x 13 cm
- 5″: 5″ x 6″ / 13 x 15 cm
Multi-Adjustable Kneepad Width Range (center-to-center):
- 2.5″ pads: 4″–9″ / 10–23 cm
- 3.25″ pads: 4.5″–9″ / 11–23 cm
- 4.25″ pads: 5″–8″ / 13–20 cm
- 5″ pads: 6″–7″ / 15–18 cm
Multi-Adjustable Kneepad Height Range: ±0.75″ / 2 cm
Weight of Basic Unit: 55 lbs / 25 kg
Frame Footprint (caster-to-caster): 20″ x 28″ / 51 x 71 cm
Maximum Dimensions: 21.5″ x 29.5″ / 55 x 75 cm
Upholstery: Black nylon/neoprene or molded urethane
Hygienic Covers: Polyurethane Laminate ECO-PUL
Frame Color Options: Green, Purple, Orange, or White
Casters & Wheels: 3″ diameter / 8 cm
Lifting Mechanism Available: Gas spring
Lift Options: Dual control (hand lever), lockout knob
Positioning Options:
- Supine: 0–90°
- Prone-Forward: 0–20°
- Vertical Model: 90° fixed position
Leg Abduction: 30° per side
Foot Straps – Extra Small (length over arch): 8″ or 10″ / 20 or 25 cm
Secure Foot Straps: Available in same lengths as standard foot straps
Footplate Options (L x W):
- 6″ x 3″ / 15 x 8 cm
- 7.75″ x 3.25″ / 20 x 9 cm
- 9.75″ x 4″ / 25 x 11 cm
- Platform Style: 8″ x 12″ / 20 x 30 cm
Multi-Adjustable Footplates: Plantar/Dorsi ±20°, Fore/Aft ±0.75″ (±2 cm), Rotation ±30°
Single Calf Pad / Leg Rest: 4″ x 13.5″ / 10 x 34 cm
Single Calf Pad Strap (fits circumference): 24″ / 61 cm
Calf (Behind Knee) Pad Options: 3.5″ x 3.5″ or 4.5″ x 4.5″ with fore/aft adjustment −1″ to +4″ / −2.5 to +10 cm
Independent Planar Leg (TT) Pad Sizes: 4″ x 6″, 6″ x 6″, 8″ x 6″ / 10x15, 15x15, 20x15 cm
TT Pad Strap (fits circumference): Up to 15″ / 38 cm
Shadow Tray Size (Molded/Acrylic): 11″ x 19″ / 28 x 48 cm
Shadow Tray Height Range: 3″ / 8 cm
Shadow Tray Fore/Aft Range: 0″–10″ / 0–25 cm
Swing-Away Tray Size: 11″ x 19″ / 28 x 48 cm
Swing-Away Tray Height Range: 3″ / 8 cm
Swing-Away Tray Fore/Aft Range: 4″–9″ / 10–23 cm
Swing-Away Tray Angle Adjustment: +40° to −90°
Hip Support Pad Size: 3.5″ x 3.5″ / 9 x 9 cm
Hip Supports Width Range: 6″–10″ / 15–25 cm
Lateral Support Pad Size: 3.5″ x 3.5″ / 9 x 9 cm
Lateral Supports Width Range: 7″–11″ / 18–28 cm
Lateral Supports Height Range: 3.5″ / 9 cm
Lateral Supports Fore/Aft Range: 1″ / 3 cm
Pelvic Support Options: Planar or Form-to-Fit (posterior and anterior)
Upper Body Support Options: Planar or Form-to-Fit
Chest Pad: 3″H x 8″W / 8 x 20 cm
Chest Strap Pad Size: 5″H x 8″W / 13 x 20 cm
Chest Strap Fit (approx.): Up to 24″ / 61 cm
Chest Vests: X-Style available in multiple sizes
Posterior Head Support Height Range: 8″ / 20 cm
Posterior Head Support Depth Range: −2.5″ to +1.5″ / −6 to +4 cm
Head Support Options: Extra-Small, Small, Flat, Form-to-Fit, and TT Planar
Anterior Head Support (Prone/Vertical): Face aperture pads, 3″ x 9″ / 8 x 23 cm
Configurations Available: Supine, MPS (Multi-Positional), TT (Tilt Table), Prone, Vertical

Funding

Funding Resources (Zing Size 1)

Insurance coverage may be available for qualifying individuals. Funding typically requires clinical evaluation and supporting documentation from the prescribing provider and therapist.
