Zing Prone Size 1 Package Deals
Zing Prone Size 1 Package Deals
No reviews
Regular price
$6,695.00
Regular price
Sale price
$6,695.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description

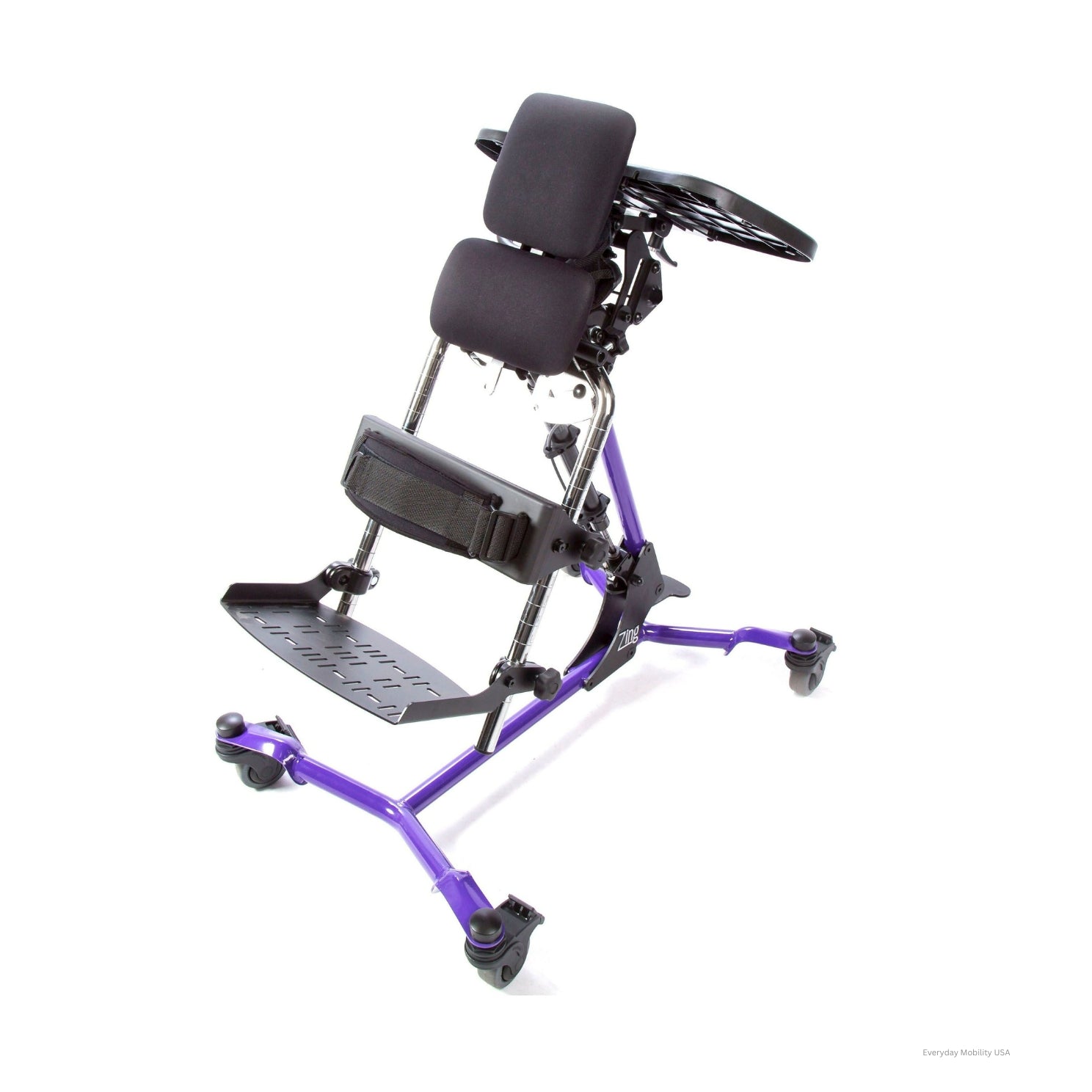

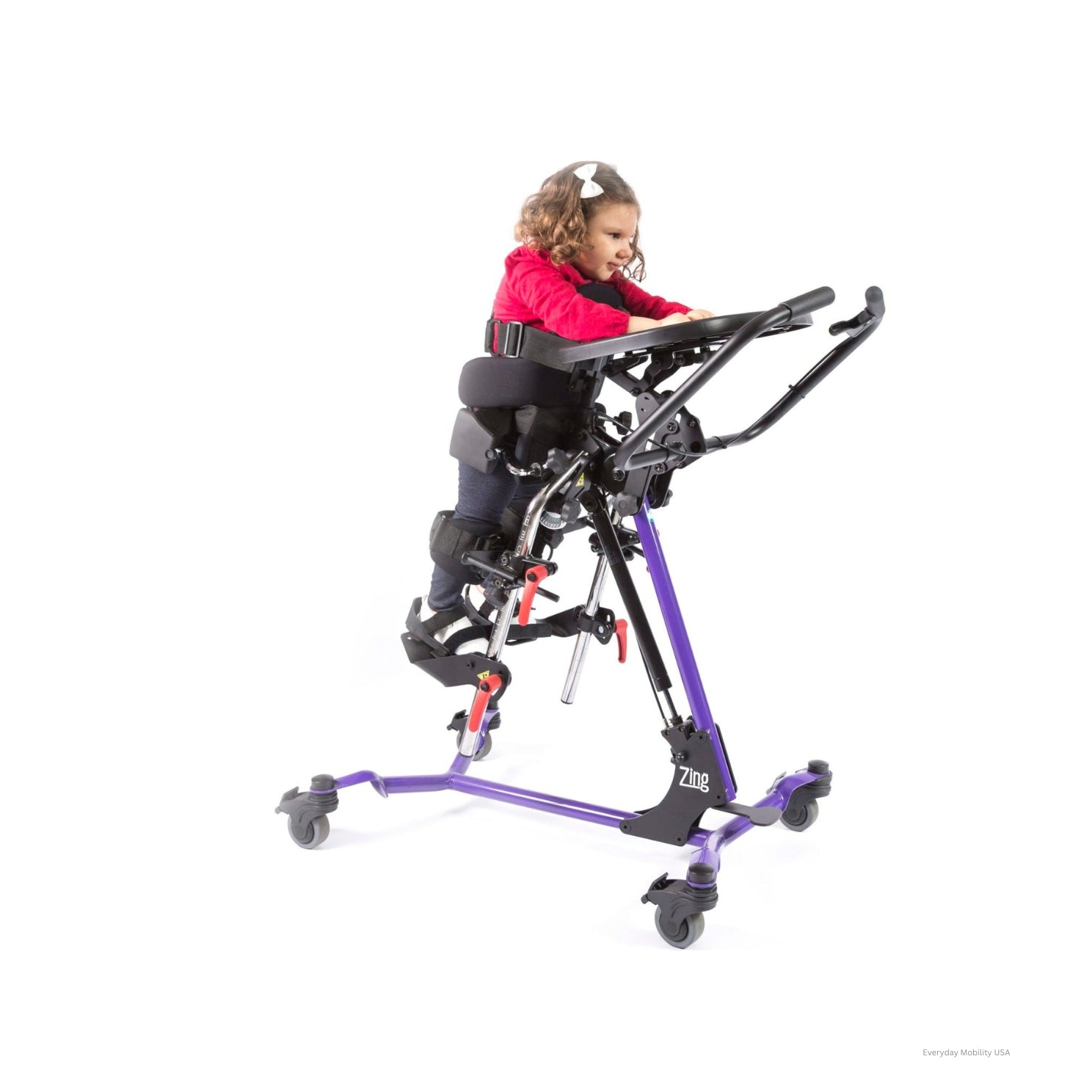

The Zing Prone Size 1 (PA5522) is a pediatric prone standing frame designed for individuals from infancy to 44 inches tall and up to 70 lbs. It provides supportive prone standing in a simpler single-position design while still offering features that help make transfers and daily use easier for caregivers.
The Zing Prone is one of the few prone standers to offer a flat-to-load transfer position at a comfortable height of 32 inches. This design helps simplify setup and transfers by allowing the user to be positioned more easily before moving into standing.
With prone positioning from 0 to 90 degrees, the Zing Prone Size 1 supports a wide range of standing angles to match individual tolerance and positioning goals. Its pediatric design makes it well suited for home, school, and clinical environments where prone standing is part of a child’s daily support program.
Specifications
- Height Range: Up to 44″ / Up to 112 cm
- Weight Limit: 70 lbs / 32 kg
- Transfer Height (Horizontal Position): 32″ / 81 cm
- Center of Pelvic Support to Footplate Range: 7″–22″ / 18–56 cm (footplates may be inverted as needed)
- Upper Body Support Height Range: 4″ / 10 cm
- Kneepad Depth Range: 5″ / 13 cm
- Kneepad Inside Width Options: 2.5″, 3.25″, 4.25″, 5″ / 6, 8, 11, 13 cm
-
Kneepad Dimensions:
- 2.5″: 3.5″ x 4″ / 9 x 10 cm
- 3.25″: 4″ x 4″ / 10 x 10 cm
- 4.25″: 4.5″ x 5″ / 11 x 13 cm
- 5″: 5″ x 6″ / 13 x 15 cm
-
Multi-Adjustable Kneepad Width Range (center-to-center):
- 2.5″ pads: 4″–9″ / 10–23 cm
- 3.25″ pads: 4.5″–9″ / 11–23 cm
- 4.25″ pads: 5″–8″ / 13–20 cm
- 5″ pads: 6″–7″ / 15–18 cm
- Multi-Adjustable Kneepad Height Range: ±0.75″ / 2 cm
- Weight of Basic Unit: 55 lbs / 25 kg
- Frame Footprint (caster-to-caster): 20″ x 28″ / 51 x 71 cm
- Maximum Dimensions: 21.5″ x 29.5″ / 55 x 75 cm
- Upholstery: Black nylon/neoprene or molded urethane
- Hygienic Covers: Polyurethane Laminate ECO-PUL
- Frame Color Options: Green, Purple, Orange, or White
- Casters & Wheels: 3″ diameter / 8 cm
- Lifting Mechanism Available: Gas spring
- Lift Options: Dual control (hand lever), lockout knob
-
Positioning Options:
- Supine: 0–90°
- Prone-Forward: 0–20°
- Vertical Model: 90° fixed position
- Leg Abduction: 30° per side
- Foot Straps – Extra Small (length over arch): 8″ or 10″ / 20 or 25 cm
- Secure Foot Straps: Available in same lengths as standard foot straps
-
Footplate Options (L x W):
- 6″ x 3″ / 15 x 8 cm
- 7.75″ x 3.25″ / 20 x 9 cm
- 9.75″ x 4″ / 25 x 11 cm
- Platform Style: 8″ x 12″ / 20 x 30 cm
- Multi-Adjustable Footplates: Plantar/Dorsi ±20°, Fore/Aft ±0.75″ (±2 cm), Rotation ±30°
- Single Calf Pad / Leg Rest: 4″ x 13.5″ / 10 x 34 cm
- Single Calf Pad Strap (fits circumference): 24″ / 61 cm
- Calf (Behind Knee) Pad Options: 3.5″ x 3.5″ or 4.5″ x 4.5″ with fore/aft adjustment −1″ to +4″ / −2.5 to +10 cm
- Independent Planar Leg (TT) Pad Sizes: 4″ x 6″, 6″ x 6″, 8″ x 6″ / 10x15, 15x15, 20x15 cm
- TT Pad Strap (fits circumference): Up to 15″ / 38 cm
- Shadow Tray Size (Molded/Acrylic): 11″ x 19″ / 28 x 48 cm
- Shadow Tray Height Range: 3″ / 8 cm
- Shadow Tray Fore/Aft Range: 0″–10″ / 0–25 cm
- Swing-Away Tray Size: 11″ x 19″ / 28 x 48 cm
- Swing-Away Tray Height Range: 3″ / 8 cm
- Swing-Away Tray Fore/Aft Range: 4″–9″ / 10–23 cm
- Swing-Away Tray Angle Adjustment: +40° to −90°
- Hip Support Pad Size: 3.5″ x 3.5″ / 9 x 9 cm
- Hip Supports Width Range: 6″–10″ / 15–25 cm
- Lateral Support Pad Size: 3.5″ x 3.5″ / 9 x 9 cm
- Lateral Supports Width Range: 4″–8″ or 7″–11″ / 10–20 or 18–28 cm
- Lateral Supports Height Range: 3.5″ / 9 cm
- Lateral Supports Fore/Aft Range: 1″ / 3 cm
- Pelvic Support Options: Planar or Form-to-Fit (posterior and anterior), multiple sizes
- Upper Body Support Options: Planar or Form-to-Fit, multiple sizes
- Chest Pad: 3″H x 8″W / 8 x 20 cm
- Chest Strap Pad Size: 5″H x 8″W / 13 x 20 cm
- Chest Strap Fit (approx.): Up to 24″ / 61 cm
- Chest Vests: X-Style available in multiple sizes
- Posterior Head Support Height Range: 8″ / 20 cm
- Posterior Head Support Depth Range: −2.5″ to +1.5″ / −6 to +4 cm
- Anterior Head Support (Prone/Vertical): Face aperture pads, 3″ x 9″ / 8 x 23 cm
- Configurations Available: Supine, MPS (Multi-Positional), TT (Tilt Table), Prone, Vertical
Funding
Funding Resources (Zing Size 1)
- Zing Size 1 Sample LMN (Editable .DOCX)
- Zing Size 1 Sample LMN (PDF Reference)
- Zing Manufacturer Funding Guide
- Write an LMN (JustifyIt)
Insurance coverage may be available for qualifying individuals. Funding typically requires clinical evaluation and supporting documentation from the prescribing provider and therapist.
Catalogs
Manuals
Order Forms
Reference Only: These order forms are provided for configuration review and planning purposes only.
Resources
Videos
Warranty
Warranty
Altimate Medical, Inc. extends this limited warranty only to the original purchaser/customer (or supplier non-consumer who does not buy or resell). EasyStand and Zing products are warranted against defects in materials and workmanship as outlined below.
Warranty Coverage
- Steel Frames – 5-year warranty
- Hydraulic Actuator – 2-year warranty
- Gas Spring – 2-year warranty
- Upholstered Components, Plastic Pads, Rubber Parts, Painted Surfaces, Bearings, and Other Parts Not Specifically Identified Above – 90-day warranty
Warranty on Electrical Option Components
- Actuator & Hand Pendant – 2-year warranty
- Control Box & Battery – 90 days
- Battery Charger – 90 days
Warranty Period
The warranty period begins on the original ship date from Altimate Medical. Any product proven to Altimate Medical’s satisfaction to be defective and within the warranty period will be repaired or replaced at Altimate Medical’s option.
Warranty Limitations
Altimate Medical’s sole obligation and your exclusive remedy under this warranty are limited to repair and/or replacement. This warranty does not include any labor charges incurred in replacement parts installation. Freight charges to and from the factory are the responsibility of the consumer or seller. Return freight charges will be prepaid by Altimate Medical for warranty service when requested by Altimate Medical before return. To receive satisfactory warranty service, please write directly to Altimate Medical at the address below. Do not return products without prior authorization.
This warranty does not apply to products subjected to negligence, abuse, misuse, improper operation, improper maintenance, improper storage, or damages beyond normal use. It also does not apply to products modified without Altimate Medical’s written consent, including modifications through the use of unauthorized parts or attachments, or products damaged by repairs using parts not manufactured by Altimate Medical or not complying with original equipment specifications.
Disclaimer
The foregoing warranty is exclusive and in lieu of all other express warranties. Altimate Medical shall not be liable for any consequential or incidental damages whatsoever.
Additional Information
Altimate Medical maintains a policy of continual product improvement and reserves the right to change features, specifications, and prices without prior notice. Check with Altimate Medical for the latest product information.
