Zing MPS TT Size 2 Package Deals

Description

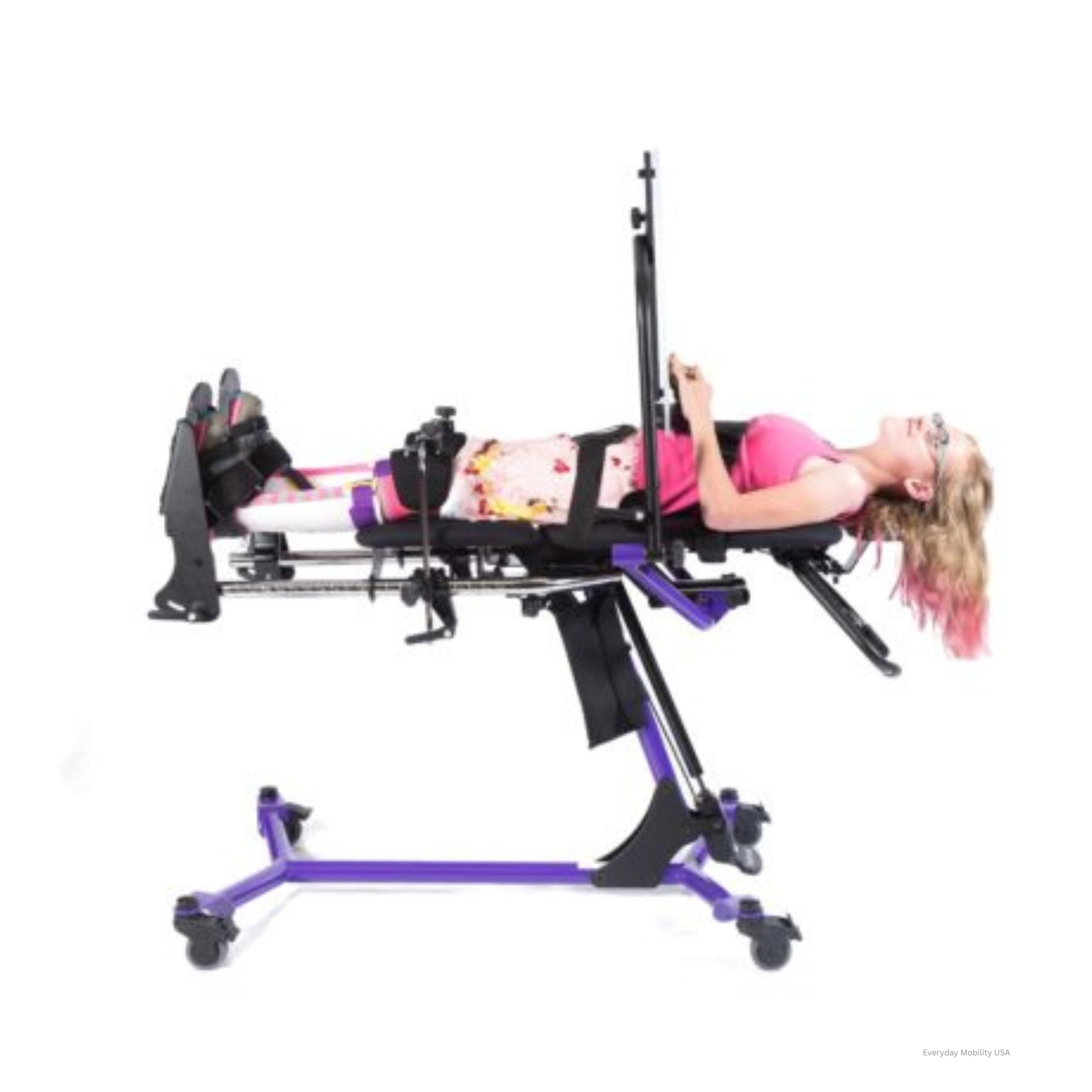

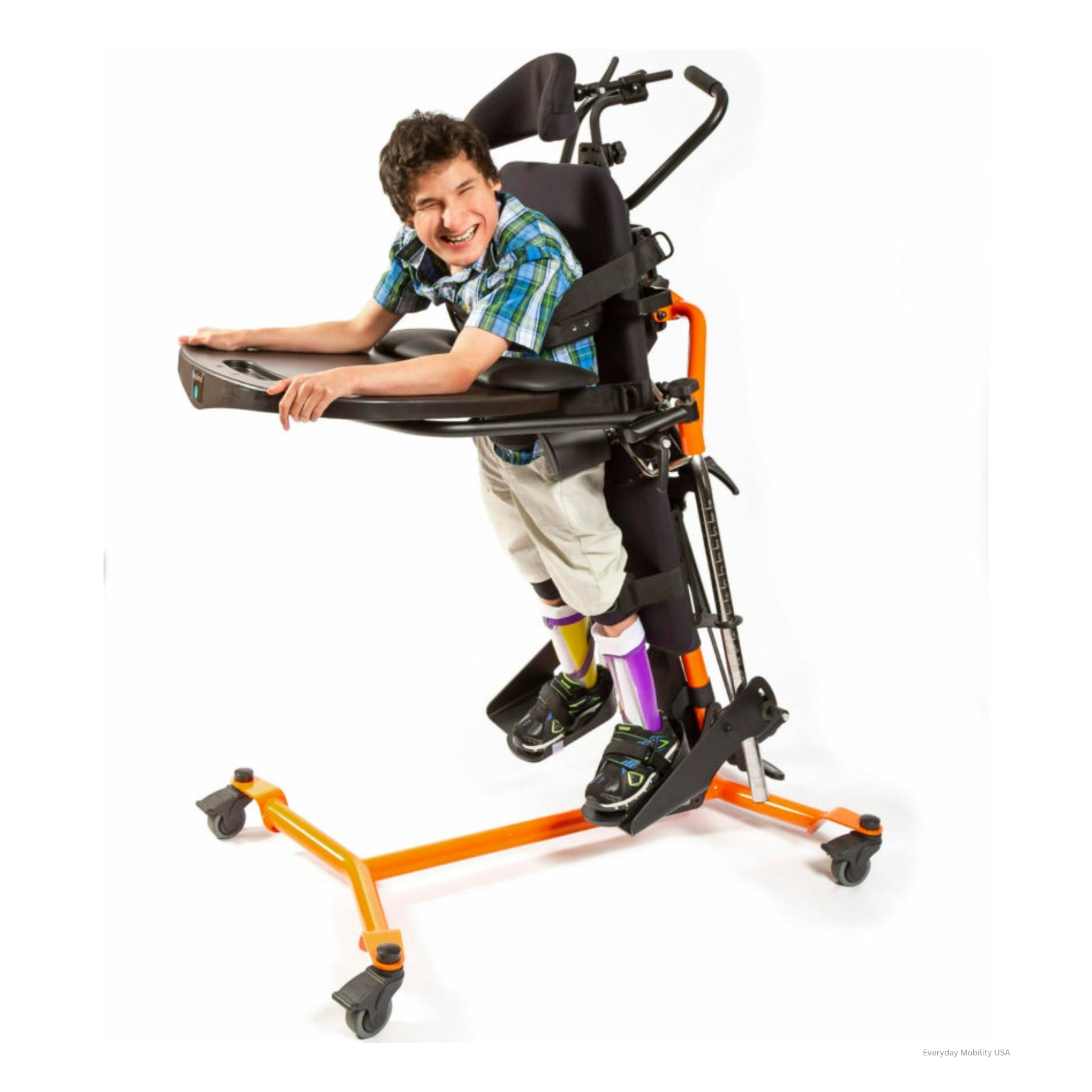

The Zing MPS TT Size 2 with Gas Spring Lift is a pediatric multi-position standing frame designed for individuals from 32 to 60 inches tall and up to 154 lbs. It supports standing in supine, upright, and prone positions without requiring the user to be transferred in and out of the stander when changing positions.

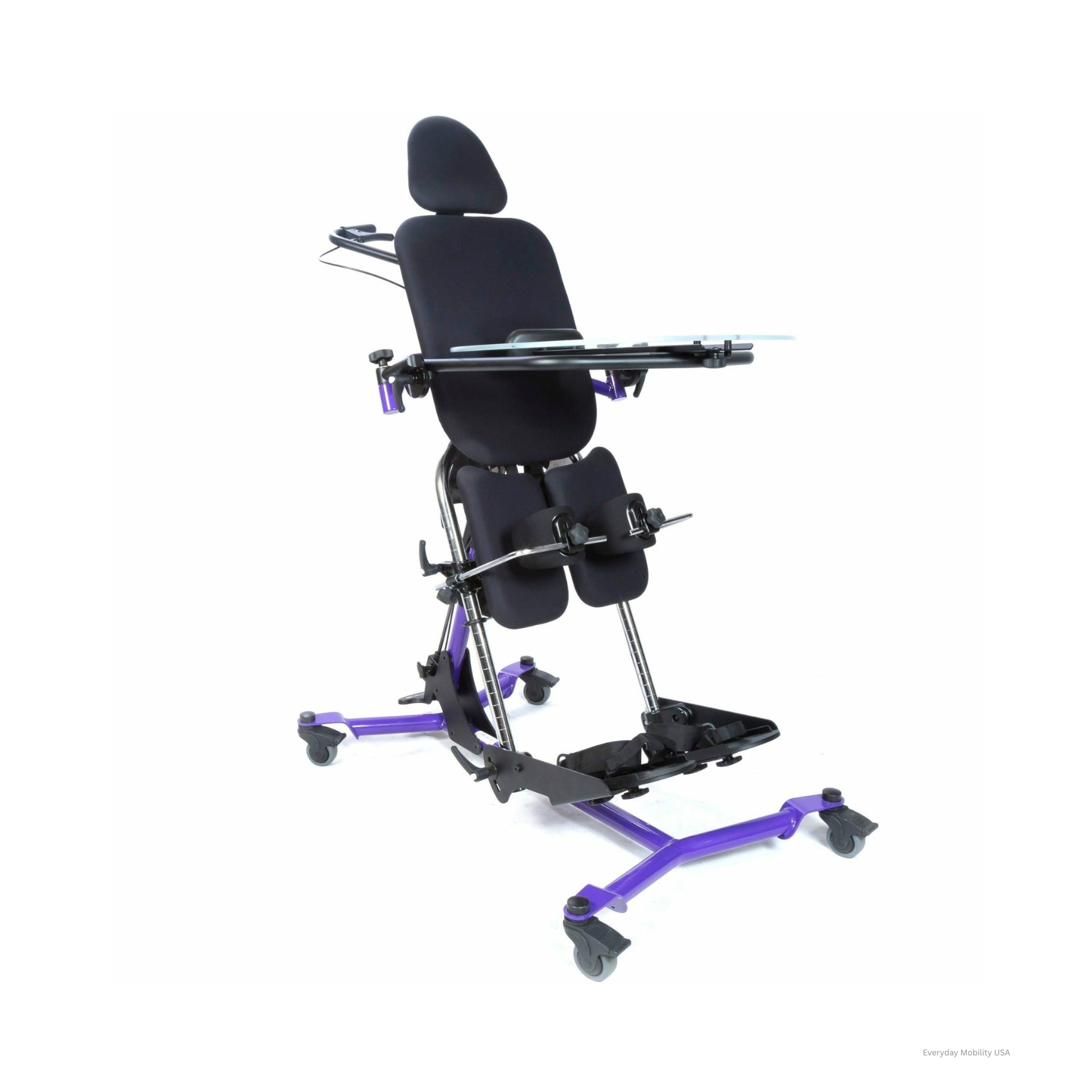

The Zing MPS TT combines the multi-position standing capabilities of the Zing MPS with a tilt-table style upper body support system. Its longer, wider single support pad provides combined pelvic and back support, and padded strapping is available for users who do not require maximum positioning support. When more targeted support is needed, many of the same positioning components used on the Zing MPS can also be added to the MPS TT.

For users who need more advanced positioning, the Zing MPS TT offers up to 30 degrees of independent leg abduction per side, allowing the entire leg to abduct without requiring separate readjustment of the foot plates or knee pads. Independent and multi-adjustable foot plates, knee pads, calf pads, and floating hip guides also help accommodate a wide range of positioning needs, including unilateral or bilateral contractures.

The base unit includes a prone position lockout to help prevent unintended movement past vertical, while the gas spring lift supports smoother assisted positioning and controlled adjustments during standing sessions. Dual Control allows caregivers to adjust positions by either foot pedal or hand control.

A multi-adjustable swing-away tray can pivot to either side while remaining attached to the unit, or it can be removed completely for transfers and access. With a transfer height of 31 inches and a highly modular design that supports more than 70 accessories and positioning components, the Zing MPS TT Size 2 can be configured from a simpler standing setup to a more involved pediatric positioning system.

Specifications

Basic Unit

• Height Range: 32” to 60” (82 to 152 cm)
• User Weight Limit: 154 lbs. (70 kg)
• Transfer Height (Horizontal Position): 31” (79 cm)
• Center of Hip to Footplate Range (Maximum): 34” (86 cm) — may invert footplates as necessary
• Upper Body Support Vertical Adjustment Range: 6” (15 cm) — 7 settings
• Approx. Equipment Weight (Minimally Equipped Usable): 82 lbs (37 kg)
• Approx. Max Weight (Fully Optioned): 145 lbs. (66 kg)
• Frame Footprint (Caster-to-Caster): 26.75” x 39.75” (68 x 101 cm)
• Maximum Dimensions: 28.75” x 41.75” (73 x 106 cm)
• Upholstery: Black nylon/Neoprene or Molded Urethane
• Hygienic Covers: Polyurethane Laminate ECO-PUL — multiple patterns available; see literature or website
• Frame Color: Green, Purple, Orange, or White (Medium Gloss Polyester Powder Coat)
• Casters and Wheels: 3’’ diameter (8 cm)

Lifting Mechanisms Available

• Gas Spring
• Pow’r Up (Electric)

Lift Options (if Equipped with Gas Spring)

• Dual Control (hand lever)
• Lockout Knob

Options and Accessories

• Supine Positioning / “Prone-Forward” Positioning (Supine, MPS, TT): Supine 0–90 degrees / Prone 0–20 degrees forward
• Positioning, Prone Model: 90 (vertical) to 0 (horizontal)
• Leg Abduction: Up to 30 degrees per side

Feet

• Foot Straps (Length Over Arch): 10” (25 cm), 15” (38 cm), 21” (53 cm)
• Secure Foot Straps: Available in same lengths as regular foot straps
• Footplate Options (L x W): 7.75” x 3.25” (20 x 8 cm), 9.75” x 4” (25 x 10 cm), 11.75” x 5” (30 x 13 cm)
• Footplate, Platform Style: 11.5” L x 16.75” W (29 x 43 cm)
• Multi-Adjustable Footplates – Plantar/Dorsi: +/- 20 degrees
• Multi-Adjustable Footplates – Fore/Aft: +/- 0.75” (+/- 2 cm)
• Multi-Adjustable Footplates Rotation: 30 degrees left/right

Knees

• One-piece Calf Pad / Leg Rest: 17.5” x 5.5” (44 x 14 cm)
• One-piece Calf Pad Strap (Fits Approx. Circumference): 28” to 38” (71 to 97 cm)
• Kneepad Depth Range (from Seat Plane): From tight against plane to +7” (Tight to +18 cm)
• Kneepad Options, Inside Width: 3.25” (8 cm), 4.25” (11 cm), 5” (13 cm)
• Kneepad Dimensions (Height x Outside Width):
  • 3.25: 4” x 4” (10 x 10 cm)
  • 4.25: 4.5” x 5” (11 x 13 cm)
  • 5: 5” x 6” (13 x 15 cm)
• Multi-Adjustable Kneepads Width Range: Tight together to 17.25” outside-to-outside (Tight to 44 cm)
• Multi-Adjustable Kneepads Height Range: Infinite from footplate to pelvic pad
• Calf (Behind Knee) Pad Option: 4.5” and 5.5”; Fore/Aft Adjustment from seat plane: +3” / -2” (+8 cm / -5 cm)
• Independent Planar Leg (Calf) Support TT Pads: 3 sizes — 9” H x 7.5” W, 12” H x 7.5” W, 15” H x 7.5” W (23 x 19 cm, 30 x 19 cm, 38 x 19 cm)
• Independent Planar Leg (Calf) Support TT Pad Strap (Fits Approx. Circumference): 19” (48 cm)

Table / Tray

• Shadow Tray Size (Molded/Acrylic): 21” x 24” (53 x 61 cm)
• Basic Shadow Tray Height Range (from Hip Pivot): +4” to +7” (+10 to +18 cm)
• Basic Shadow Tray Fore/Aft (Posterior Pad to Chest Pad): 0.5” to 12.5” (1 to 32 cm)
• Note: Form-to-Fit Upper Body Supports, Lateral Configuration, and Tray Elbow Pads may reduce tray ranges or introduce interferences. A demo or fitting is always recommended when specifying a highly configured product.
• Swing Away Tray Height Range (from Hip Pivot): +4” to +7” (+10 to +18 cm)
• Swing Away Tray Fore/Aft (Posterior Pad to Chest Pad): 4” to 16” (10 to 41 cm)
• Swing Away Tray Angle Adjust Range: -90 to +90 Degrees
• Chest Pad, Tray Mounted: 3” H x 8” W (8 x 20 cm)
• Elbow (Cutout) Tray Pads – Inside Width: 9.25”, 11”, 13” (23 cm, 28 cm, 33 cm)

Upholstery / Positioning Options / Specs

Hip Supports

• Hip Support Pad Size: 4.5” x 4” (11 x 10 cm)
• Hip Supports Width Range (2 Sizes): 7” to 13” and 12” to 18” (18 to 33 cm and 30 to 46 cm)
• Hip Support, TT, Width Range: 10” to 16” (25 to 41 cm)

Lateral Supports

• Lateral Support Pad Size: 4” x 6” (10 to 15 cm)
• Lateral Supports Width Range, Supine & MPS (2 Sizes): Ranges vary based on pad width
  • 11” Wide Upper Body Pad: 7” to 11” and 10” to 14” (18 to 28 cm and 25 to 36 cm)
  • 13” Wide Upper Body Pad: 9” to 13” and 12” to 16” (23 to 33 cm and 30 to 41 cm)
• Lateral Supports w/ Elbow Stops and/or Arm Rests (Supine and MPS Only): Width range including optional pad holes
  • w/ 11” Wide Pad: 10” to 17” (25 to 43 cm)
  • w/ 13” Wide Pad: 12” to 19” (30 to 48 cm)
• Lateral Supports, TT, Width Range: 10” to 16” (25 to 41 cm)
• Lateral Supports, Prone, Width Range: 7 to 12” (7” wide upper body pads) and 9 to 14” (9” wide upper body pads) — (18 to 30 cm and 23 to 36 cm)
• Lateral Supports Height Range: 4” (10 cm); 8” (20 cm) by swapping L/R
• Lateral Supports Fore/Aft Range: 1” (3 cm)

Trunk and Torso Pads

• Pelvic Support (Planar and Form-to-Fit) — Supine / MPS (2 Sizes Each): 10” H x 11” W and 10” H x 13” W (25 x 28 cm and 25 x 33 cm)
• Main Support Pad, TT, Planar (3 Sizes): 19” H x 16” W, 22” W x 16” W, 25” W x 16” W (48 x 41 cm, 56 x 41 cm, 64 x 41 cm)
• Upper Body Support (Planar and Form-to-Fit) — Supine / MPS (2 Sizes Each): 8” H x 11” W and 8” W x 13” W (20 x 28 cm and 20 x 33 cm)

Prone Pelvic Anterior Support

• Planar: 10” H x 11” W and 10” H x 13” W (25 x 28 cm and 25 x 33 cm)
• Form-to-Fit: 10” H x 11” W and 10” H x 13” W (25 x 28 cm and 25 x 33 cm)

Prone Upper Body Anterior Support

• Planar / Form-to-Fit (Pad Sizes Listed): 5” H x 7” W; 5” H x 9” W; 7” H x 7” W; 7” H x 9” W; 5” H x 12” W; 7” H x 12” W; 10” H x 13” W (13 x 18 cm; 13 x 23 cm; 18 x 18 cm; 18 x 23 cm; 13 x 30 cm; 15 x 33 cm; 25 x 33 cm)

Positioning / Chest Strap (Pad Size): 6” x 10” (15 x 25 cm)

Positioning Strap and Chest Strap Options

• PA3011 (A3011): 29 in (74 cm)
• PT30066 (T30066): 35 in (89 cm)
• PA5610 (A3011): 29 in (74 cm)
• PB5542 (T30066): 35 in (89 cm)
• PA3062 (A3062): 45 in (114 cm)
• PB3052 (B3052): 57 in (145 cm)
• PB5592 (A3062): 45 in (114 cm)
• PB5594 (B3052): 57 in (145 cm)
• PB5596 (A3062): 45 in (114 cm)
• PB5598 (B3052): 57 in (145 cm)

Chest Vest – X-Style: 11” L x 9.5” W (28 x 24 cm) and 14.5” L x 10.5” W (37 x 27 cm)

Chest Vest – Y-Style Vest: 17.5” L x 11.5” W (44 x 29 cm) and 20.5” L x 12.5” W (52 x 32 cm)

Posterior Head Support

• Head Support Height Range (from Top of Upper Body Pad): 1” to 10” (2.5 to 25 cm)
• Head Support Depth Range (from Backrest): -3.5” to +1” (-9 to +2.5 cm)
• Head Support Options: 5” H x 8” W (13 x 20 cm), 6” H x 10” W (15 x 25 cm), 7” H x 14” W (18 x 36 cm)
• Form-to-Fit Head Support: Height 5”; Width variable up to approx. 10” (13 cm; 25 cm)
• TT Planar Head Support: 9” H x 10” W (23 x 25 cm)

Anterior Head Support (Face Prompt)

• Prone Model Only. 2 pads.
• Pad Size: 3” W x 9” H (8 x 23 cm)
