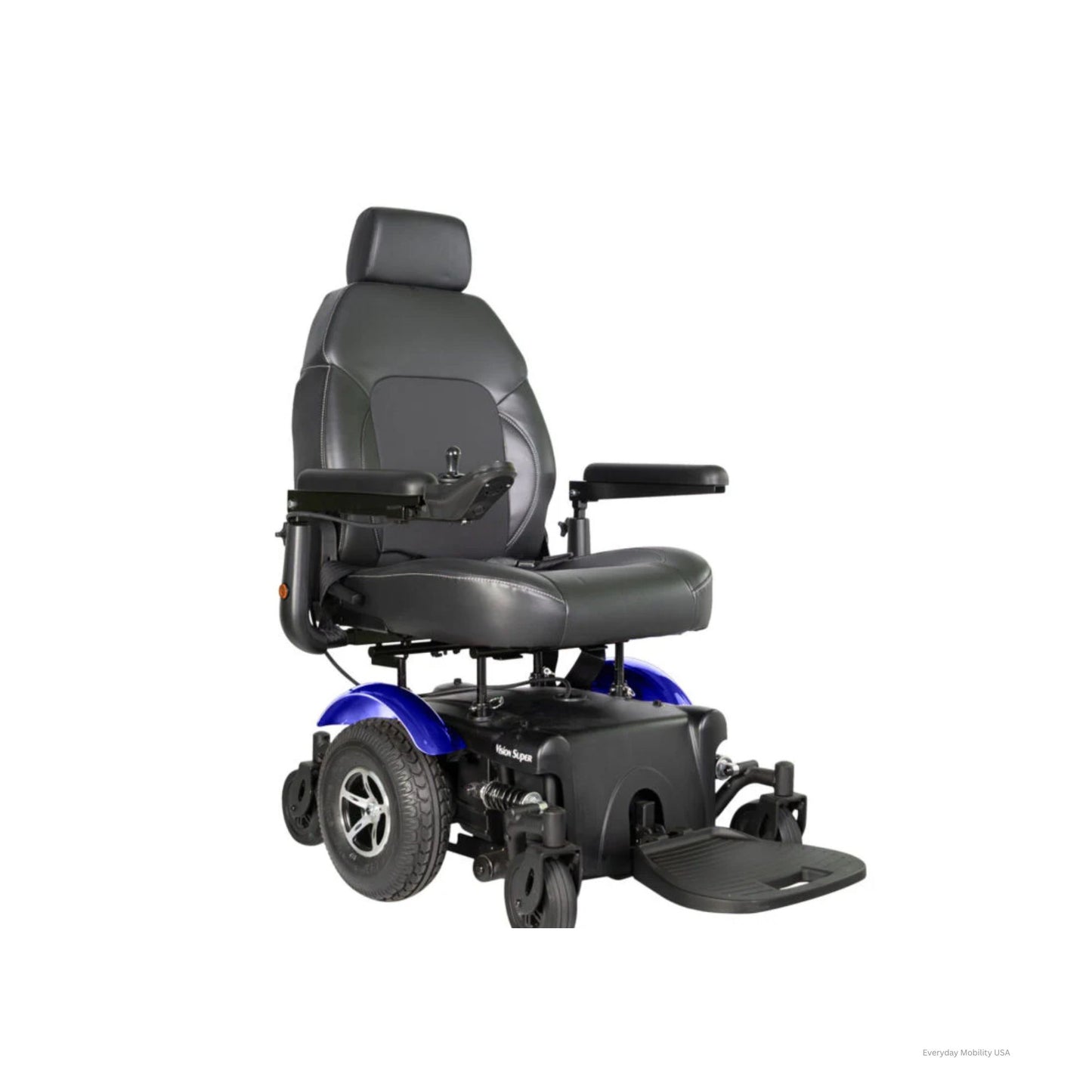

Merits Health Vision Super Power Wheelchair w/Power Lift Seat
Merits Health Vision Super Power Wheelchair w/Power Lift Seat
No reviews
Regular price
$5,135.00
Regular price
Sale price
$5,135.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
The Merits Health Vision Super with Lift (P3274) is a super heavy-duty Group 2 mid-wheel-drive power wheelchair designed for riders who need higher weight capacity, strong stability, and added everyday accessibility. Built on a reinforced mid-wheel-drive powerbase, it supports users up to 400 lbs. with the lift option while delivering confident indoor maneuverability and dependable outdoor performance.

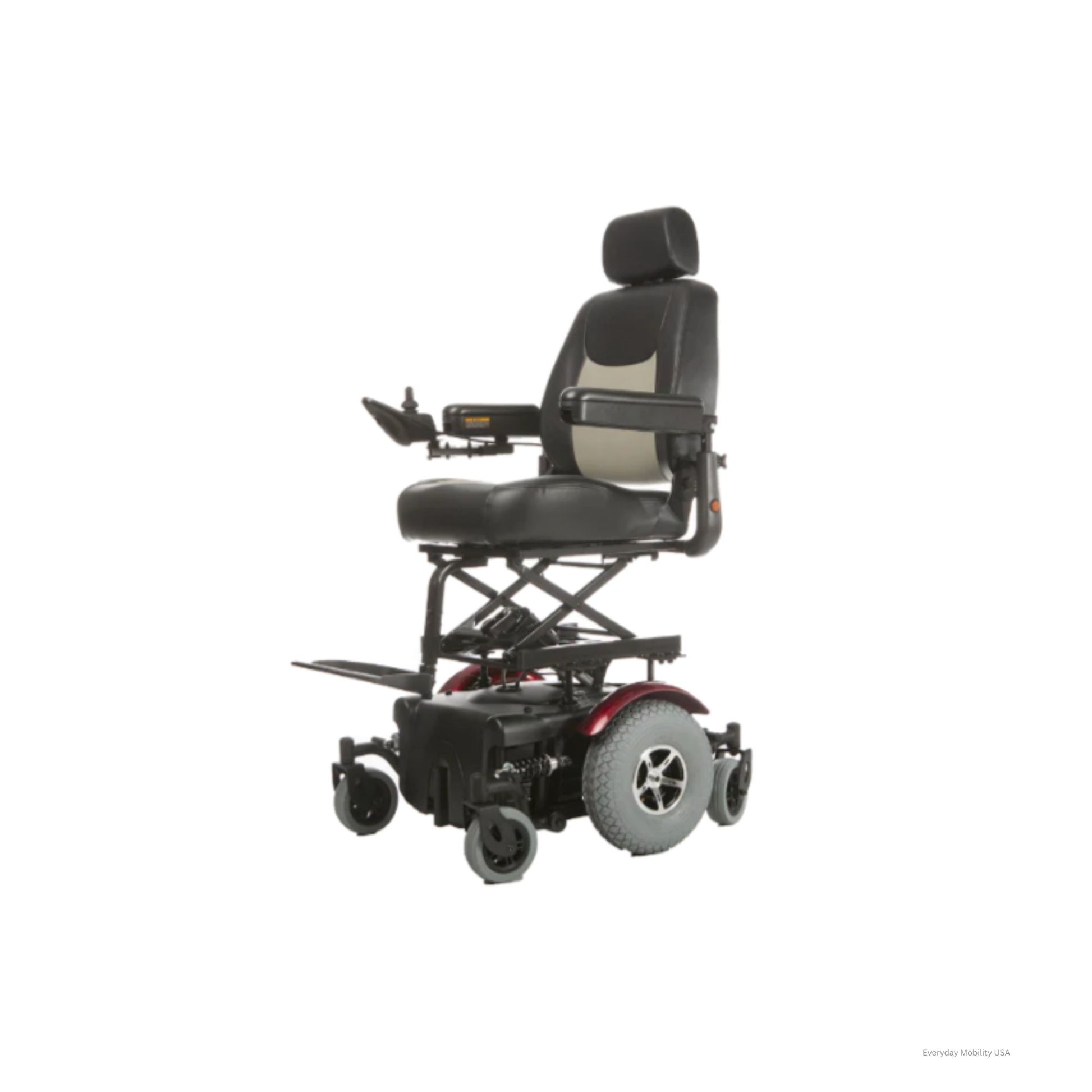

Its true mid-wheel-drive configuration provides a tight 21-inch turning radius, helping the Vision Super with Lift navigate doorways, hallways, and tighter spaces more easily than many heavy-duty power chairs. The integrated 10-inch power scissor seat lift helps support easier reach to higher surfaces, more natural eye-level interaction, and improved transfer access throughout the day.
Comfort features include a premium semi-reclining ergonomic seat with up to 135° of recline, along with customizable seating dimensions to better match individual user needs. Powered by Dynamic LiNX & Shark controllers with Bluetooth programming and diagnostics, the Vision Super with Lift offers a driving range of up to 20 miles per charge. Batteries are included, so it arrives ready for dependable heavy-duty daily use.
Features
- Super heavy-duty true mid-wheel-drive (MWD) powerbase

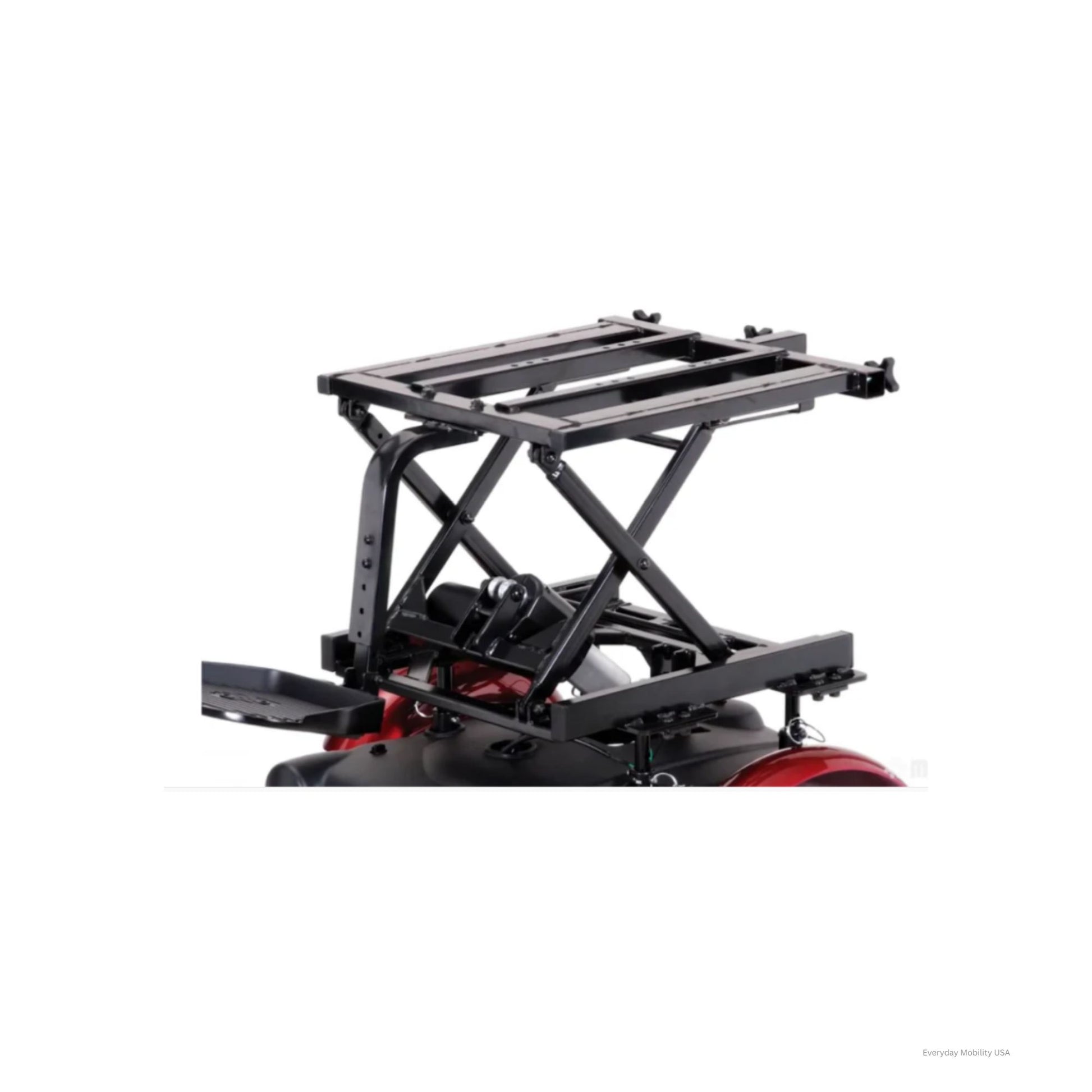

- 10" power scissor seat lift for enhanced reach, transfers, and eye-level interaction
- Tight 21" turning radius for excellent indoor maneuverability
- Dynamic LiNX & Shark controller with Bluetooth programming and diagnostics
- Premium semi-reclining ergonomic seat with up to 135° recline
- Customizable seat depth from 18" to 22"
- Designed for demanding indoor and community use
Specifications
- Product Number: P3274 (with Lift)
- Weight Capacity: 400 lbs (with lift)
- Drive Train: Mid-Wheel Drive (MWD)
- Seat Type: Captain or Pan (powered)
- Seat Width: 20" – 22"
- Seat Depth: 18" – 22"
- Backrest Height: 20" – 22"
- Seat-to-Floor Height: 24" – 34" (with lift)
- Seat Elevation: 10" power scissor lift
- Overall Length: 35.4"
- Overall Width: 27.2"
- Overall Height: 48"
- Turning Radius: 21"
- Ground Clearance: 2.2"
- Total Weight: 243 lbs
- Weight of Heaviest Piece: 121 lbs
- Maximum Speed: 5 mph
- Range Per Charge: Up to 20 miles
- Motor: DC 24V / 300W (2 pcs)
- Controller: Dynamic LiNX / PG VR2
- Batteries: (2 Included) 55Ah, 22NF AGM
- Charger: 5A off-board
- Maximum Gradient: 8°
- Front Wheels: 6" solid
- Drive Wheels: 12" flat-free
- Rear Wheels: 6" solid
- HCPCS Codes: K0824 / K0825 / K0830 / K0831
- Color Options: Red
Manuals
View or download the official Merits Health Vision Super with Lift (P3274) owner’s manual below.
Download Vision Super with Lift Owner’s Manual (PDF)
PC Lite
Download Precision Comfort Lite Guide (PDF)
PC Gel
Warranty
Warranty
Merits Health Products, Inc. provides a comprehensive warranty covering defects in materials or workmanship, beginning from the original date of consumer purchase. Warranty service will be provided after inspection by an authorized Merits representative.
5-Year Warranty
- Base Frame
- Seatbelt
18-Month Warranty
- Joystick / Power Module / Controller
- Motor / Gearbox / Brake Assembly
- Electrical Harnesses
- Angle Sensor
- Circuit Boards
- Charger
- Transaxle
- PC Cushion / Back / Positioning Accessories
13-Month Warranty
- Seat Post / Mount
- Power Seat Actuator
- Caster Beam
- Joystick Mounting Bracket
- Metal Seat Frame
- Anti-Tipper Assembly
- 31Ah or Larger Batteries
- Powered Footplate
- Armrest Bracket (metal part only)
- Caster Forks
6-Month Warranty
- Bearings / Bushings
- Front Riggings
- Non-Powered Footplate
- PC Cover
- Swivel Seat Mechanism
- Batteries less than 31Ah supplied by Merits
Pilot Staircase – 5-Year Warranty
- Motor Gear Box
- Over Speed Governor (OSG)
- Rails – Curved / Straight / Hinge
Pilot Staircase – 2-Year Warranty
- Non-Wear Components
- Circuit Boards
- Fasteners
- Electrical (Harnesses & Switches)
Warranty Exclusions
The following items are not covered under warranty:
- Tires & Tubes
- Fuses & Bulbs
- Battery Cases
- Plastic / Rubber Parts
- Motor Brushes
- Brake Pads
- Upholstery (Seat / Arm Pads / Padding)
- Painted Surfaces including Shrouds / Fenders
Warranty becomes invalid for:
- Acts of nature, lost or stolen units
- Commercial use
- Neglect, improper operation, and/or lack of maintenance or repair
- Units altered or serviced by unauthorized agencies
- Serial numbers removed or defaced
Parts Purchased Outside of Warranty
Parts purchased outside the warranty period have 90 days to report manufacturing defects.
Limited Lifetime Warranty
Merits Health Products, Inc. reserves the right to replace warranted parts at their discretion for the original purchaser. Labor, service calls, transportation, freight, or other charges associated with part installation are the responsibility of the consumer or dealer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
