Description

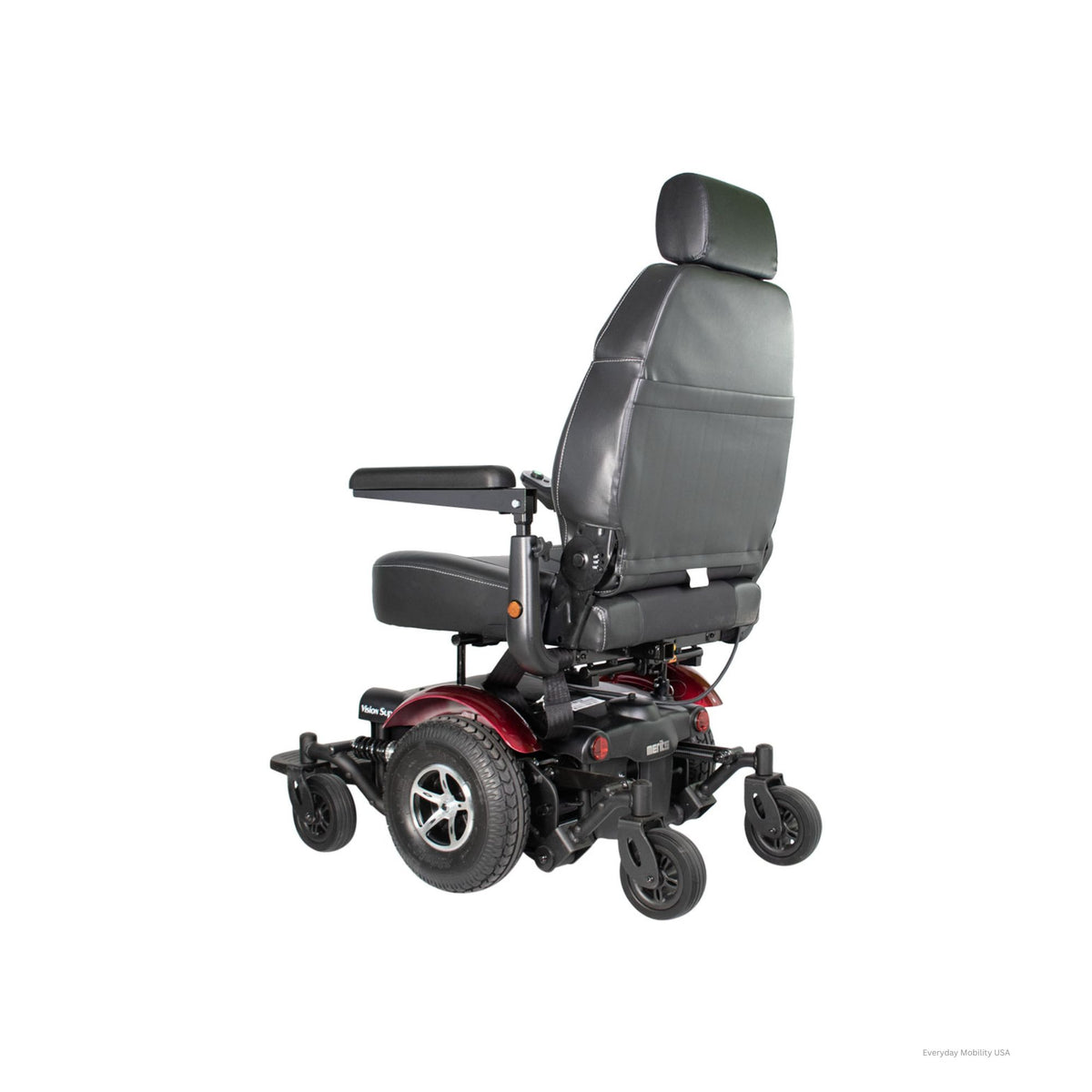

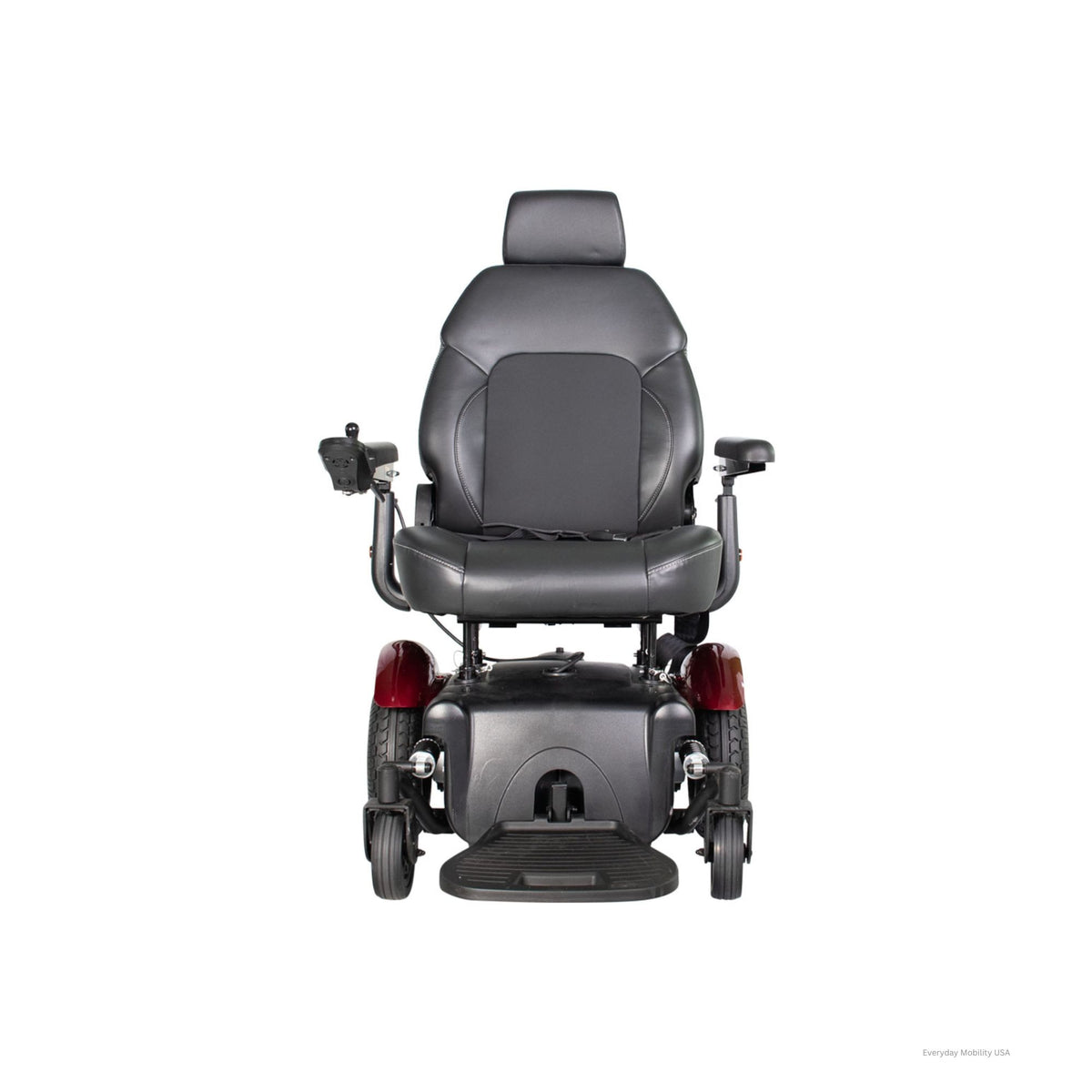

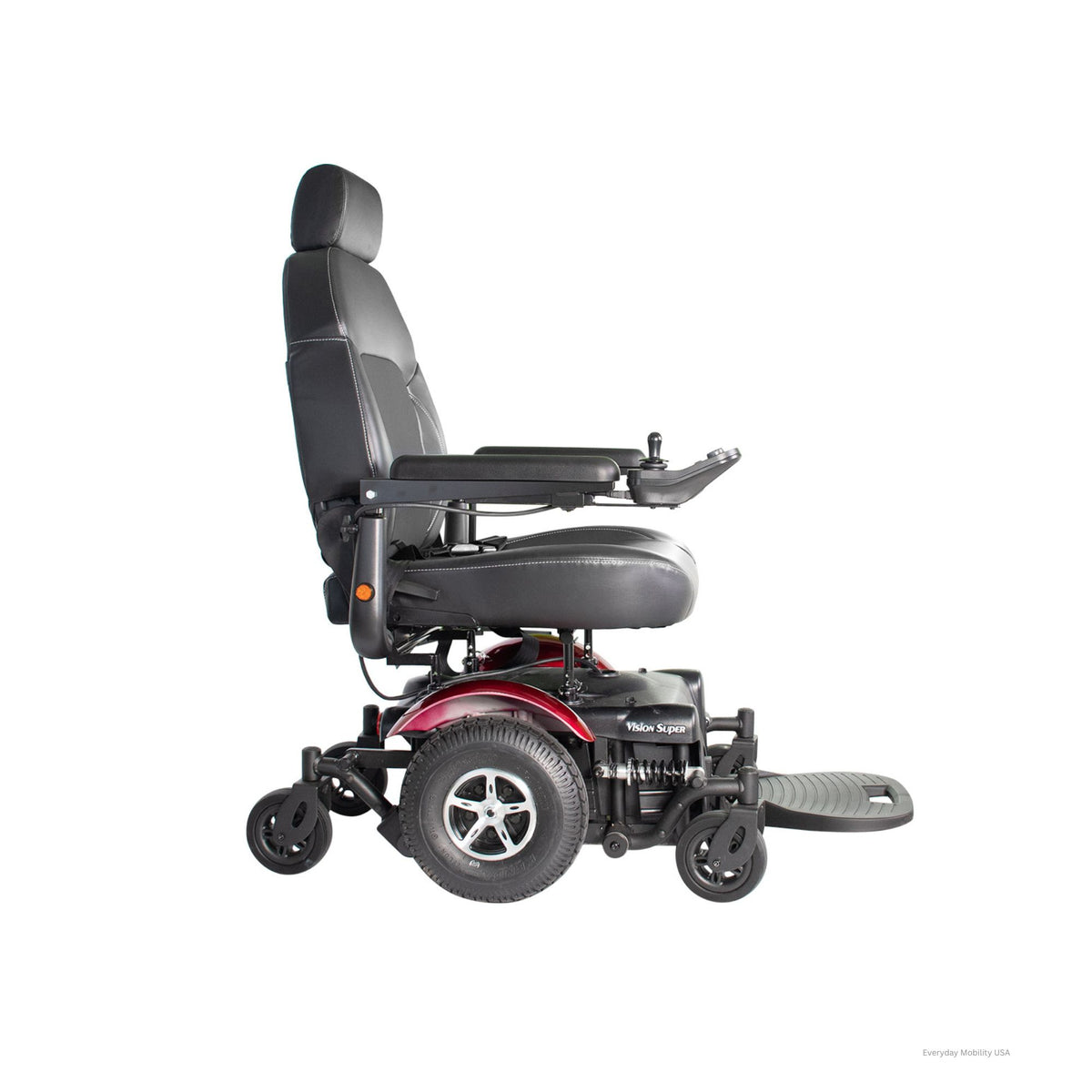

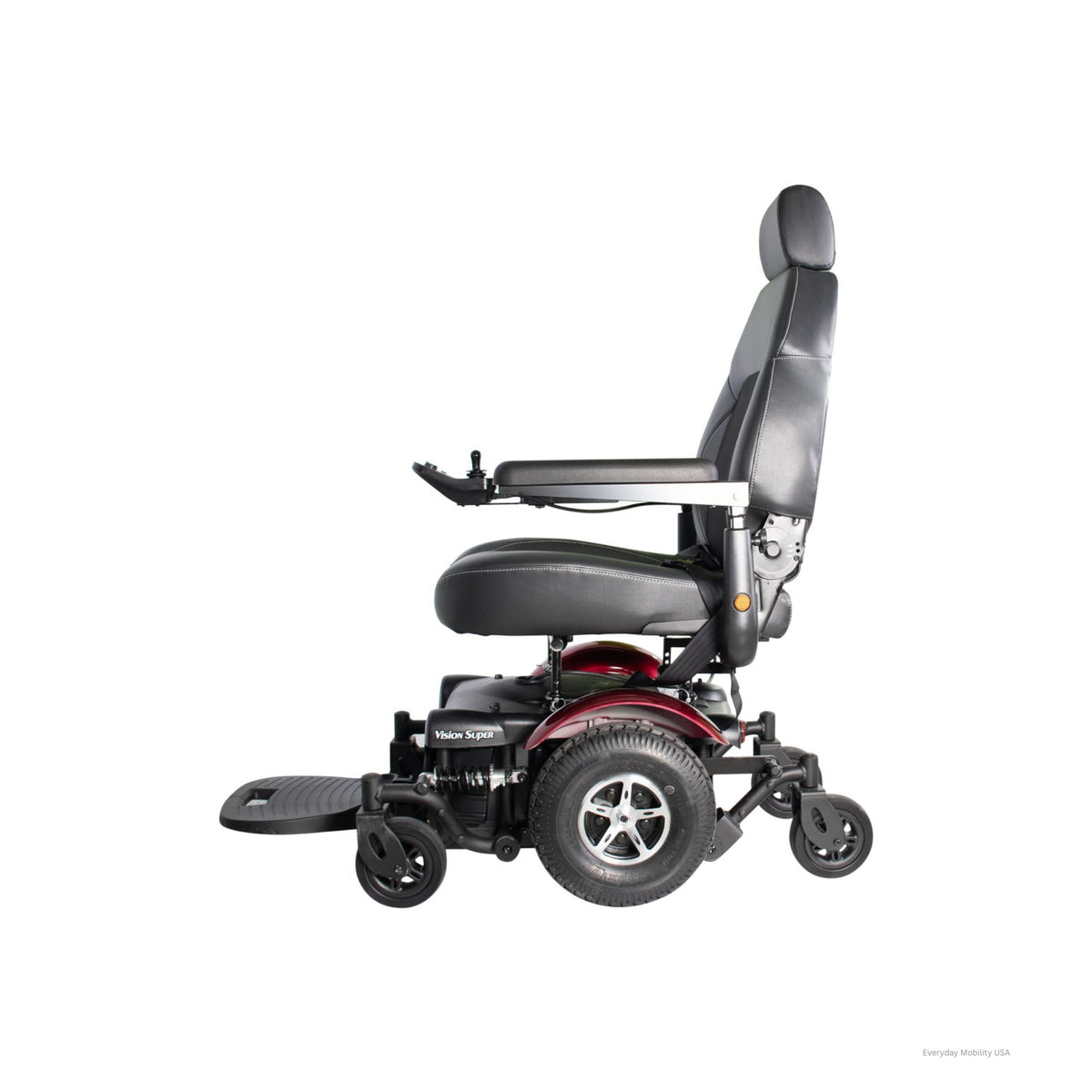

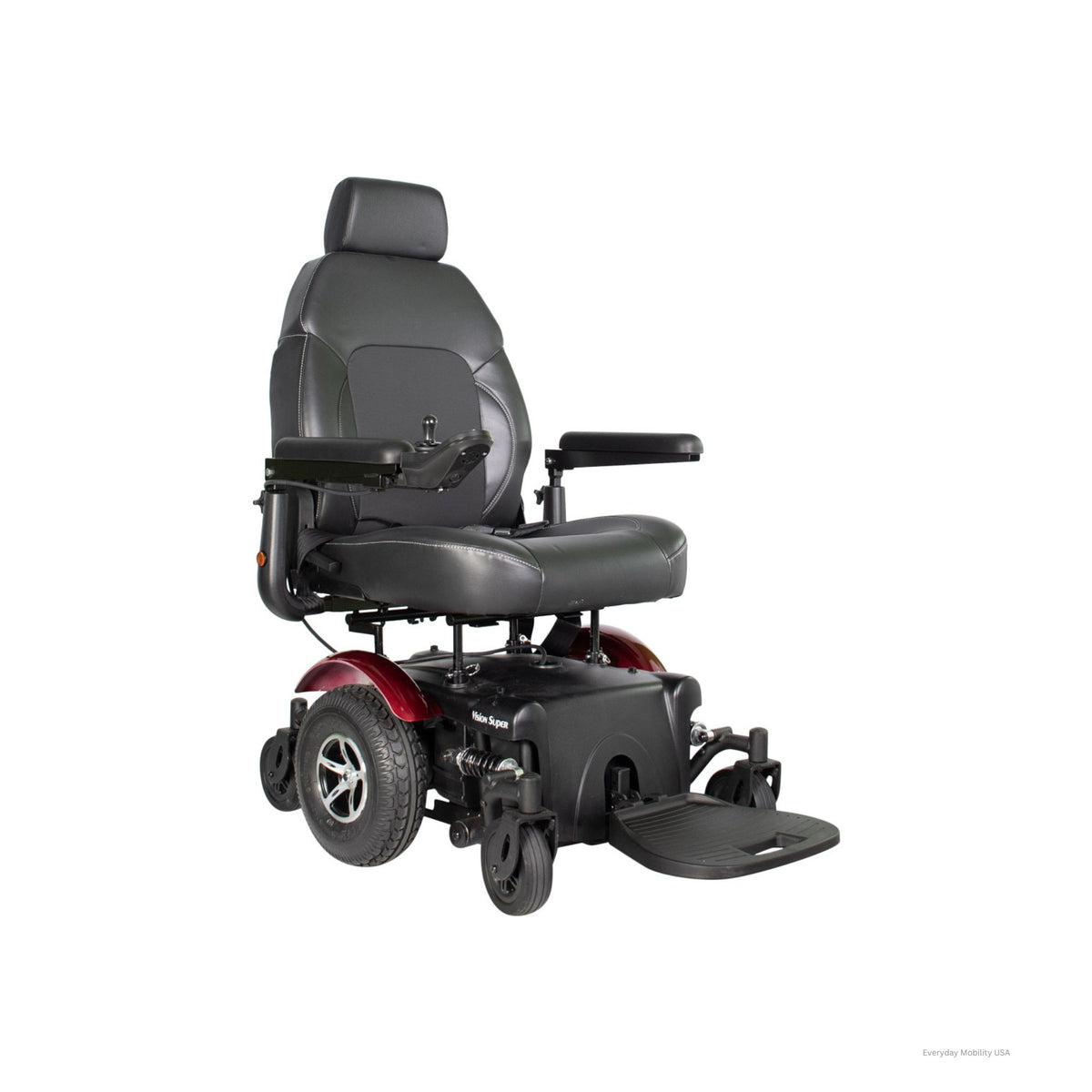

The Merits Health Vision Super P327 is a super heavy-duty mid-wheel-drive power wheelchair designed for riders who need higher weight capacity, strong stability, and dependable everyday maneuverability. With a robust 450 lb. weight capacity and a true mid-wheel-drive powerbase, it delivers confident performance in both indoor spaces and community environments.
Its tight 21-inch turning radius helps support smooth movement through hallways and tighter spaces, while an independent suspension system absorbs up to 350 lbs. on the footplate without tipping forward, adding stability during transfers, daily transitions, and travel across uneven surfaces.
Comfort features include a premium semi-reclining ergonomic seat with up to 135° of recline and customizable seat depth from 18 to 22 inches. Powered by a Dynamic LiNX & Shark controller with Bluetooth programming and diagnostics, the Vision Super P327 offers a driving range of up to 18 miles per charge. Batteries are included, so it arrives ready for dependable heavy-duty daily use.
Features
- Super heavy-duty mid-wheel-drive (MWD) powerbase
- 450 lb. weight capacity
- Tight 21" turning radius for excellent maneuverability
- Robust independent suspension absorbs up to 350 lbs. on the footplate without tipping
- Dynamic LiNX & Shark controller with Bluetooth programming and diagnostics
- Premium semi-reclining ergonomic seat with up to 135° recline
- Customizable seat depth from 18" to 22"
- Designed for demanding indoor and community use
Specifications
- Product Number: P327
- Weight Capacity: 450 lbs
- Drive Train: Mid-Wheel Drive (MWD)
- Seat Type: Captain or Pan
- Seat Width: 20" – 24"
- Seat Depth: 18" – 22"
- Backrest Height: 20" – 22"
- Seat-to-Floor Height: 22"
- Overall Length: 35.4"
- Overall Width: 27.2"
- Overall Height: 48"
- Turning Radius: 21"
- Ground Clearance: 2.2"
- Total Weight: 243 lbs
- Weight of Heaviest Piece: 121 lbs
- Maximum Speed: 5 mph
- Range Per Charge: Up to 20 miles
- Motor: DC 24V / 300W (2 pcs)
- Controller: Dynamic Shark 50A / PG VR2 60A
- Batteries: (2 Included) 55Ah, 22NF AGM
- Charger: 5A off-board
- Maximum Gradient: 8°
- Front Wheels: 6" solid
- Drive Wheels: 12" flat-free
- Rear Wheels: 6" solid
- HCPCS Codes: K0824 / K0825
- Color Options: Red
Manuals
View or download the official Merits Health Vision Super P327 owner’s manual below.
Download Vision Super Owner’s Manual (PDF)
PC Lite
Download Precision Comfort Lite Guide (PDF)
PC Gel
Shipping
Free standard shipping is included for this product when shipped within the lower 48 United States.
Everyday Mobility USA currently ships to the lower 48 United States only. We do not currently ship to Alaska, Hawaii, U.S. territories, APO/FPO addresses, or international addresses.
Most eligible orders are processed within 1–3 business days after order confirmation. Estimated delivery is typically 5–10 business days after processing, depending on the product, manufacturer, carrier, and delivery location.
Some larger mobility products may ship by freight carrier, and the carrier may contact you to schedule delivery. Delivery services such as liftgate, residential, inside, or white-glove delivery may vary by product.
Questions before ordering? Call 877-349-4978 and our team can help confirm delivery details.
Warranty
Merits Health Warranty
Merits Health Products, Inc. warrants its products against defects in materials or workmanship from the original date of consumer purchase. Warranty service is subject to inspection by an authorized Merits representative.
5-Year Warranty
- Base Frame
- Seatbelt
18-Month Warranty
- Joystick / Power Module / Controller
- Motor / Gearbox / Brake Assembly
- Electrical Harnesses & Circuit Boards
- Angle Sensor
- Charger & Transaxle
- PC Cushion / Back / Positioning Accessories
13-Month Warranty
- Seat Post / Mount & Metal Seat Frame
- Power Seat Actuator
- Caster Beam & Caster Forks
- Joystick Mounting Bracket
- Anti-Tipper Assembly
- 31Ah or Larger Batteries
- Powered Footplate
- Armrest Bracket (metal part only)
6-Month Warranty
- Bearings / Bushings
- Front Riggings
- Non-Powered Footplate
- PC Cover
- Swivel Seat Mechanism
- Merits-Supplied Batteries Under 31Ah
Pilot Staircase
- 5 Years: Motor Gear Box, Over Speed Governor (OSG), Curved / Straight / Hinge Rails
- 2 Years: Non-Wear Components, Circuit Boards, Fasteners, Electrical Harnesses & Switches
Not Covered
Tires & tubes; fuses & bulbs; battery cases; plastic/rubber parts; motor brushes; brake pads; upholstery; and painted surfaces, including shrouds and fenders.
Warranty is void for: acts of nature; lost or stolen units; commercial use; neglect, improper operation or lack of maintenance; unauthorized alterations/service; or removed/defaced serial numbers.
Additional Terms
Parts purchased outside the warranty period have 90 days to report manufacturing defects. Merits may replace warranted parts at its discretion for the original purchaser. Labor, service calls, transportation, freight, and other installation-related charges are the responsibility of the consumer or dealer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
