Merits Health Vision Sport Power Wheelchair w/Power Lift Seat
Merits Health Vision Sport Power Wheelchair w/Power Lift Seat
No reviews
Regular price
$3,723.00
Regular price
Sale price
$3,723.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description

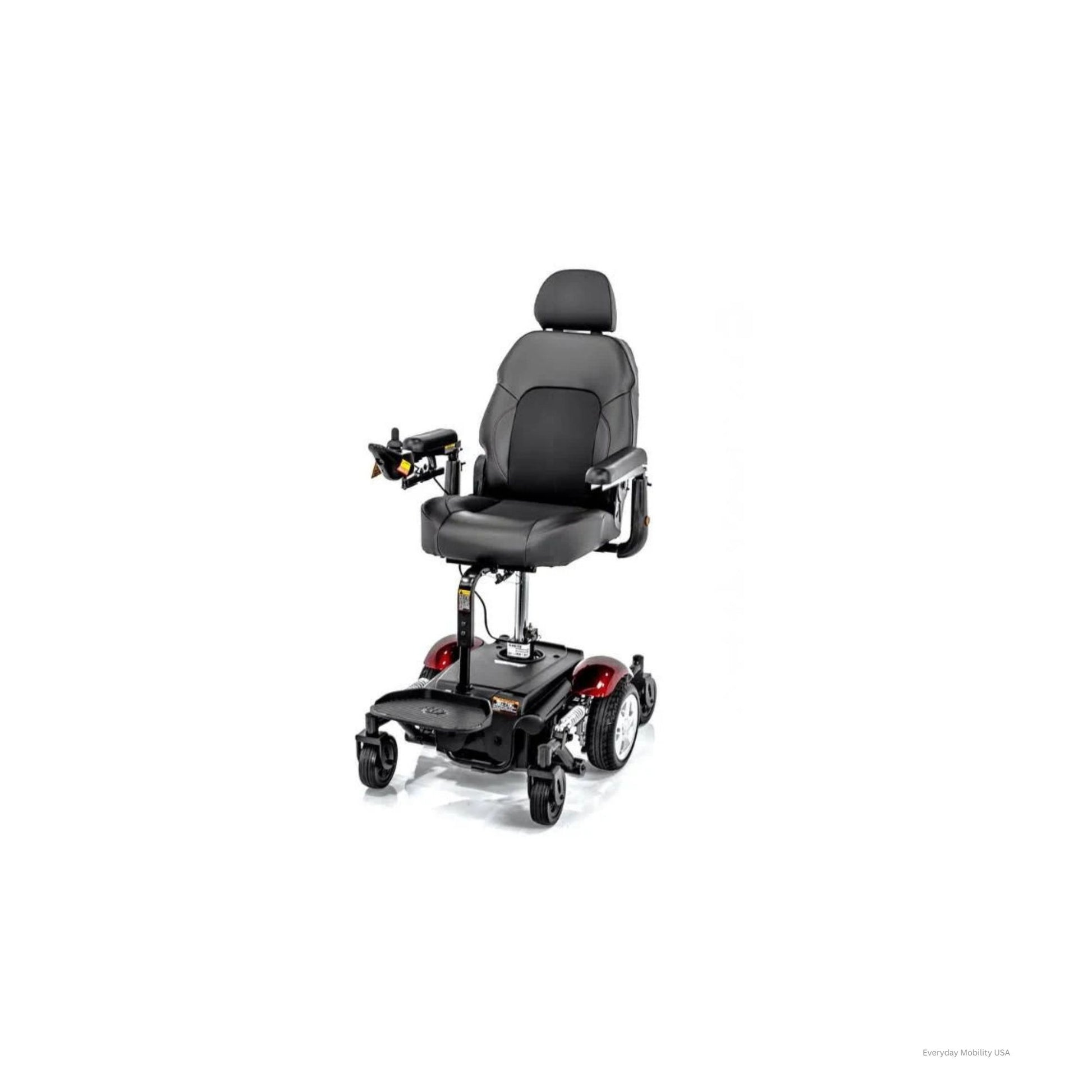

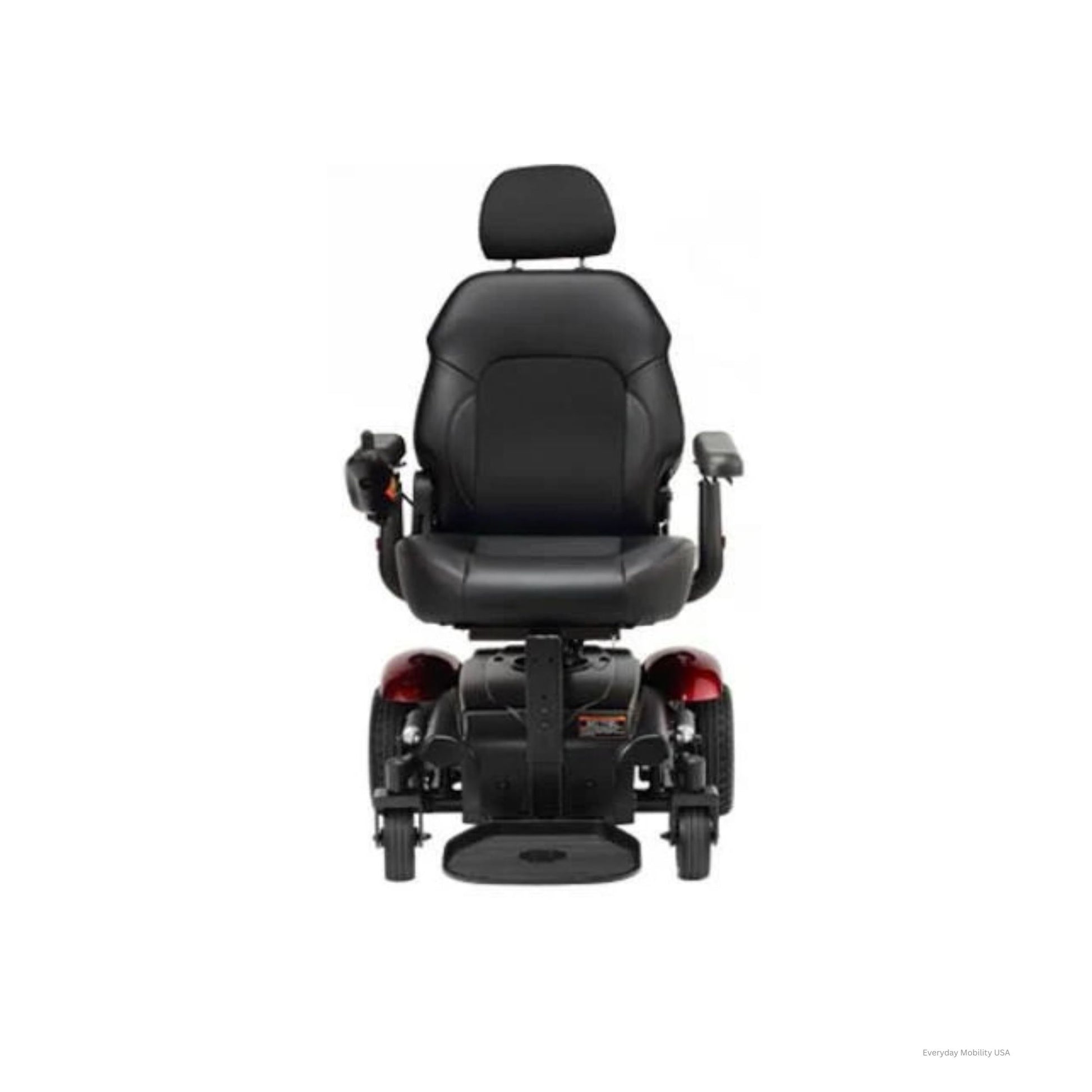

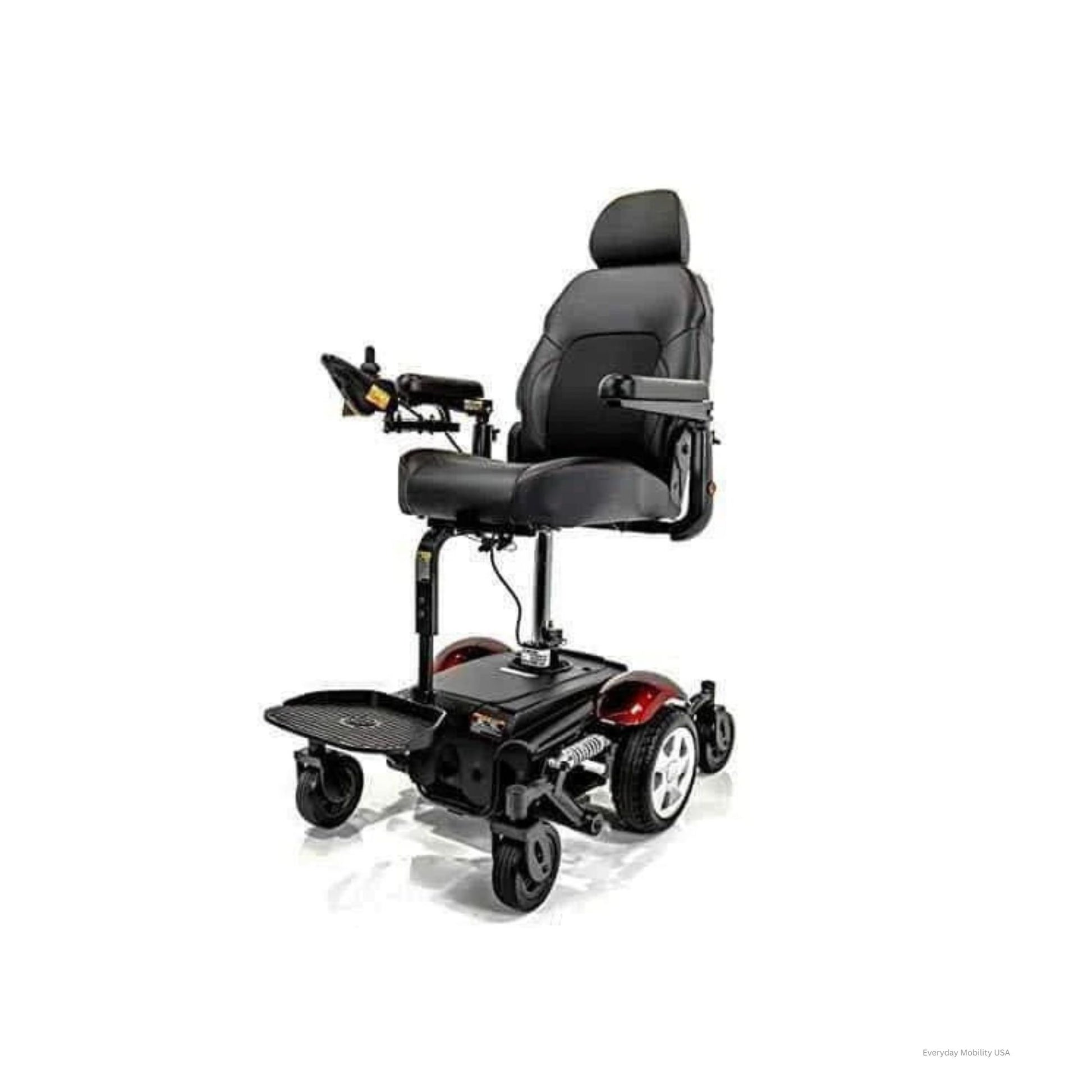

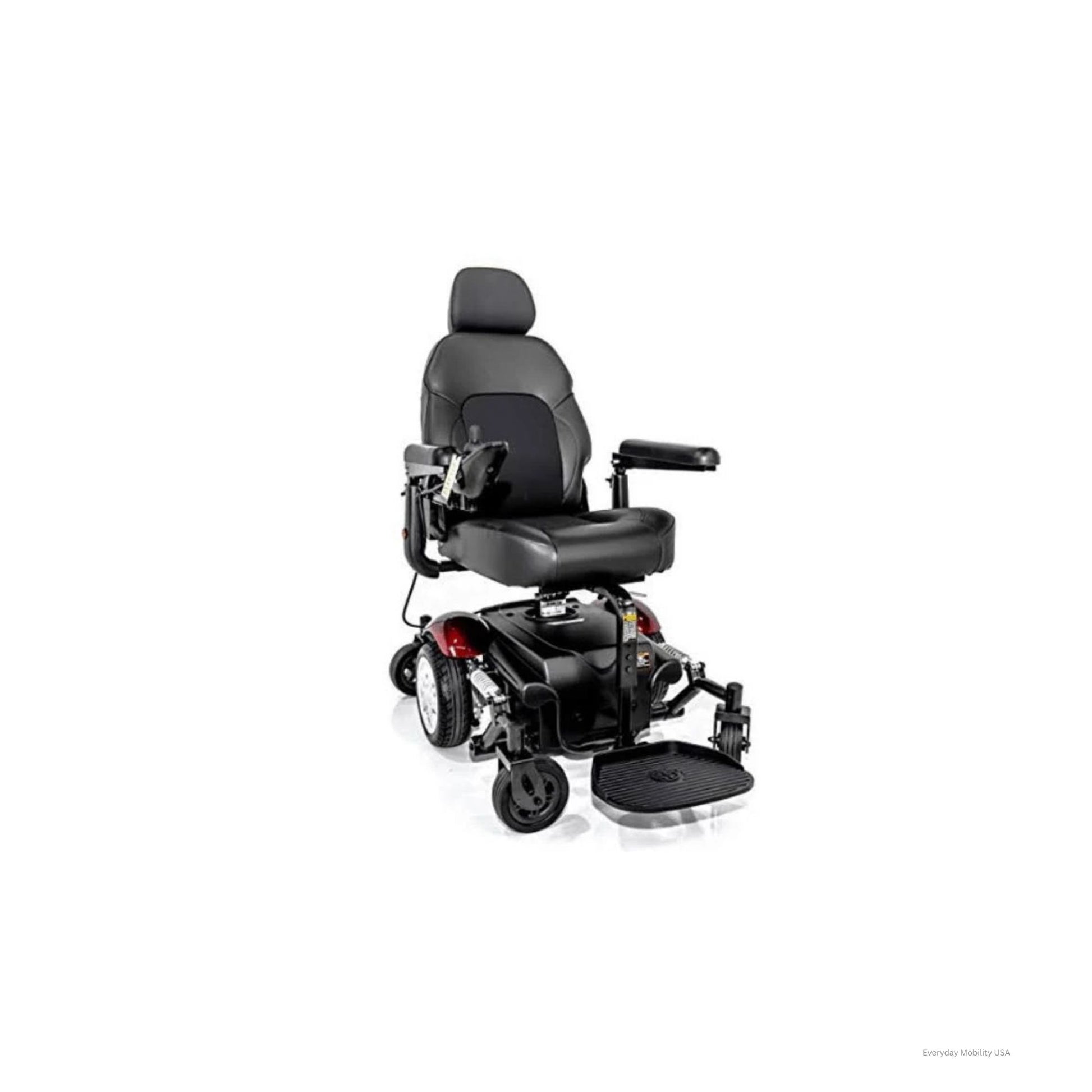

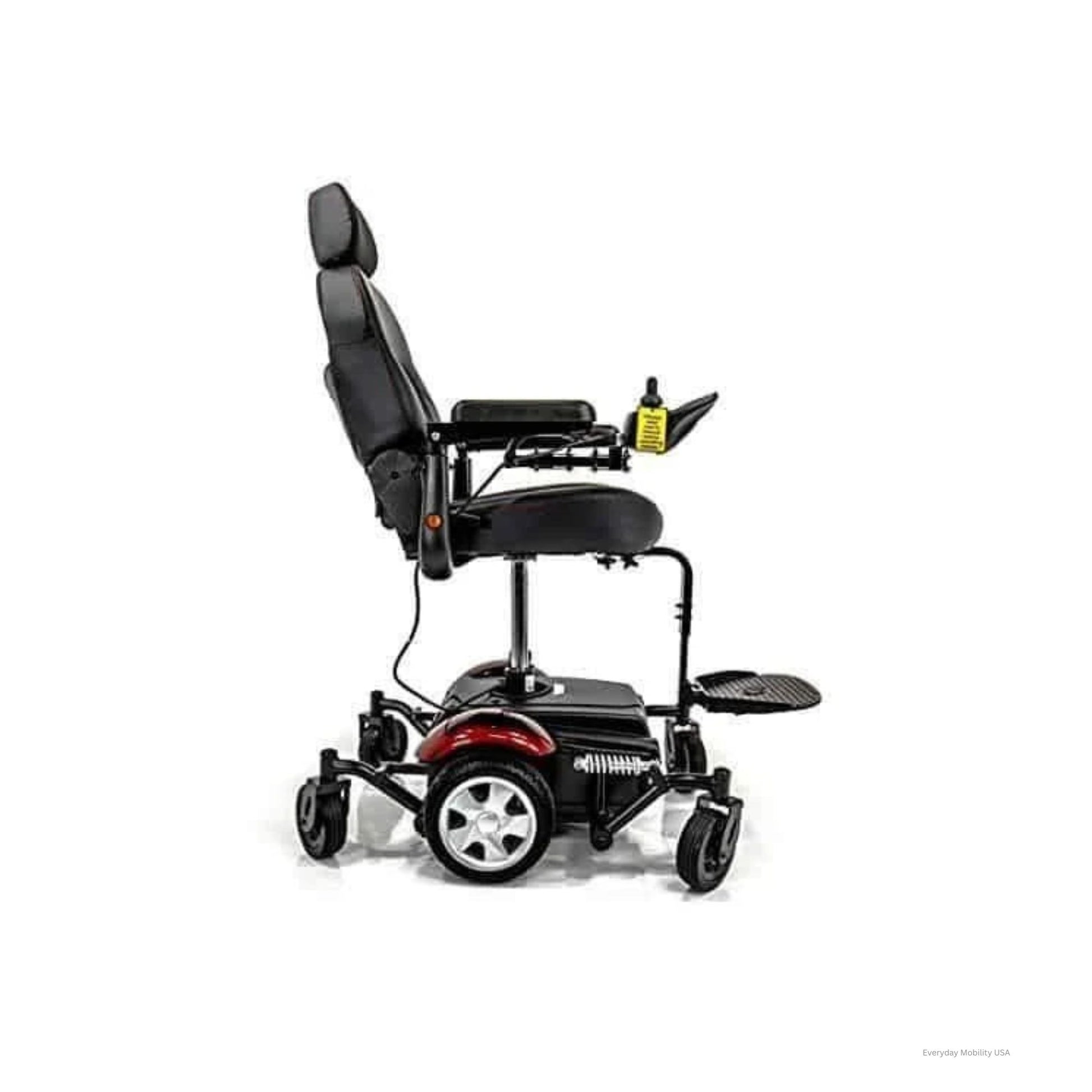

The Merits Health Vision Sport with Lift (P326D) is a Group 2 mid-wheel-drive power wheelchair designed for everyday comfort, stability, and added accessibility. With a 300 lb. weight capacity, a true mid-wheel-drive powerbase, and a 6.5-inch power elevating seat, it offers a strong balance of maneuverability, support, and day-to-day convenience at home and in the community.

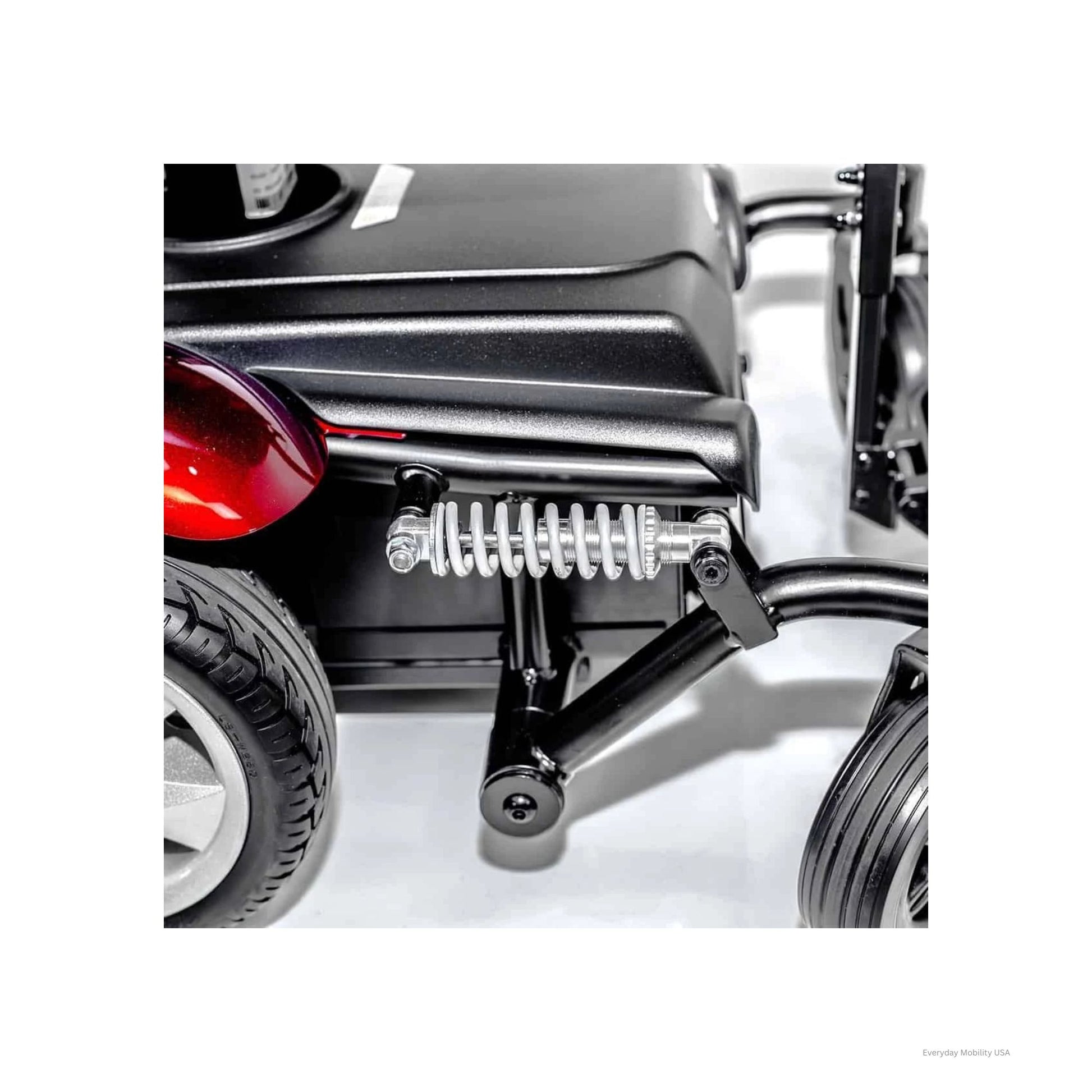

Designed for tighter spaces, the Vision Sport with Lift features a compact 20-inch turning radius for confident navigation through doorways, hallways, and more crowded rooms. Its independent suspension system is engineered to absorb up to 250 lbs. on the footplate without tipping, helping support smoother transitions and added confidence over common everyday obstacles. Durable 10-inch solid drive tires provide dependable traction across a variety of indoor and outdoor surfaces.
Comfort features include a premium semi-reclining ergonomic seat with up to 135° of recline, along with customizable Captain or Pan seating options and adjustable seat depth from 16 to 20 inches. The powered seat elevation can help improve transfers, reach, and interaction at different heights. Batteries are included, so the Vision Sport with Lift arrives ready for daily mobility.
Features
- True mid-wheel drive (MWD) design with tight 20" turning radius
- 6.5" power elevating seat for improved reach, transfers, and eye-level interaction
- Toggle lift operation or joystick-controlled lift upgrade (E2310)
- Premium semi-reclining ergonomic seat with up to 135° recline
- 10" solid drive tires for dependable traction and stability
- Customizable seat depth from 16" to 20"

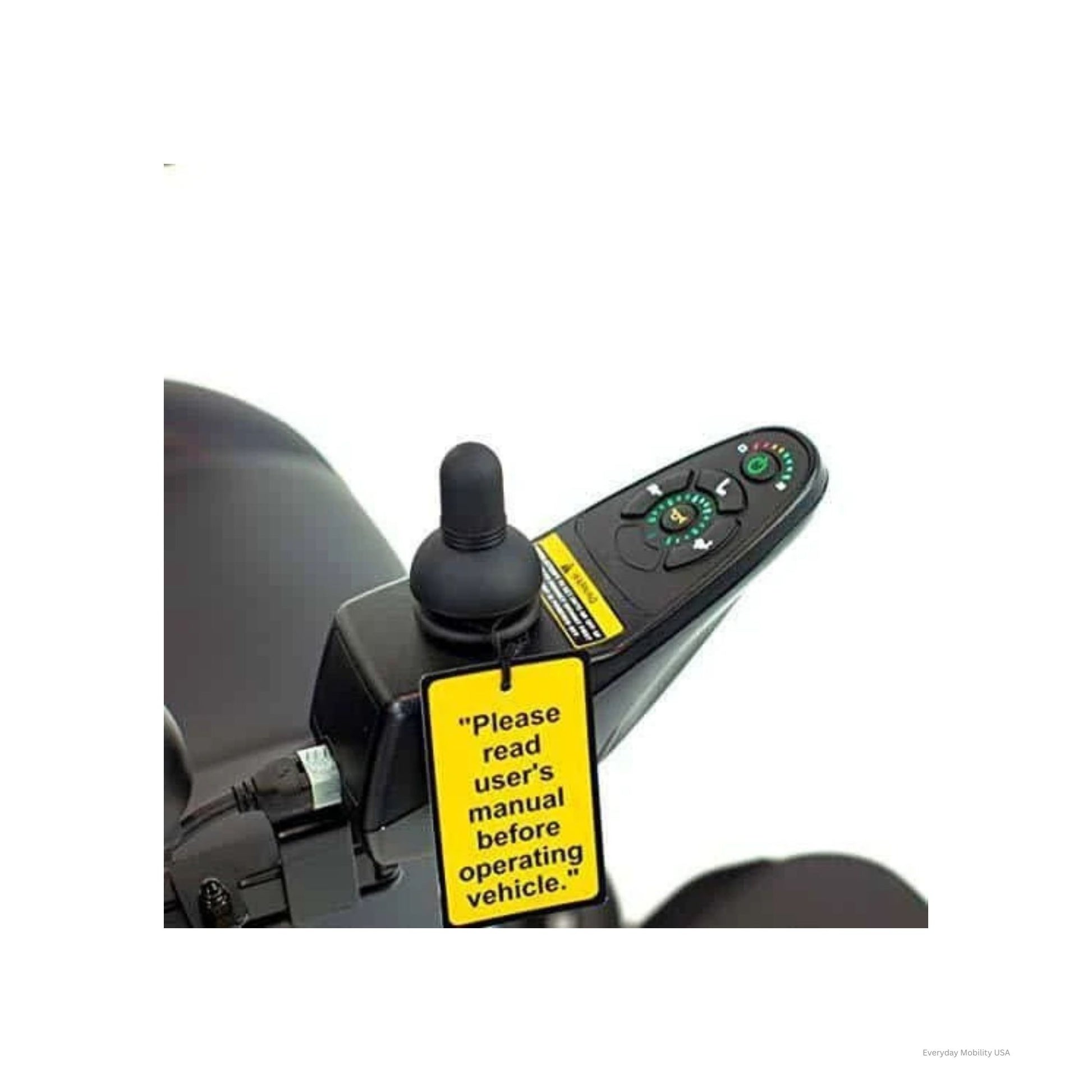

- P&G VR2 joystick programmed via PP1 programmer
Specifications
- Product Number: P326D
- Weight Capacity: 300 lbs
- Drive Train: Mid-Wheel Drive (MWD)
- Seat Type: Captain or Pan (powered)
- Seat Width: 18" – 20"
- Seat Depth: 16" – 20"
- Backrest Height: 20"
- Seat-to-Floor Height: 20.5" – 29.5"
- Seat Elevation: 6.5"
- Overall Length: 34"
- Overall Width: 24"
- Overall Height: 48.5"
- Turning Radius: 20"
- Ground Clearance: 2"
- Total Weight: 214 lbs
- Weight of Heaviest Piece: 120 lbs
- Maximum Speed: 5 mph
- Range Per Charge: Up to 18 miles
- Motor: DC 24V / 160W
- Controller: P&G VR2 60A
- Batteries: (2 Included) 35Ah, 12V, U1
- Charger: 4A off-board
- Maximum Gradient: 6°
- Front Wheels: 6" solid
- Drive Wheels: 10" solid
- Rear Wheels: 6" solid
- HCPCS Codes: K0830 / K0831
- Color Options: Red
Manuals
View or download the official Merits Health Vision Sport with Lift (P326D) owner’s manual below.
Download Vision Sport with Lift Owner’s Manual (PDF)
PC Lite
Download Precision Comfort Lite Guide (PDF)
PC Gel
Download Precision Comfort Gel Guide (PDF)
Videos
Warranty
Warranty
Merits Health Products, Inc. provides a comprehensive warranty covering defects in materials or workmanship, beginning from the original date of consumer purchase. Warranty service will be provided after inspection by an authorized Merits representative.
5-Year Warranty
- Base Frame
- Seatbelt
18-Month Warranty
- Joystick / Power Module / Controller
- Motor / Gearbox / Brake Assembly
- Electrical Harnesses
- Angle Sensor
- Circuit Boards
- Charger
- Transaxle
- PC Cushion / Back / Positioning Accessories
13-Month Warranty
- Seat Post / Mount
- Power Seat Actuator
- Caster Beam
- Joystick Mounting Bracket
- Metal Seat Frame
- Anti-Tipper Assembly
- 31Ah or Larger Batteries
- Powered Footplate
- Armrest Bracket (metal part only)
- Caster Forks
6-Month Warranty
- Bearings / Bushings
- Front Riggings
- Non-Powered Footplate
- PC Cover
- Swivel Seat Mechanism
- Batteries less than 31Ah supplied by Merits
Pilot Staircase – 5-Year Warranty
- Motor Gear Box
- Over Speed Governor (OSG)
- Rails – Curved / Straight / Hinge
Pilot Staircase – 2-Year Warranty
- Non-Wear Components
- Circuit Boards
- Fasteners
- Electrical (Harnesses & Switches)
Warranty Exclusions
The following items are not covered under warranty:
- Tires & Tubes
- Fuses & Bulbs
- Battery Cases
- Plastic / Rubber Parts
- Motor Brushes
- Brake Pads
- Upholstery (Seat / Arm Pads / Padding)
- Painted Surfaces including Shrouds / Fenders
Warranty becomes invalid for:
- Acts of nature, lost or stolen units
- Commercial use
- Neglect, improper operation, and/or lack of maintenance or repair
- Units altered or serviced by unauthorized agencies
- Serial numbers removed or defaced
Parts Purchased Outside of Warranty
Parts purchased outside the warranty period have 90 days to report manufacturing defects.
Limited Lifetime Warranty
Merits Health Products, Inc. reserves the right to replace warranted parts at their discretion for the original purchaser. Labor, service calls, transportation, freight, or other charges associated with part installation are the responsibility of the consumer or dealer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
