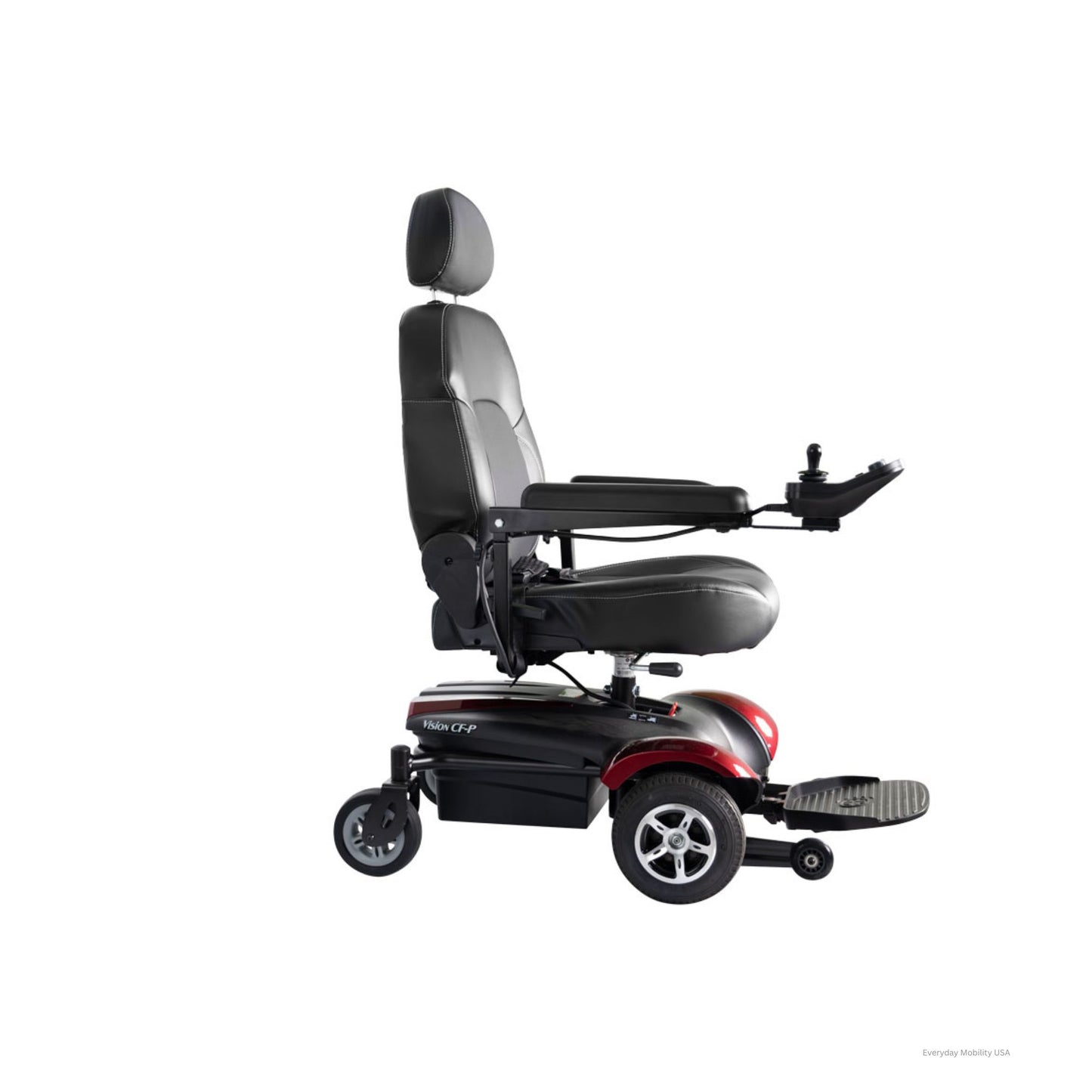

Merits Health Vision CF Full-Size Power Wheelchair
Merits Health Vision CF Full-Size Power Wheelchair
No reviews
Regular price
$2,267.00
Regular price
Sale price
$2,267.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
The Merits Health Vision CF P322 is a front-wheel-drive Group 2 power wheelchair designed for dependable daily mobility, strong maneuverability, and smooth everyday performance. Built on a true FWD powerbase, it offers precise control in homes, apartments, and other community environments where tighter navigation matters.
Its tight 17-inch turning radius helps support confident movement through hallways, corners, and more crowded spaces, while 9-inch knobby drive tires provide reliable traction across a variety of common indoor and outdoor surfaces. A Dynamic LiNX controller with Bluetooth programming and diagnostics allows the chair to be configured to better match individual user needs.
Comfort features include a premium semi-reclining ergonomic seat with up to 135° of recline, along with customizable seat depth options from 16 to 20 inches in 1-inch increments. With a driving range of up to 18 miles per charge, batteries are included, so the Vision CF P322 arrives ready for dependable everyday use right out of the box.
Features
- True front-wheel-drive (FWD) powerbase
- Ultra-tight 17" turning radius for superior maneuverability
- Dynamic LiNX controller with Bluetooth programming and diagnostics
- Premium semi-reclining ergonomic seat with up to 135° recline
- Customizable seat depth from 16" to 20" in 1" increments
- 9" knobby drive tires for improved traction
- Designed for reliable indoor and everyday community use
Specifications
- Product Number: P322
- Weight Capacity: 300 lbs
- Drive Train: Front-Wheel Drive (FWD)
- Seat Type: Captain or Pan
- Seat Width: 16" – 20"
- Seat Depth: 16" – 20"
- Backrest Height: 18" – 20"
- Seat-to-Floor Height: 16.5" – 22"
- Overall Length: 33"
- Overall Width: 24"
- Overall Height: 37"
- Turning Radius: 17"
- Ground Clearance: 2.4"
- Total Weight: 154 lbs
- Heaviest Piece: 62.7 lbs
- Maximum Speed: 4 mph
- Range Per Charge: Up to 18 miles
- Motor: DC 24V / 130W
- Controller: Dynamic LiNX 40A
- Batteries: (2 Included) 33Ah, U1 AGM
- Charger: 4A off-board
- Maximum Gradient: 6°
- Front Wheels: 3" anti-tippers
- Drive Wheels: 9" foam-filled
- Rear Wheels: 6" foam-filled
- HCPCS Codes: K0815 / K0816 / K0820 / K0821 / K0822 / K0823
- Color Option: Candy Apple Red
Manuals
View or download the official Merits Health Vision CF P322 owner’s manual below.
Download Vision CF Owner’s Manual (PDF)
PC Lite
Download Precision Comfort Lite Guide (PDF)
PC Gel
Warranty
Warranty
Merits Health Products, Inc. provides a comprehensive warranty covering defects in materials or workmanship, beginning from the original date of consumer purchase. Warranty service will be provided after inspection by an authorized Merits representative.
5-Year Warranty
- Base Frame
- Seatbelt
18-Month Warranty
- Joystick / Power Module / Controller
- Motor / Gearbox / Brake Assembly
- Electrical Harnesses
- Angle Sensor
- Circuit Boards
- Charger
- Transaxle
- PC Cushion / Back / Positioning Accessories
13-Month Warranty
- Seat Post / Mount
- Power Seat Actuator
- Caster Beam
- Joystick Mounting Bracket
- Metal Seat Frame
- Anti-Tipper Assembly
- 31Ah or Larger Batteries
- Powered Footplate
- Armrest Bracket (metal part only)
- Caster Forks
6-Month Warranty
- Bearings / Bushings
- Front Riggings
- Non-Powered Footplate
- PC Cover
- Swivel Seat Mechanism
- Batteries less than 31Ah supplied by Merits
Pilot Staircase – 5-Year Warranty
- Motor Gear Box
- Over Speed Governor (OSG)
- Rails – Curved / Straight / Hinge
Pilot Staircase – 2-Year Warranty
- Non-Wear Components
- Circuit Boards
- Fasteners
- Electrical (Harnesses & Switches)
Warranty Exclusions
The following items are not covered under warranty:
- Tires & Tubes
- Fuses & Bulbs
- Battery Cases
- Plastic / Rubber Parts
- Motor Brushes
- Brake Pads
- Upholstery (Seat / Arm Pads / Padding)
- Painted Surfaces including Shrouds / Fenders
Warranty becomes invalid for:
- Acts of nature, lost or stolen units
- Commercial use
- Neglect, improper operation, and/or lack of maintenance or repair
- Units altered or serviced by unauthorized agencies
- Serial numbers removed or defaced
Parts Purchased Outside of Warranty
Parts purchased outside the warranty period have 90 days to report manufacturing defects.
Limited Lifetime Warranty
Merits Health Products, Inc. reserves the right to replace warranted parts at their discretion for the original purchaser. Labor, service calls, transportation, freight, or other charges associated with part installation are the responsibility of the consumer or dealer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
