Merits Health USA

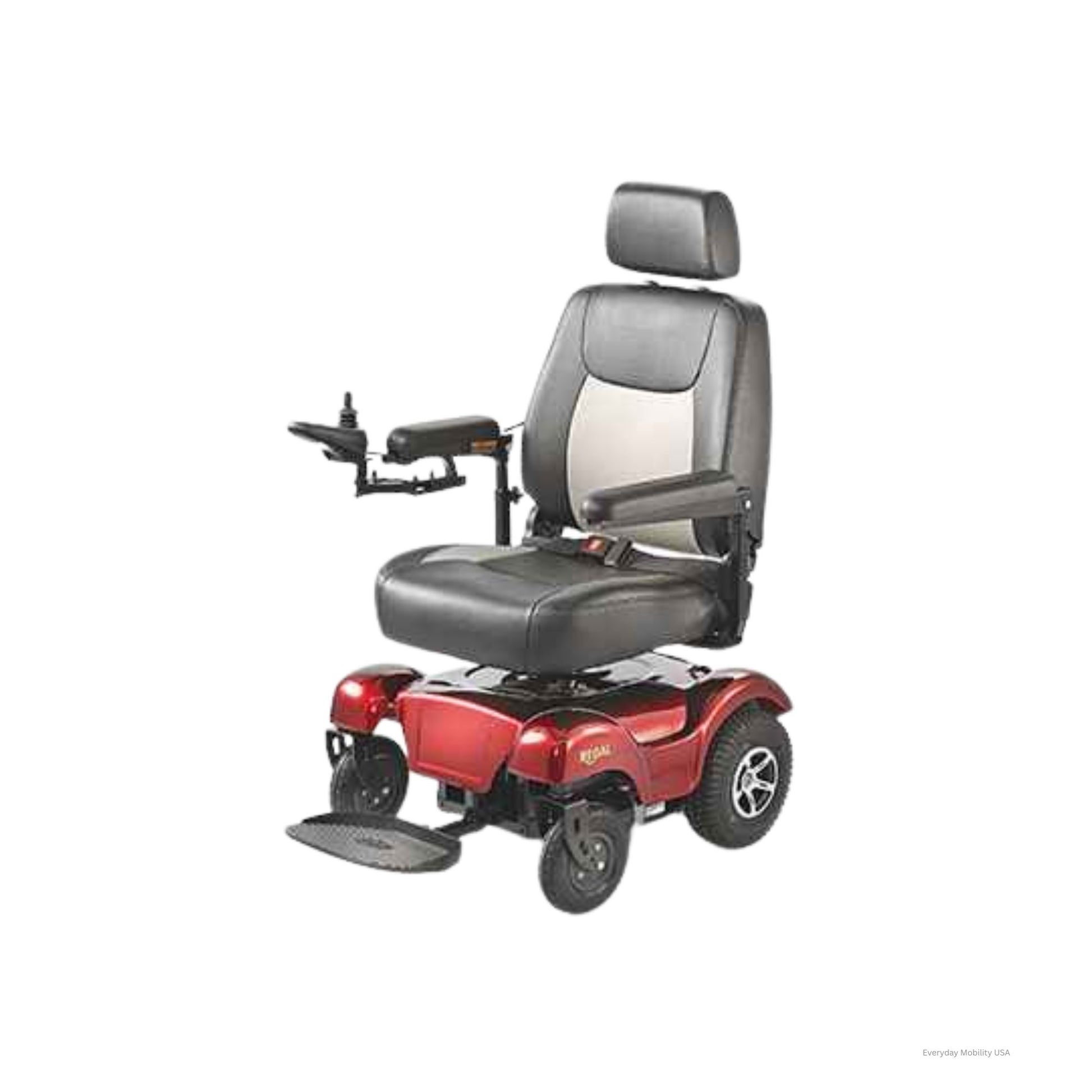

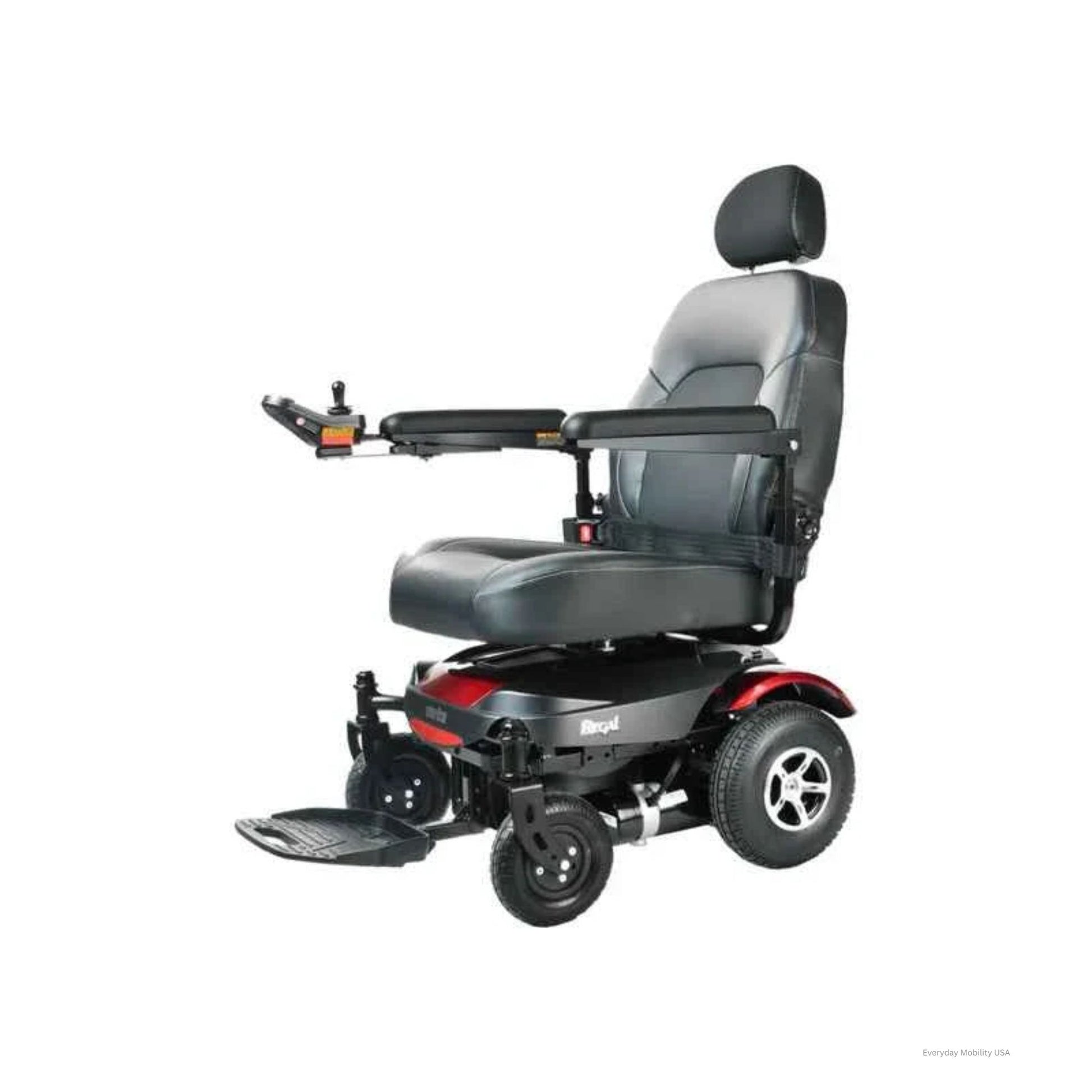

Merits Health Regal Full-Size Power Wheelchair
Merits Health Regal Full-Size Power Wheelchair
No reviews
Regular price
$2,796.00
Regular price
Sale price
$2,796.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
The Merits Health Regal P310 is a full-size Group 2 power wheelchair designed for dependable daily mobility, enhanced stability, and confident performance in both indoor and outdoor settings. Built on a compact rear-wheel-drive powerbase, it delivers smooth handling, strong traction, and a stable, controlled ride.
Powered by dual motors and operated through the advanced Dynamic LiNX controller, the Regal P310 reaches speeds of up to 5 mph and offers a driving range of up to 18 miles per charge. Batteries are included, so it arrives ready for use without the need for additional purchases. Knobby foam-filled tires, 3 inches of ground clearance, and a tight turning radius help support maneuverability across everyday indoor spaces and common outdoor surfaces.
Comfort features include ergonomic semi-reclining seating available in multiple widths, with up to 135° of recline for added positioning support and pressure relief. The Regal P310 offers a strong balance of comfort, control, and everyday reliability for riders who need a full-size power wheelchair built for daily use.
Features
- 300 lb weight capacity for dependable daily use
- Rear-wheel-drive (RWD) powerbase for stable handling
- Up to 5 mph top speed
- Up to 18 miles per charge

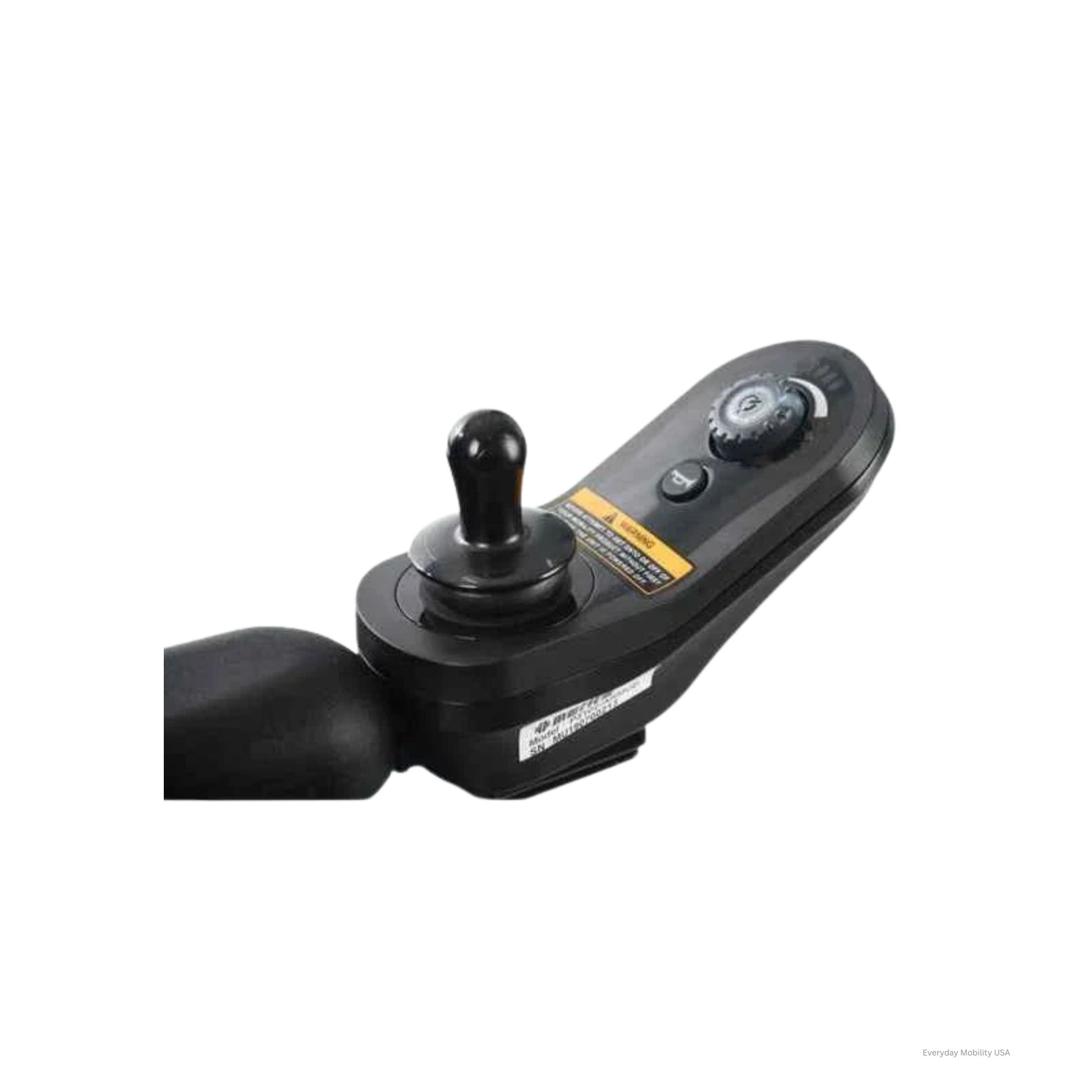

- Dynamic LiNX controller for easy programming and diagnostics
- 10" knobby foam-filled drive tires for superior traction
- 8" foam-filled front caster wheels
- 3" ground clearance for navigating everyday obstacles
- Semi-reclining ergonomic seating up to 135°
- Available Captain or Pan seat options
Specifications
- Product Number: P310
- Weight Capacity: 300 lbs
- Drive Train: Rear-Wheel Drive (RWD)
- Seat Type: Captain or Pan
- Seat Width Options: 16", 18", or 20"
- Seat Depth: 16" or 18"
- Backrest Height: 18" or 20"
- Seat-to-Floor Height: 20"–22" (Captain), 16.5"–18.5" (Pan)
- Overall Length: 39"
- Overall Width: 24"
- Overall Height: 18" or 20"
- Turning Radius: 21"
- Ground Clearance: 3"
- Total Weight: 197.5 lbs
- Maximum Speed: 5 mph
- Range Per Charge: Up to 18 miles
- Motors: Dual motors (Left & Right)
- Controller: Dynamic LiNX
- Batteries: (2 Included) 33Ah, U1 AGM
- Charger: 5A off-board
- Maximum Gradient: 12°
- Front Wheels: 8" foam-filled
- Drive Wheels: 10" foam-filled
- Rear Wheels: 3" anti-tippers
- HCPCS Codes: K0822 / K0823
- Color Options: Red
Manuals
View or download the official Merits Health Regal P310 owner’s manual below.
Download Regal P310 Manual (PDF)
PC Lite
Download Precision Comfort Lite Guide (PDF)
PC Gel
Download Precision Comfort Gel Guide (PDF)
Videos
Warranty
Warranty
Merits Health Products, Inc. provides a comprehensive warranty covering defects in materials or workmanship, beginning from the original date of consumer purchase. Warranty service will be provided after inspection by an authorized Merits representative.
5-Year Warranty
- Base Frame
- Seatbelt
18-Month Warranty
- Joystick / Power Module / Controller
- Motor / Gearbox / Brake Assembly
- Electrical Harnesses
- Angle Sensor
- Circuit Boards
- Charger
- Transaxle
- PC Cushion / Back / Positioning Accessories
13-Month Warranty
- Seat Post / Mount
- Power Seat Actuator
- Caster Beam
- Joystick Mounting Bracket
- Metal Seat Frame
- Anti-Tipper Assembly
- 31Ah or Larger Batteries
- Powered Footplate
- Armrest Bracket (metal part only)
- Caster Forks
6-Month Warranty
- Bearings / Bushings
- Front Riggings
- Non-Powered Footplate
- PC Cover
- Swivel Seat Mechanism
- Batteries less than 31Ah supplied by Merits
Pilot Staircase – 5-Year Warranty
- Motor Gear Box
- Over Speed Governor (OSG)
- Rails – Curved / Straight / Hinge
Pilot Staircase – 2-Year Warranty
- Non-Wear Components
- Circuit Boards
- Fasteners
- Electrical (Harnesses & Switches)
Warranty Exclusions
The following items are not covered under warranty:
- Tires & Tubes
- Fuses & Bulbs
- Battery Cases
- Plastic / Rubber Parts
- Motor Brushes
- Brake Pads
- Upholstery (Seat / Arm Pads / Padding)
- Painted Surfaces including Shrouds / Fenders
Warranty becomes invalid for:
- Acts of nature, lost or stolen units
- Commercial use
- Neglect, improper operation, and/or lack of maintenance or repair
- Units altered or serviced by unauthorized agencies
- Serial numbers removed or defaced
Parts Purchased Outside of Warranty
Parts purchased outside the warranty period have 90 days to report manufacturing defects.
Limited Lifetime Warranty
Merits Health Products, Inc. reserves the right to replace warranted parts at their discretion for the original purchaser. Labor, service calls, transportation, freight, or other charges associated with part installation are the responsibility of the consumer or dealer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
