Merits Health Roadster S4 Scooter
Merits Health Roadster S4 Scooter
No reviews
Regular price
$1,099.00
Regular price
Sale price
$1,099.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description

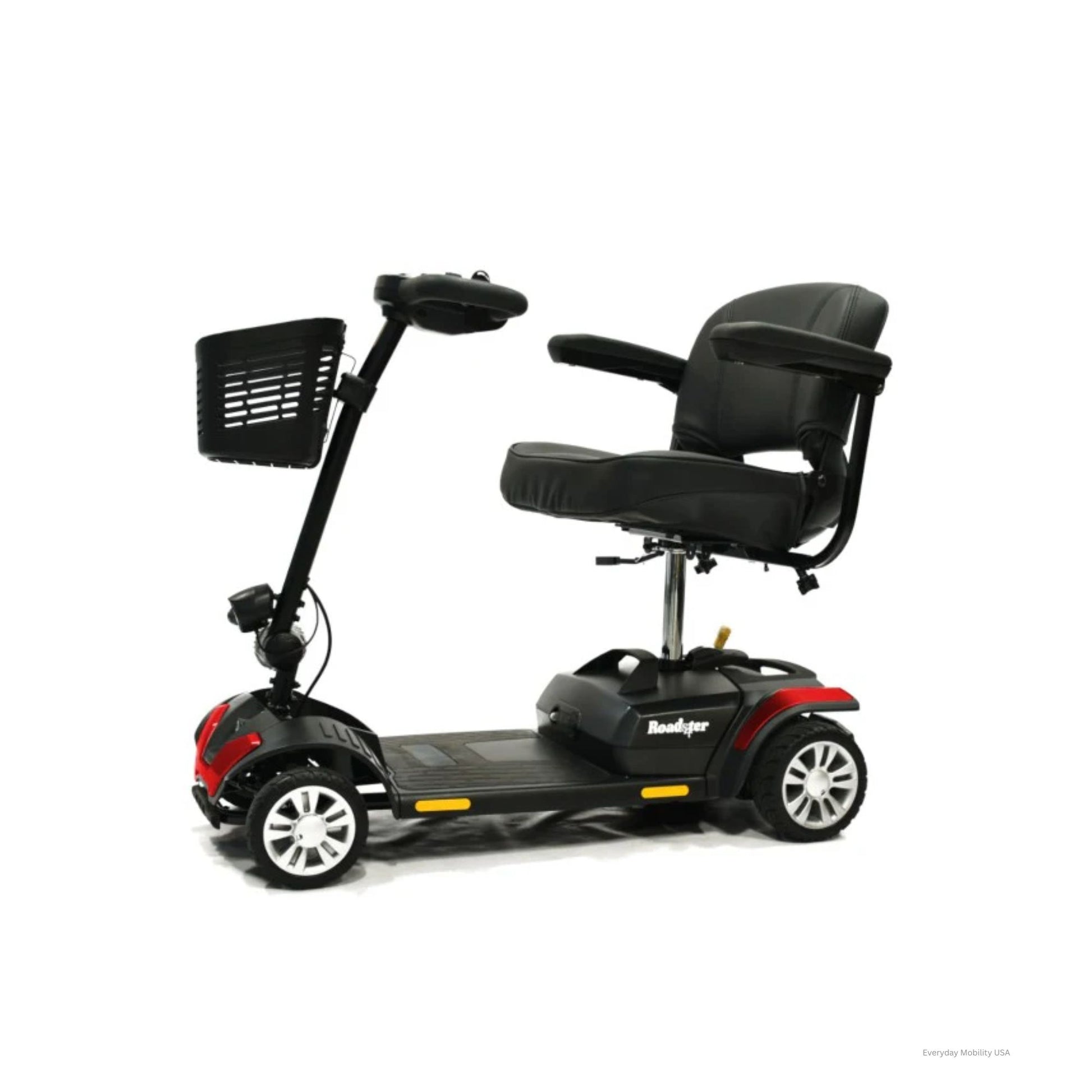

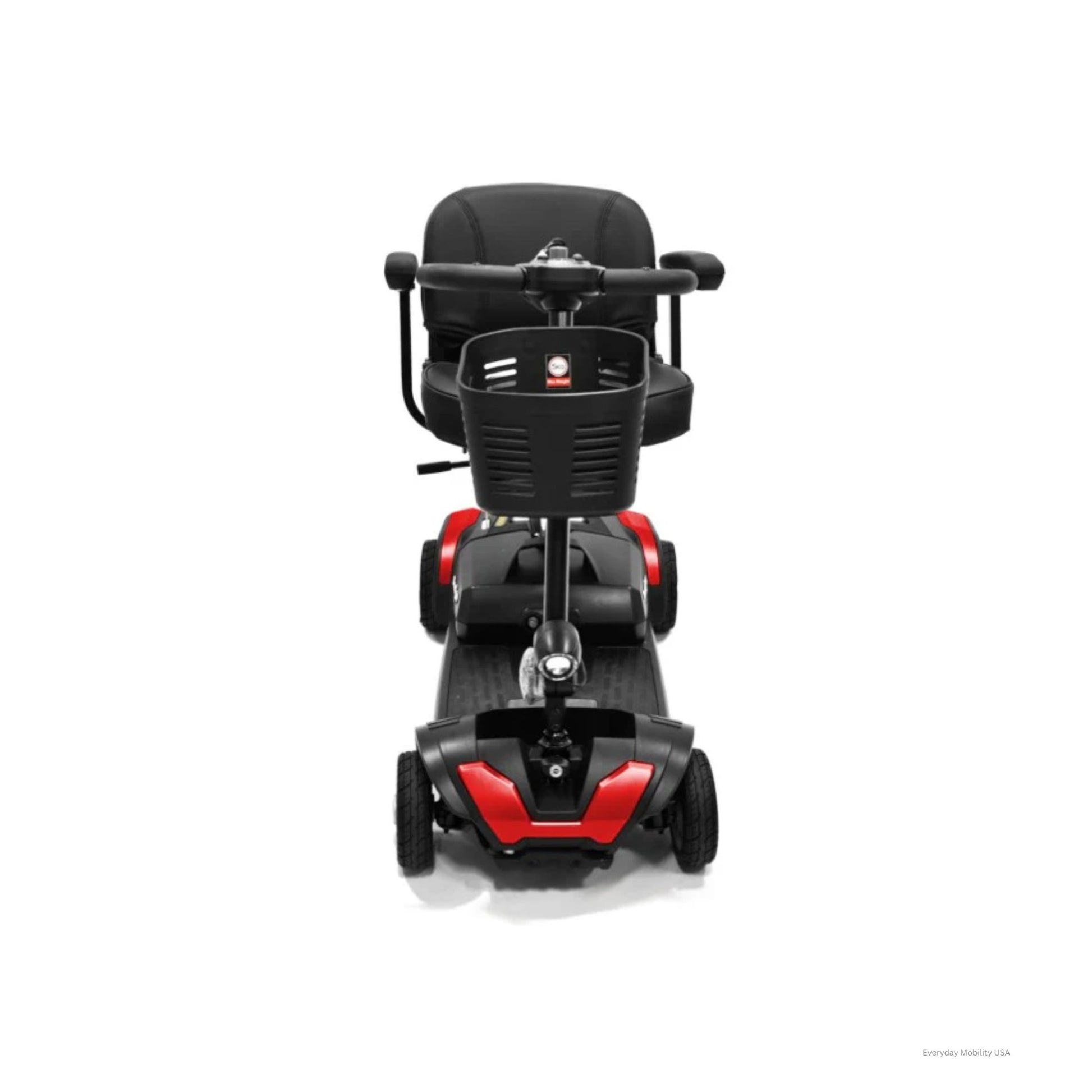

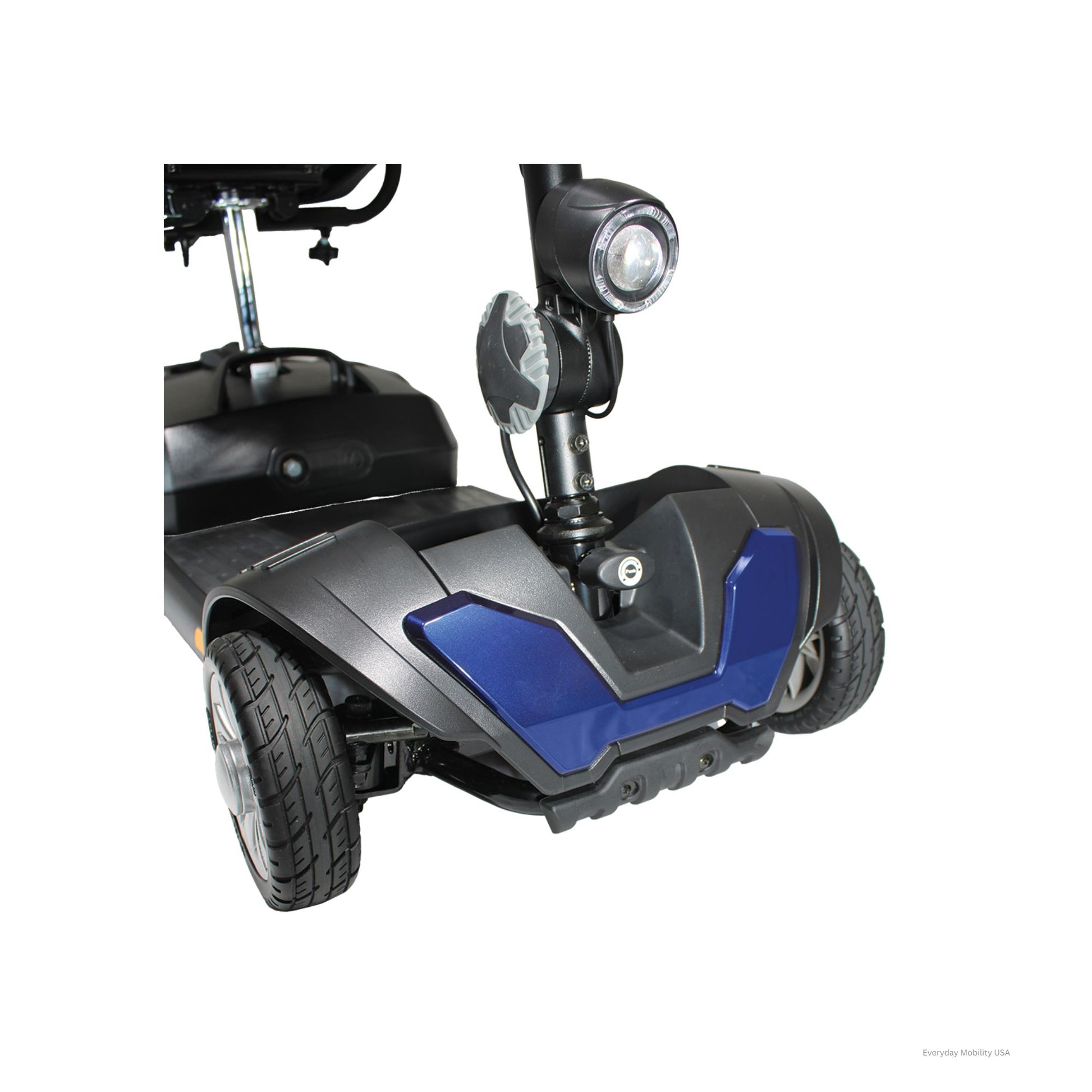

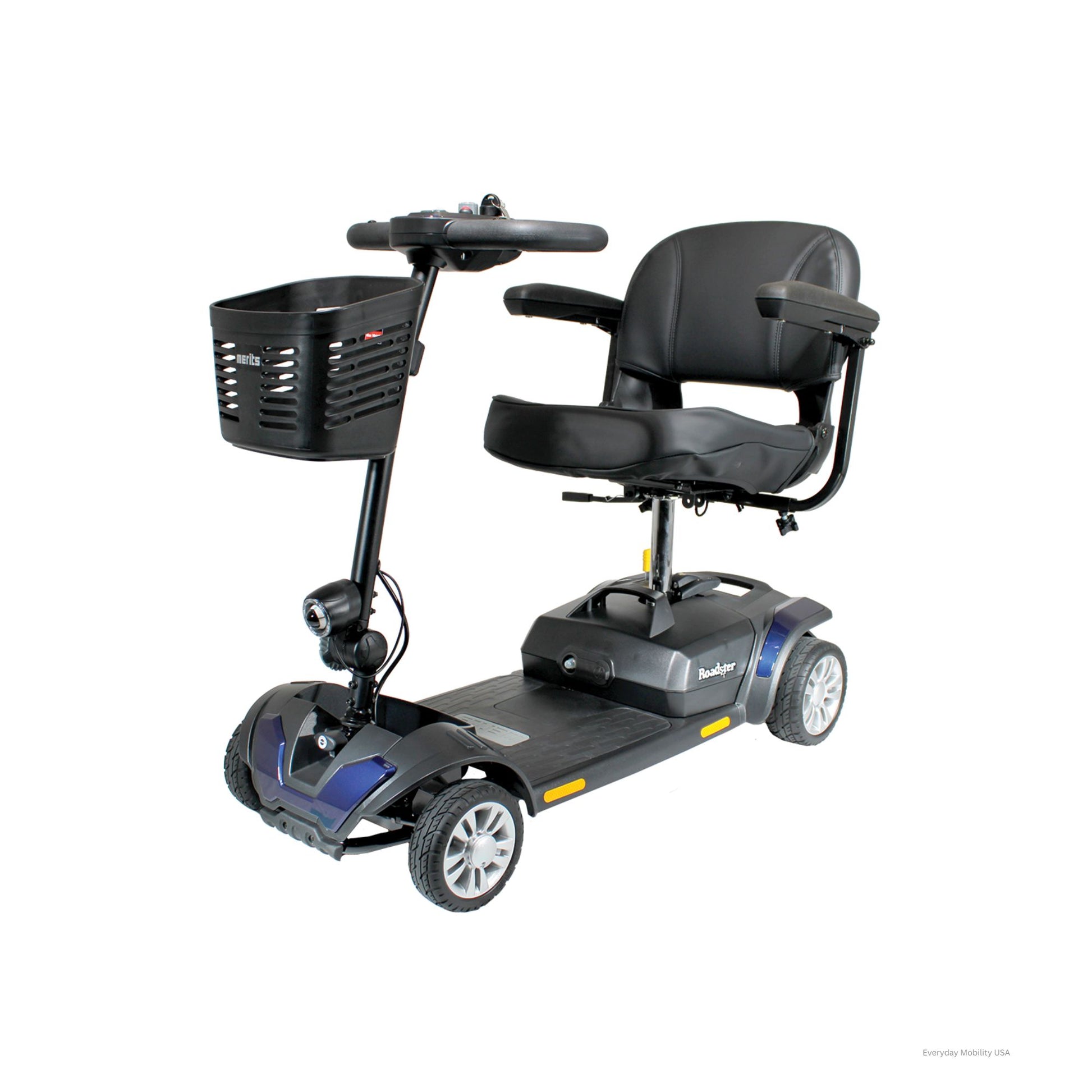

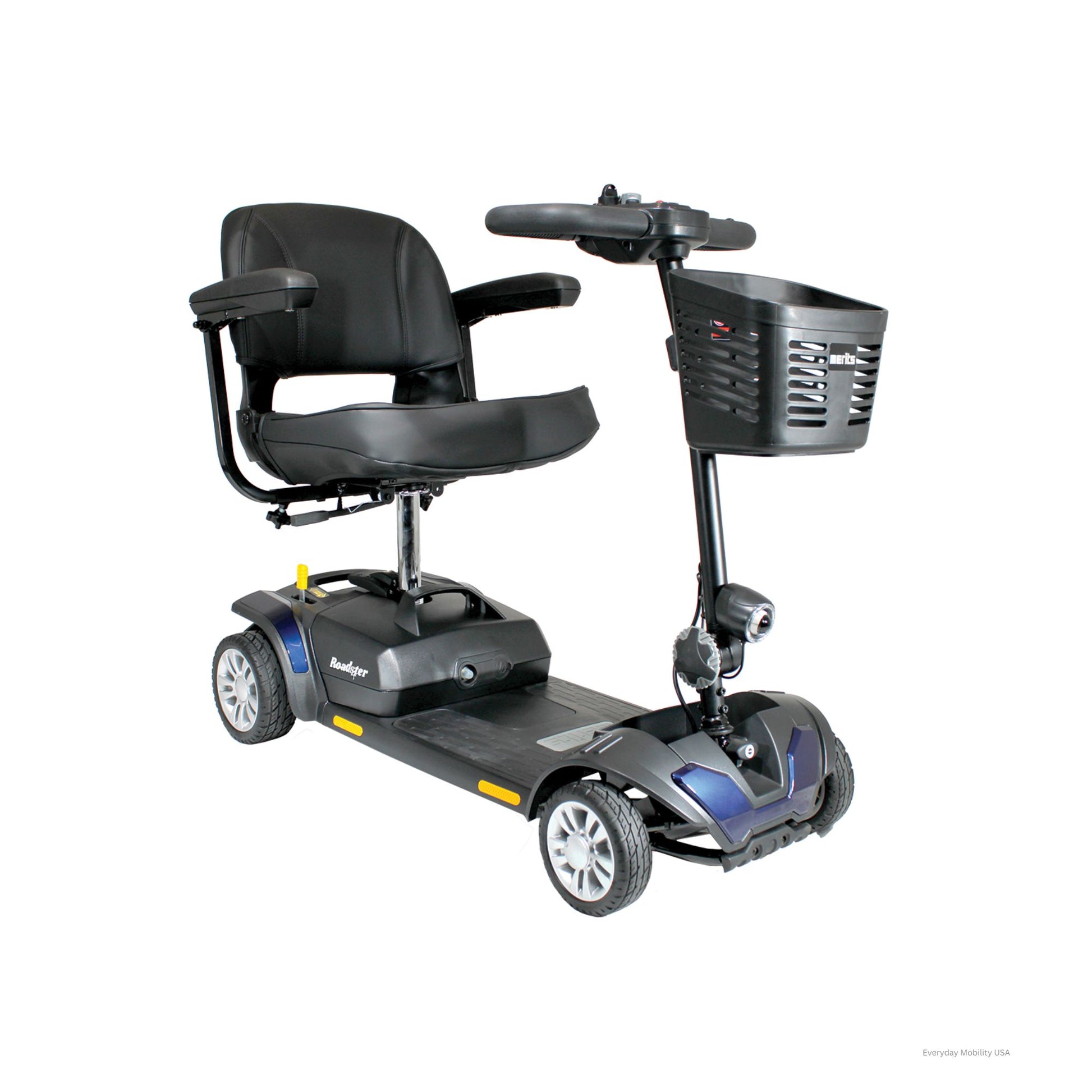

The Merits Health Roadster S4 is a compact 4-wheel travel mobility scooter designed for riders who want added stability without giving up portability. Ideal for errands, appointments, and everyday neighborhood use, it delivers a more planted, confident ride than many 3-wheel travel scooters while still remaining easy to transport and store.
Built for convenience, the Roadster S4 disassembles without tools into five lightweight pieces, with the heaviest piece weighing just 36 lbs. This makes loading, transport, and storage easier for both users and caregivers. Non-marking, puncture-proof tires and 2 inches of ground clearance help support smoother travel across a variety of everyday surfaces.
Comfort features include an 18-inch deluxe stadium seat, adjustable seat height and armrest width, and an angle-adjustable tiller for a more ergonomic driving position and easier transfers. A loop tiller with throttle lever supports simple palm or finger operation, while the auto-latching lockup design helps streamline transport and reassembly. Batteries are included, so the Roadster S4 arrives ready for everyday use right out of the box.
Features
- Four-wheel design provides increased stability

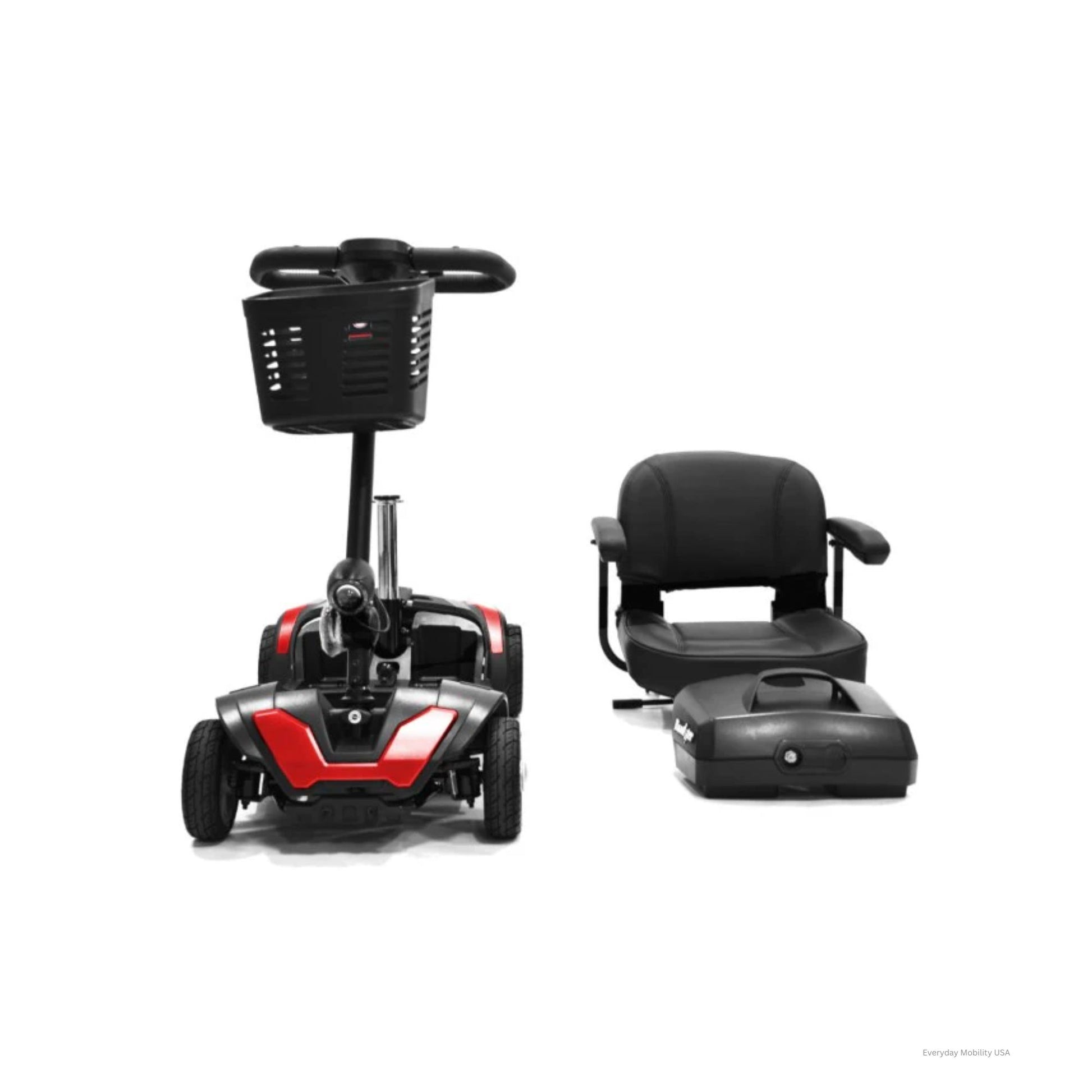

- Easily disassembles into five pieces for transport and storage
- 18" wide deluxe stadium seat
- Detachable battery pack
- Tiller angle adjustable for ergonomic driving and easier transfers

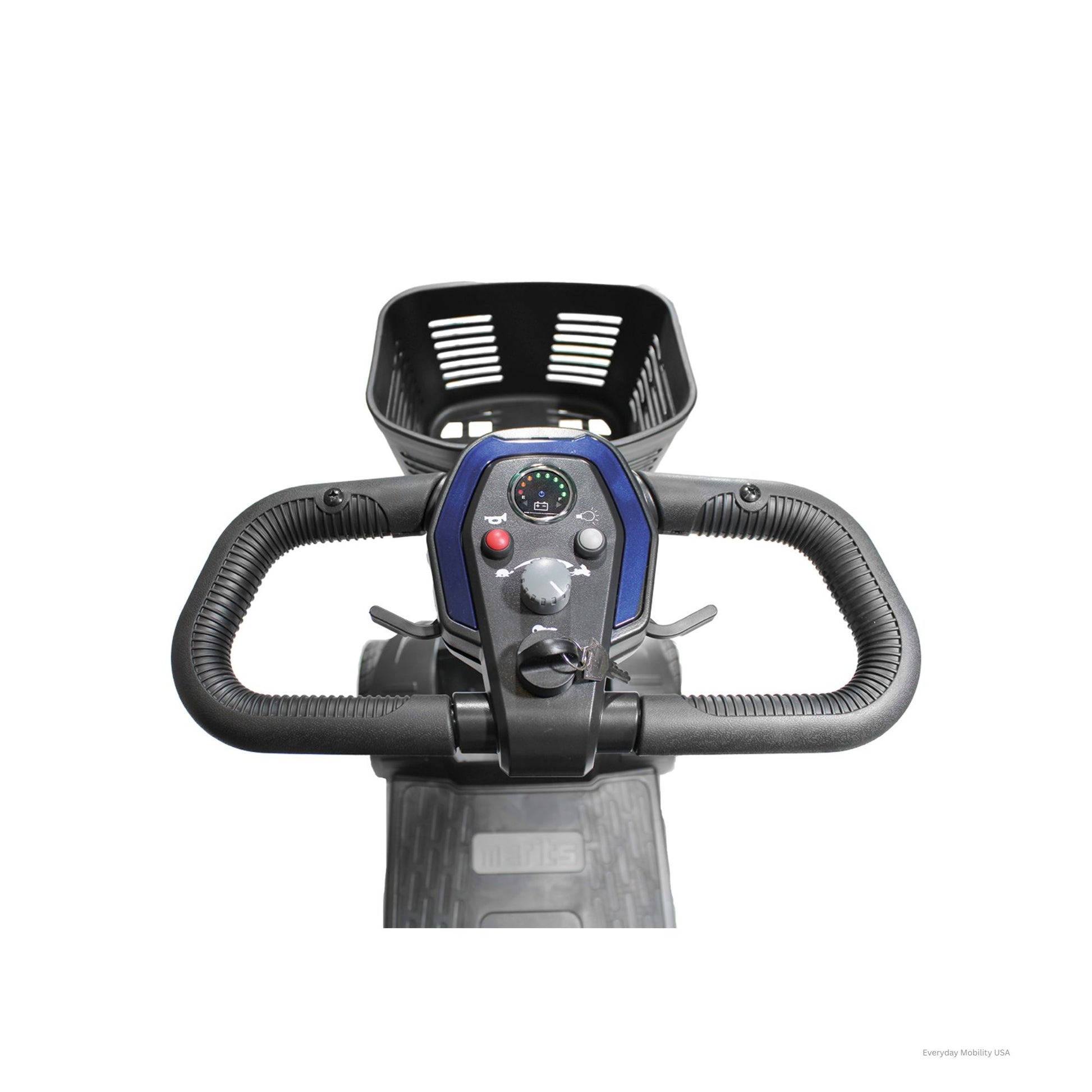

- Loop tiller with throttle lever for palm or finger operation
- Auto-latching lockup design for simplified transport
- Adjustable seat height and armrest width
- No tools required for setup
Specifications
- Weight Capacity: 300 lbs
- Maximum Speed: 4 mph
- Per-Charge Range: Up to 6 miles
- Drivetrain: Rear-Wheel Drive (RWD)
- Turning Radius: 43.3"
- Ground Clearance: 2"
- Overall Length: 30"
- Overall Width: 21"
- Overall Height: 36"
- Seat-to-Floor Height: 19" – 21"
- Seat-to-Deck Height: 16" – 18"
- Seat Width: 18"
- Seat Depth: 17"
- Backrest Height: 15"
- Weight of Heaviest Piece: 36 lbs
- Total Weight: 106 lbs
- Motor: DC 24V, 100W
- Controller: PG S-DRIVE 45A
- Battery Size: (2 Included) 12Ah ES12 AGM
- Charger: 1.8A off-board
- Maximum Gradient: 6°
- Front Wheels: 8"
- Drive Wheels: 8"
- HCPCS Code: K0800
- Color Option: Red
Manuals
Warranty
Warranty
Merits Health Products, Inc. provides a comprehensive warranty covering defects in materials or workmanship, beginning from the original date of consumer purchase. Warranty service will be provided after inspection by an authorized Merits representative.
5-Year Warranty
- Base Frame
- Seatbelt
18-Month Warranty
- Joystick / Power Module / Controller
- Motor / Gearbox / Brake Assembly
- Electrical Harnesses
- Angle Sensor
- Circuit Boards
- Charger
- Transaxle
- PC Cushion / Back / Positioning Accessories
13-Month Warranty
- Seat Post / Mount
- Power Seat Actuator
- Caster Beam
- Joystick Mounting Bracket
- Metal Seat Frame
- Anti-Tipper Assembly
- 31Ah or Larger Batteries
- Powered Footplate
- Armrest Bracket (metal part only)
- Caster Forks
6-Month Warranty
- Bearings / Bushings
- Front Riggings
- Non-Powered Footplate
- PC Cover
- Swivel Seat Mechanism
- Batteries less than 31Ah supplied by Merits
Pilot Staircase – 5-Year Warranty
- Motor Gear Box
- Over Speed Governor (OSG)
- Rails – Curved / Straight / Hinge
Pilot Staircase – 2-Year Warranty
- Non-Wear Components
- Circuit Boards
- Fasteners
- Electrical (Harnesses & Switches)
Warranty Exclusions
The following items are not covered under warranty:
- Tires & Tubes
- Fuses & Bulbs
- Battery Cases
- Plastic / Rubber Parts
- Motor Brushes
- Brake Pads
- Upholstery (Seat / Arm Pads / Padding)
- Painted Surfaces including Shrouds / Fenders
Warranty becomes invalid for:
- Acts of nature, lost or stolen units
- Commercial use
- Neglect, improper operation, and/or lack of maintenance or repair
- Units altered or serviced by unauthorized agencies
- Serial numbers removed or defaced
Parts Purchased Outside of Warranty
Parts purchased outside the warranty period have 90 days to report manufacturing defects.
Limited Lifetime Warranty
Merits Health Products, Inc. reserves the right to replace warranted parts at their discretion for the original purchaser. Labor, service calls, transportation, freight, or other charges associated with part installation are the responsibility of the consumer or dealer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
