Merits Health USA
Merits Health Roadster S3 Scooter
Merits Health Roadster S3 Scooter
No reviews
Regular price
$1,049.00
Regular price
Sale price
$1,049.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description

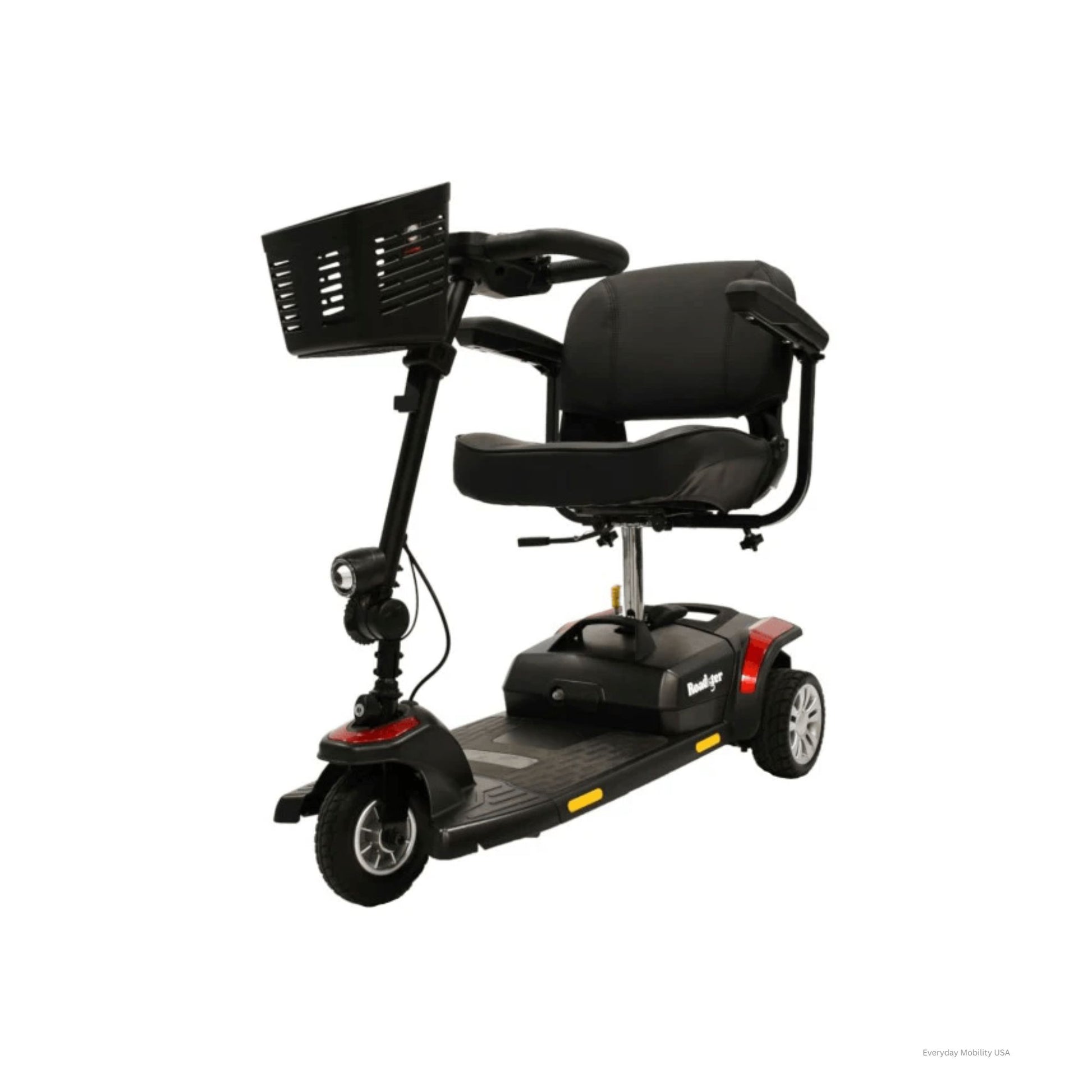

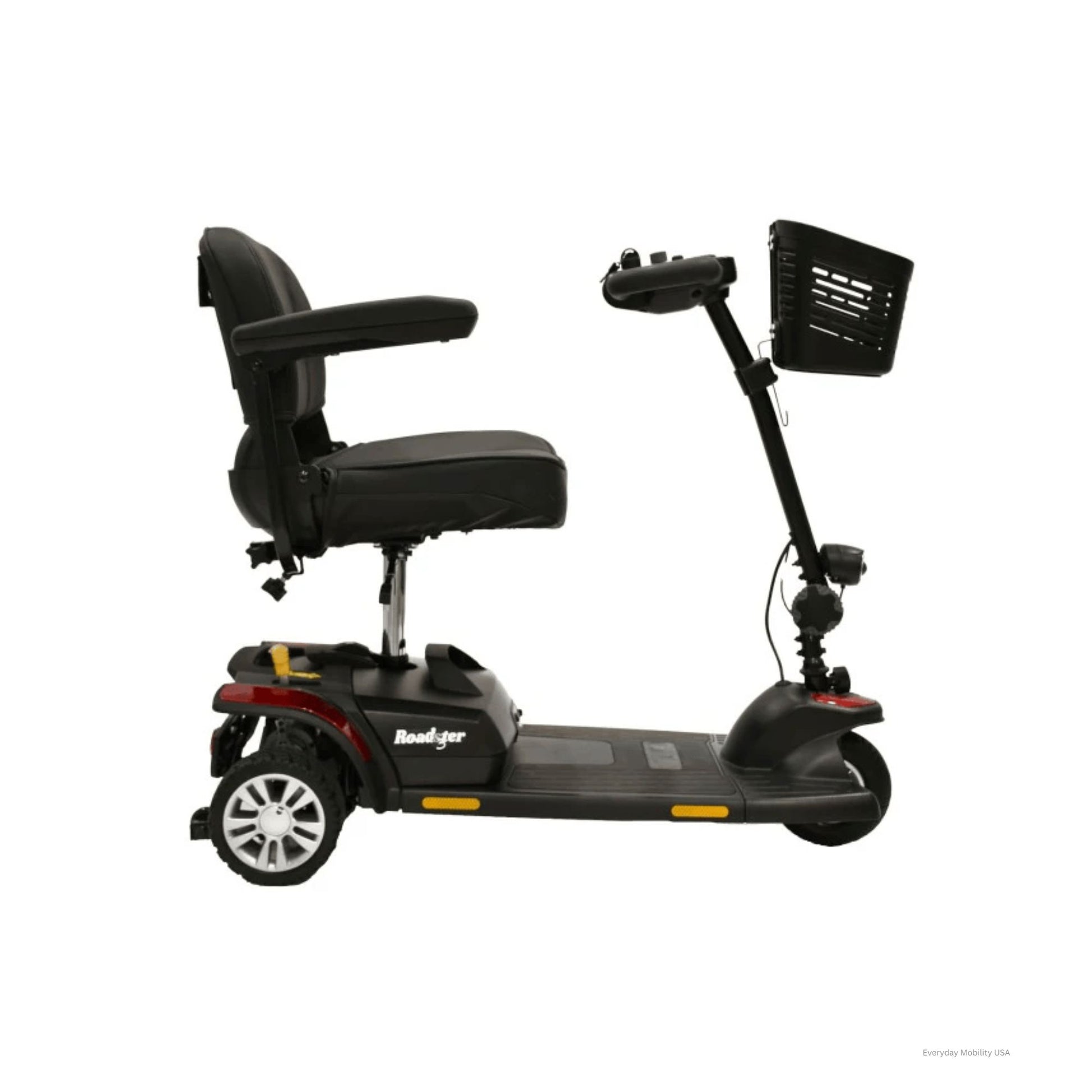

The Merits Health Roadster S3 is a compact 3-wheel mobility scooter built for easy everyday travel, indoor maneuverability, and simple transport. Designed for riders who want a lightweight, budget-friendly option, it works well for errands, appointments, and quick trips around town where agility matters most.

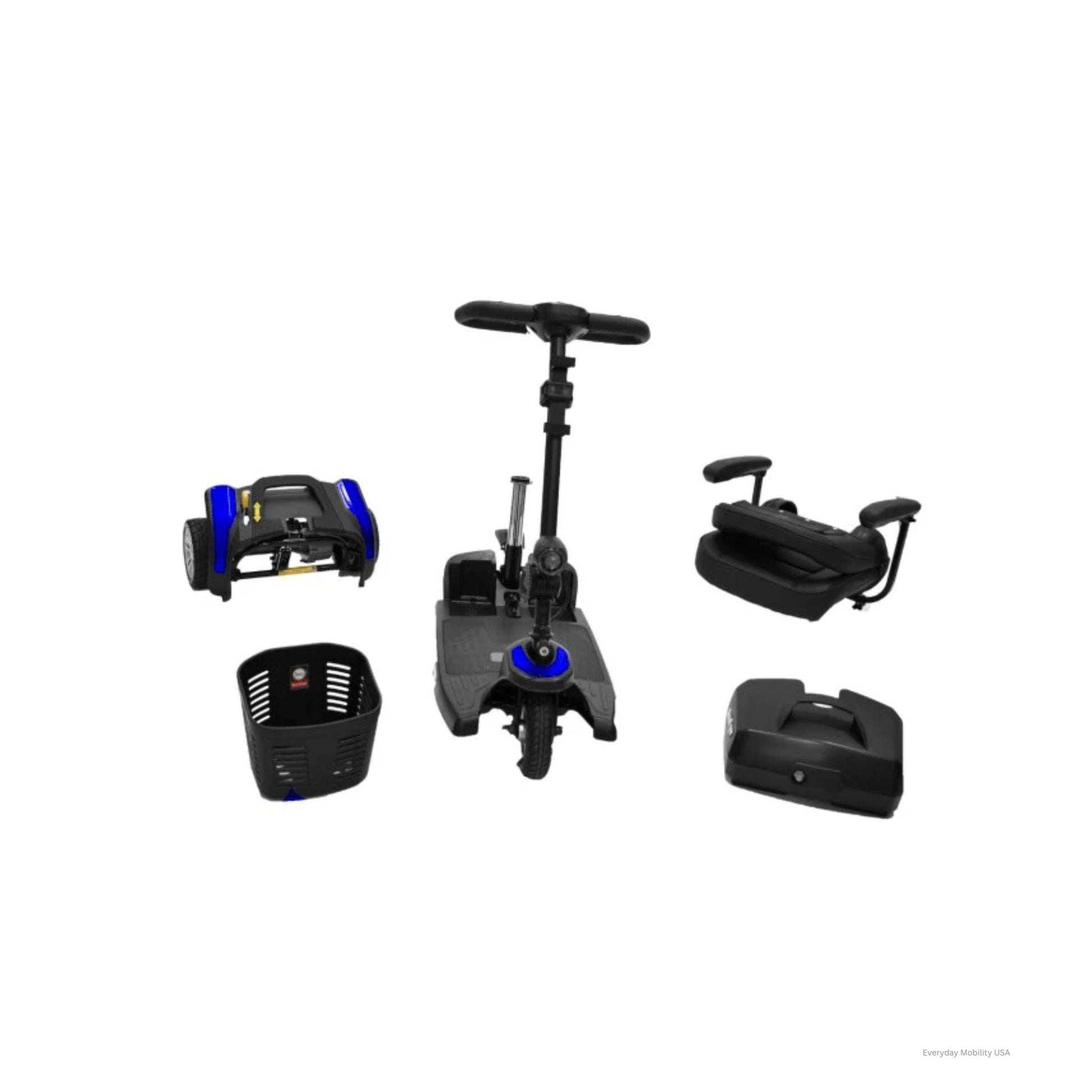

Its 3-wheel design provides a tighter turning radius than many 4-wheel mobility scooters, making the Roadster S3 especially useful in tighter indoor spaces and busy everyday environments. For transport and storage, it disassembles without tools into five manageable pieces, with the heaviest piece weighing just 29 lbs.
Comfort and ease of use come standard with an angle-adjustable tiller, a loop tiller for simple palm or finger control, and adjustable seat height and armrest width. A headlight and rear anti-tip wheels add everyday confidence, while included batteries allow the Roadster S3 to arrive ready for daily use right out of the box.
Features
- Tiller angle adjustable for ergonomic driving and easy transfers
- Loop tiller with throttle lever for palm or finger operation
- Auto-latching lockup design for easy transport and storage
- Detachable battery pack with built-in charging port
- Extra charging port under the dashboard for convenient plug-in
- Disassembles into five pieces with no tools required
- Adjustable seat height and armrest width
- Integrated headlight for improved visibility
- Rear anti-tip wheels help prevent backward tipping
Specifications
- Weight Capacity: 260 lbs
- Maximum Speed: 4 mph
- Per-Charge Range: Up to 12 miles
- Drivetrain: Rear-Wheel Drive (RWD)
- Turning Radius: 47"
- Ground Clearance: 2.2"
- Overall Length: 40.5"
- Overall Width: 25.5"
- Overall Height: 36.6"
- Seat-to-Ground Height: 19" – 21"
- Seat-to-Deck Height: 16" – 18"
- Seat Width: 18"
- Seat Depth: 18"
- Backrest Height from Seat: 14.5"
- Basket Size: 12.5"W × 10"H × 6"D
- Weight of Heaviest Piece: 29 lbs
- Total Weight: 103 lbs
- Motor: DC 24V, 180W
- Controller: PG S-DRIVE 45A
- Battery Size: (2 Included) 12Ah ES12 AGM
- Charger: 1.8A off-board
- Maximum Gradient: 6°
- Front Wheels: 7"
- Drive Wheels: 8"
- HCPCS Code: N/A
- Color Options: Red, Blue
Manuals
Warranty
Warranty
Merits Health Products, Inc. provides a comprehensive warranty covering defects in materials or workmanship, beginning from the original date of consumer purchase. Warranty service will be provided after inspection by an authorized Merits representative.
5-Year Warranty
- Base Frame
- Seatbelt
18-Month Warranty
- Joystick / Power Module / Controller
- Motor / Gearbox / Brake Assembly
- Electrical Harnesses
- Angle Sensor
- Circuit Boards
- Charger
- Transaxle
- PC Cushion / Back / Positioning Accessories
13-Month Warranty
- Seat Post / Mount
- Power Seat Actuator
- Caster Beam
- Joystick Mounting Bracket
- Metal Seat Frame
- Anti-Tipper Assembly
- 31Ah or Larger Batteries
- Powered Footplate
- Armrest Bracket (metal part only)
- Caster Forks
6-Month Warranty
- Bearings / Bushings
- Front Riggings
- Non-Powered Footplate
- PC Cover
- Swivel Seat Mechanism
- Batteries less than 31Ah supplied by Merits
Pilot Staircase – 5-Year Warranty
- Motor Gear Box
- Over Speed Governor (OSG)
- Rails – Curved / Straight / Hinge
Pilot Staircase – 2-Year Warranty
- Non-Wear Components
- Circuit Boards
- Fasteners
- Electrical (Harnesses & Switches)
Warranty Exclusions
The following items are not covered under warranty:
- Tires & Tubes
- Fuses & Bulbs
- Battery Cases
- Plastic / Rubber Parts
- Motor Brushes
- Brake Pads
- Upholstery (Seat / Arm Pads / Padding)
- Painted Surfaces including Shrouds / Fenders
Warranty becomes invalid for:
- Acts of nature, lost or stolen units
- Commercial use
- Neglect, improper operation, and/or lack of maintenance or repair
- Units altered or serviced by unauthorized agencies
- Serial numbers removed or defaced
Parts Purchased Outside of Warranty
Parts purchased outside the warranty period have 90 days to report manufacturing defects.
Limited Lifetime Warranty
Merits Health Products, Inc. reserves the right to replace warranted parts at their discretion for the original purchaser. Labor, service calls, transportation, freight, or other charges associated with part installation are the responsibility of the consumer or dealer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
