Description
The Merits Health Pioneer 4 is a heavy-duty 4-wheel mobility scooter designed for riders who need added stability, extended range, and dependable everyday durability. Built on a robust one-piece frame with a 400 lb. weight capacity, it delivers a confident ride for both indoor and outdoor use.
Comfort and control come standard with a hydraulic angle-adjustable tiller and a full-size adjustable captain’s seat with padded foam armrests that adjust for height, width, and angle. Large 10-inch flat-free tires, 4 inches of ground clearance, and a steel bumper help support smoother travel across uneven surfaces while adding everyday protection.
Safety and visibility features include headlights, taillights, hazard lights, turn signals, and rear anti-tippers. With a top speed of 5 mph and a driving range of up to 18 miles per charge, the Pioneer 4 is built for dependable daily mobility. Batteries are included, so it arrives ready for use without the need for additional purchases.
Features
- Heavy-duty one-piece frame supports up to 400 lbs
- Steel bumper comes standard for added protection

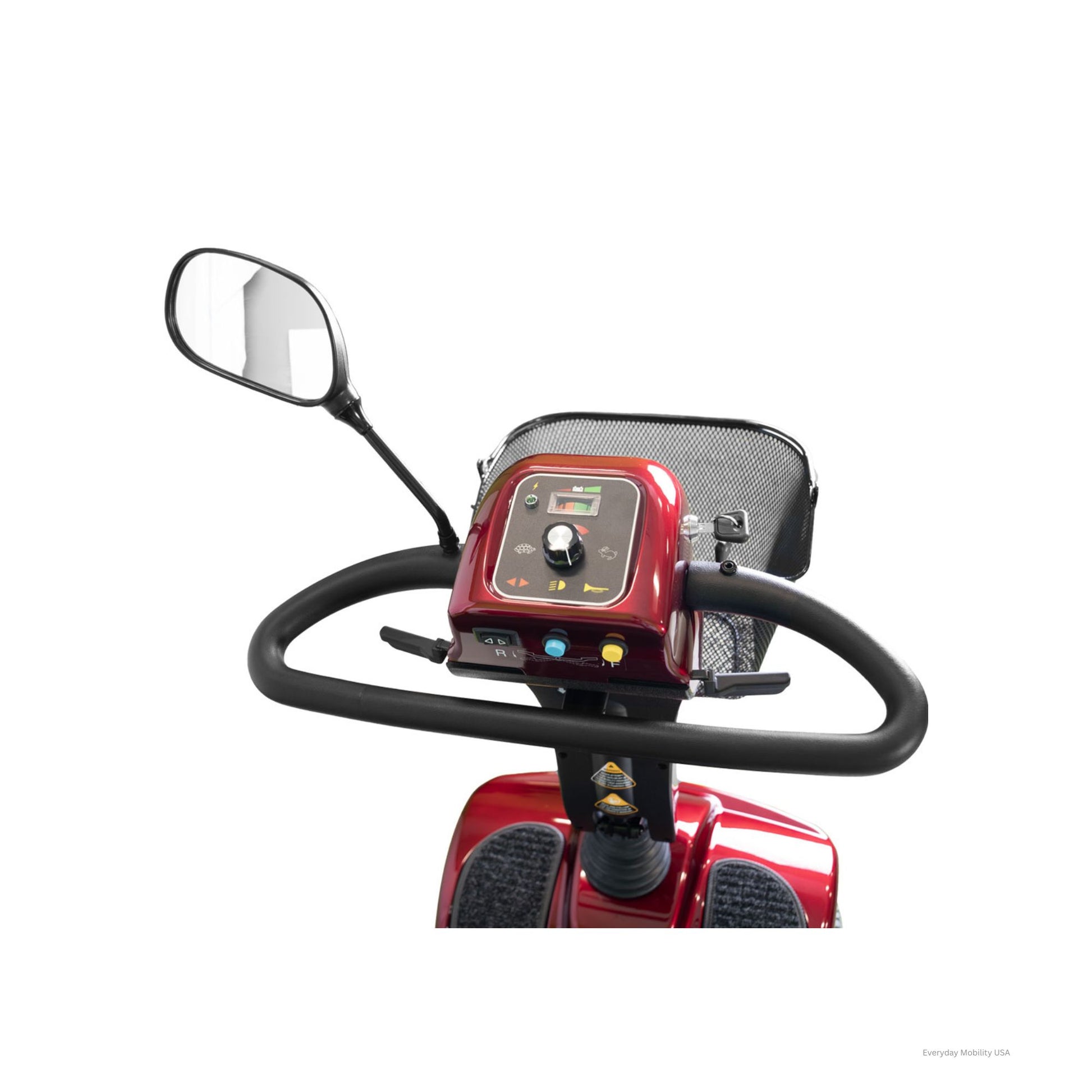

- Hydraulic, angle-adjustable tiller
- Adjustable captain’s seat for enhanced comfort
- Padded foam armrests adjust for height, width, and angle
- Large 10" flat-free tires for smooth outdoor performance
- Integrated headlights and taillights
- Hazard lights and turn signals for increased visibility
- Rear anti-tippers help prevent backward tipping
- Four-wheel design offers stability with improved maneuverability
- Range of up to 18 miles per charge
Specifications
- Product Number: S141
- Weight Capacity: 400 lbs
- Drivetrain: Rear-Wheel Drive (RWD)
- Maximum Speed: 5 mph
- Per-Charge Range: Up to 18 miles
- Battery Size: (2 Included) 33Ah, U1 AGM
- Ground Clearance: 4"
- Turning Radius: 52"
- Overall Length: 48"
- Overall Width: 23"
- Overall Height: 45.5"
- Seat-to-Ground Height: 25" – 28"
- Seat-to-Deck Height: 16" – 19"
- Seat Width: 20"
- Seat Depth: 20"
- Backrest Height: 20"
- Total Weight: 189 lbs
- Motor: DC 24V, 250W
- Controller: Dynamic Rhino2 90A
- Charger: 5A off-board
- Maximum Gradient: 8°
- Front Wheels: 10" flat-free
- Drive Wheels: 10" flat-free
- HCPCS Code: K0899
- Color Options: Red, Blue
Manuals
Warranty
Warranty
Merits Health Products, Inc. provides a comprehensive warranty covering defects in materials or workmanship, beginning from the original date of consumer purchase. Warranty service will be provided after inspection by an authorized Merits representative.
5-Year Warranty
- Base Frame
- Seatbelt
18-Month Warranty
- Joystick / Power Module / Controller
- Motor / Gearbox / Brake Assembly
- Electrical Harnesses
- Angle Sensor
- Circuit Boards
- Charger
- Transaxle
- PC Cushion / Back / Positioning Accessories
13-Month Warranty
- Seat Post / Mount
- Power Seat Actuator
- Caster Beam
- Joystick Mounting Bracket
- Metal Seat Frame
- Anti-Tipper Assembly
- 31Ah or Larger Batteries
- Powered Footplate
- Armrest Bracket (metal part only)
- Caster Forks
6-Month Warranty
- Bearings / Bushings
- Front Riggings
- Non-Powered Footplate
- PC Cover
- Swivel Seat Mechanism
- Batteries less than 31Ah supplied by Merits
Pilot Staircase – 5-Year Warranty
- Motor Gear Box
- Over Speed Governor (OSG)
- Rails – Curved / Straight / Hinge
Pilot Staircase – 2-Year Warranty
- Non-Wear Components
- Circuit Boards
- Fasteners
- Electrical (Harnesses & Switches)
Warranty Exclusions
The following items are not covered under warranty:
- Tires & Tubes
- Fuses & Bulbs
- Battery Cases
- Plastic / Rubber Parts
- Motor Brushes
- Brake Pads
- Upholstery (Seat / Arm Pads / Padding)
- Painted Surfaces including Shrouds / Fenders
Warranty becomes invalid for:
- Acts of nature, lost or stolen units
- Commercial use
- Neglect, improper operation, and/or lack of maintenance or repair
- Units altered or serviced by unauthorized agencies
- Serial numbers removed or defaced
Parts Purchased Outside of Warranty
Parts purchased outside the warranty period have 90 days to report manufacturing defects.
Limited Lifetime Warranty
Merits Health Products, Inc. reserves the right to replace warranted parts at their discretion for the original purchaser. Labor, service calls, transportation, freight, or other charges associated with part installation are the responsibility of the consumer or dealer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
