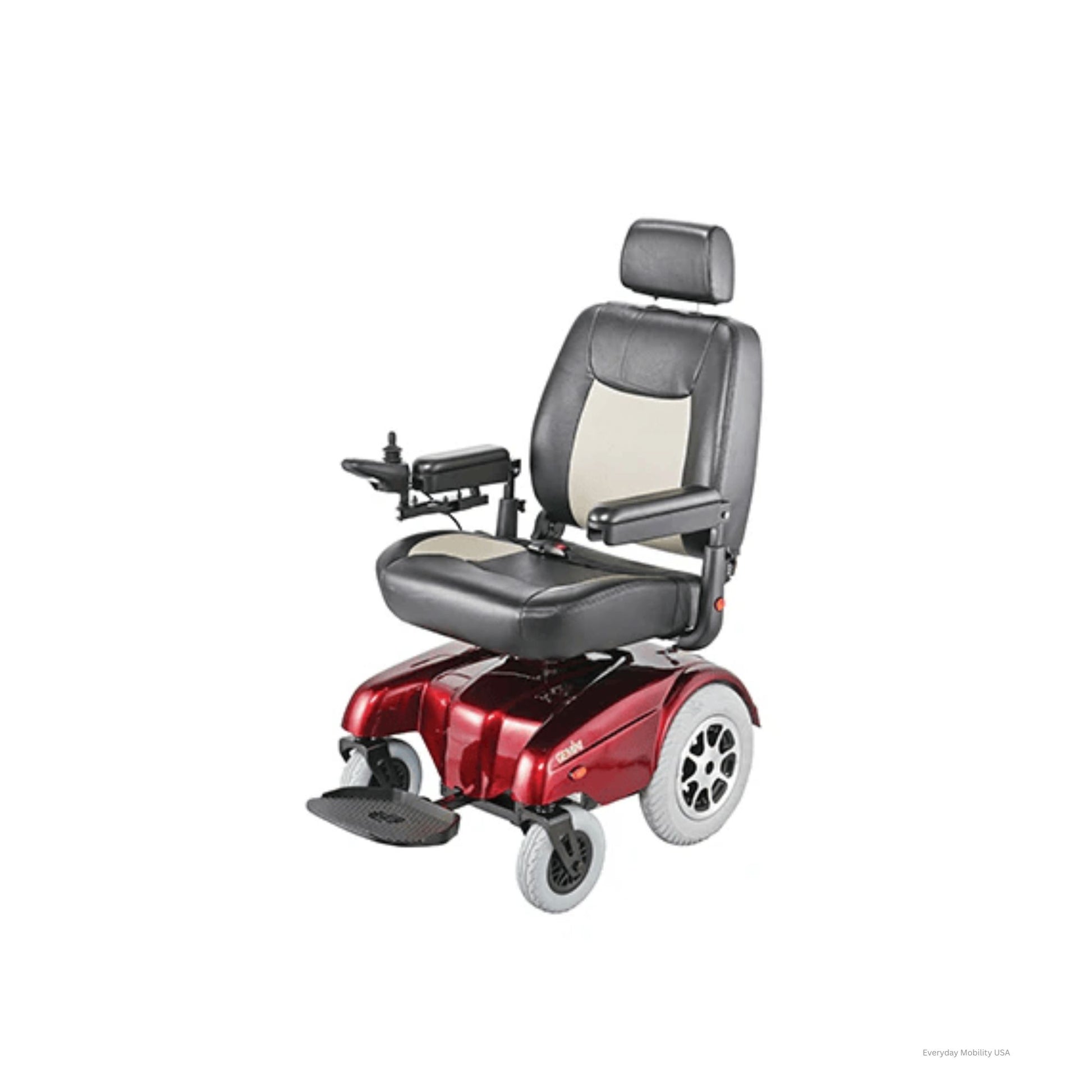

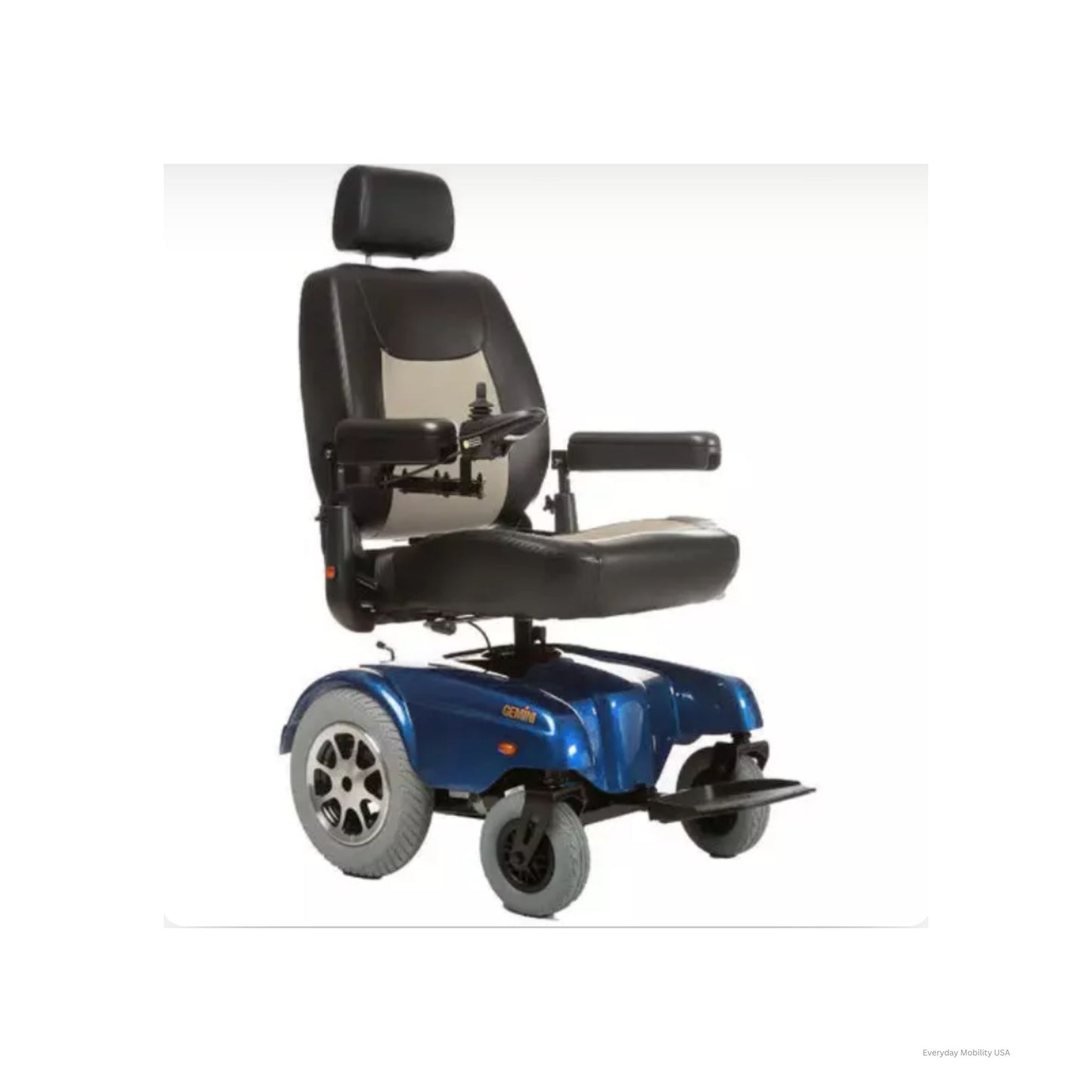

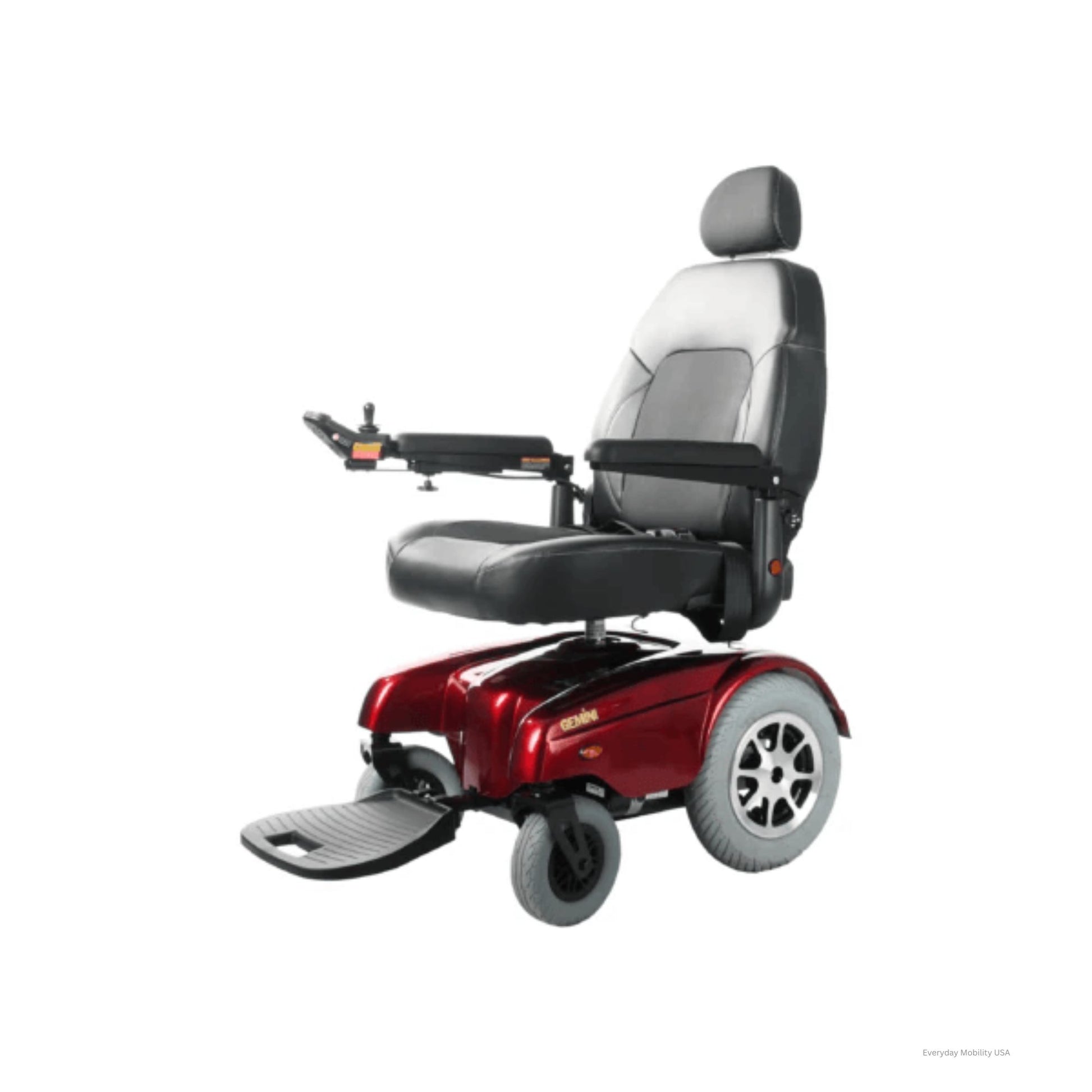

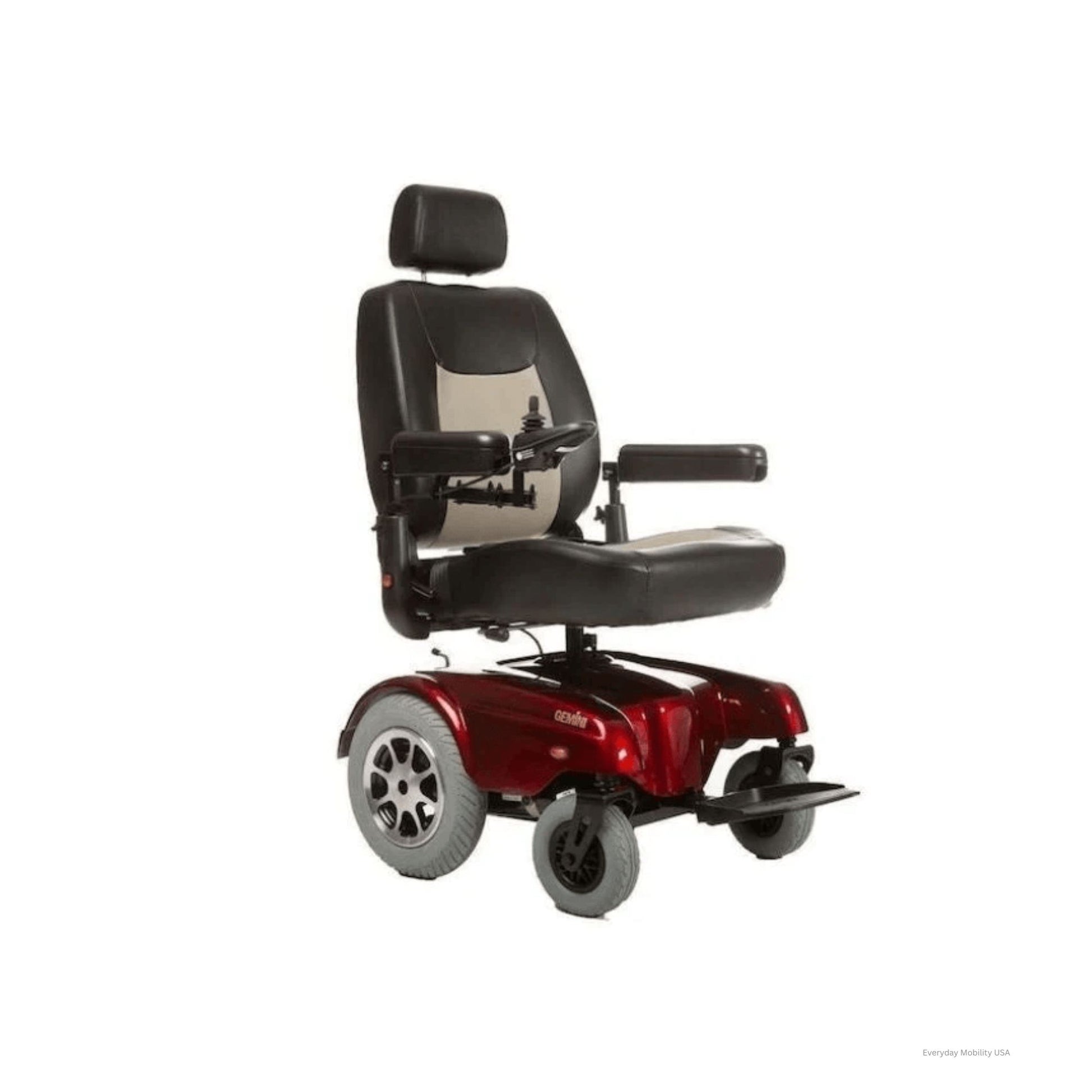

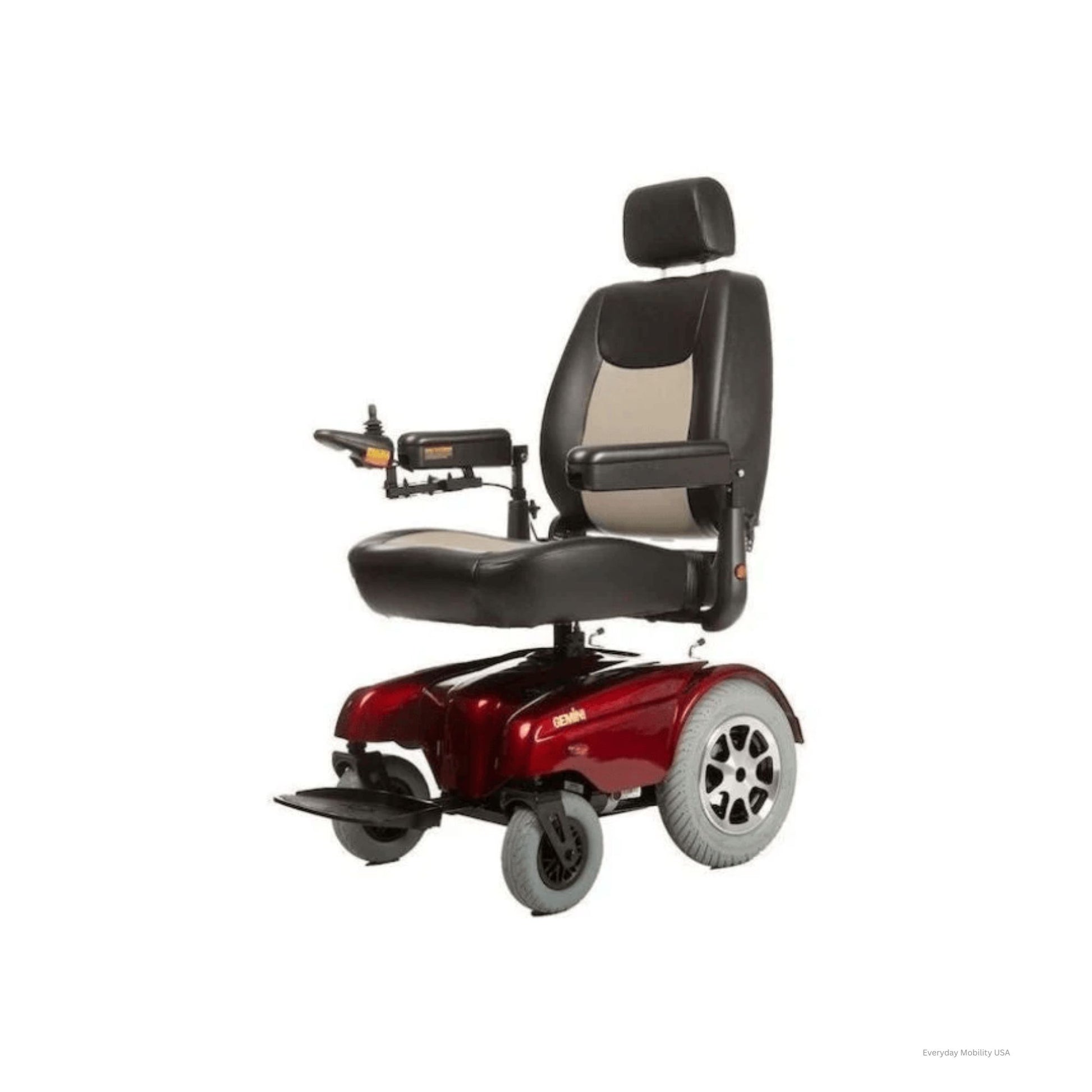

Merits Health Gemini Power Wheelchair w/Power Seat Lift
Merits Health Gemini Power Wheelchair w/Power Seat Lift
No reviews
Regular price
$4,071.00
Regular price
Sale price
$4,071.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
The Merits Health Gemini P301 with Power Elevating Seat is a heavy-duty rear-wheel-drive power wheelchair designed for riders who need higher weight capacity along with added everyday accessibility. With a 450 lb. weight capacity and a 5-inch power elevating seat option, it helps support easier transfers, improved reach to counters and shelves, and more comfortable day-to-day interaction at different heights.
Built on a true Group 2 powerbase, the Gemini delivers predictable handling and durable everyday performance. Its rear-wheel-drive design and 35-inch turning radius provide steady control in a variety of indoor and outdoor settings, while large 14-inch foam-filled drive tires help enhance traction across common surfaces.
Comfort features include an ergonomic semi-reclining seat with up to 135° of recline to support positioning and pressure relief during extended use. Rated for speeds up to 5 mph with a driving range of up to 20 miles per charge, batteries are sold separately, allowing users to choose the battery configuration that best fits their needs. The Gemini P301 with Power Elevating Seat offers a strong balance of heavy-duty support, accessibility, and dependable daily mobility.
Features
- Heavy-duty Group 2 power wheelchair with 450 lb. weight capacity
- Optional 5" power elevating seat for improved accessibility and transfers
- True rear-wheel-drive (RWD) design for stable, predictable handling
- Ergonomic semi-reclining seat with up to 135° recline
- 14" foam-filled drive tires for improved traction
- 35" turning radius for indoor and community maneuverability
- Rated up to 5 mph with a range of up to 20 miles per charge
Specifications
- Product Number: P301
- Weight Capacity: 450 lbs
- Drive Train: Rear-Wheel Drive (RWD)
- Seat Type: Captain or Pan (powered seat option)
- Seat Width: 21.75" (20" and 22" options available)
- Seat Depth: 18" – 22"
- Backrest Height: 21.5"
- Seat-to-Floor Height: 23" (with power elevating seat option)
- Overall Length: 29.5"
- Overall Width: 28"
- Overall Height: 42.75"
- Turning Radius: 35"
- Ground Clearance: 2.5"
- Total Weight: 242 lbs
- Weight of Heaviest Piece: 126 lbs
- Maximum Speed: 5 mph
- Range Per Charge: Up to 20 miles
- Motor: DC 24V / 240W
- Controller: P&G VR2 60A
- Batteries: (2 required) 55Ah, 22NF, 12V
- Charger: 5A off-board
- Maximum Gradient: 10°
- Front Wheels: 8" foam-filled
- Drive Wheels: 14" foam-filled
- Rear Wheels: 4" anti-tippers
- HCPCS Codes: K0824 / K0825
- Color Options: Red, Blue
Manuals
View or download the official Merits Health Gemini P301 owner’s manual below.
Warranty
Warranty
Merits Health Products, Inc. provides a comprehensive warranty covering defects in materials or workmanship, beginning from the original date of consumer purchase. Warranty service will be provided after inspection by an authorized Merits representative.
5-Year Warranty
- Base Frame
- Seatbelt
18-Month Warranty
- Joystick / Power Module / Controller
- Motor / Gearbox / Brake Assembly
- Electrical Harnesses
- Angle Sensor
- Circuit Boards
- Charger
- Transaxle
- PC Cushion / Back / Positioning Accessories
13-Month Warranty
- Seat Post / Mount
- Power Seat Actuator
- Caster Beam
- Joystick Mounting Bracket
- Metal Seat Frame
- Anti-Tipper Assembly
- 31Ah or Larger Batteries
- Powered Footplate
- Armrest Bracket (metal part only)
- Caster Forks
6-Month Warranty
- Bearings / Bushings
- Front Riggings
- Non-Powered Footplate
- PC Cover
- Swivel Seat Mechanism
- Batteries less than 31Ah supplied by Merits
Pilot Staircase – 5-Year Warranty
- Motor Gear Box
- Over Speed Governor (OSG)
- Rails – Curved / Straight / Hinge
Pilot Staircase – 2-Year Warranty
- Non-Wear Components
- Circuit Boards
- Fasteners
- Electrical (Harnesses & Switches)
Warranty Exclusions
The following items are not covered under warranty:
- Tires & Tubes
- Fuses & Bulbs
- Battery Cases
- Plastic / Rubber Parts
- Motor Brushes
- Brake Pads
- Upholstery (Seat / Arm Pads / Padding)
- Painted Surfaces including Shrouds / Fenders
Warranty becomes invalid for:
- Acts of nature, lost or stolen units
- Commercial use
- Neglect, improper operation, and/or lack of maintenance or repair
- Units altered or serviced by unauthorized agencies
- Serial numbers removed or defaced
Parts Purchased Outside of Warranty
Parts purchased outside the warranty period have 90 days to report manufacturing defects.
Limited Lifetime Warranty
Merits Health Products, Inc. reserves the right to replace warranted parts at their discretion for the original purchaser. Labor, service calls, transportation, freight, or other charges associated with part installation are the responsibility of the consumer or dealer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
