EasyStand

EasyStand Evolv XT Package Deals

$7,893.00

Sale Sold out

Shipping calculated at checkout.

Package PK209- Minimum Support Package PK210 - Moderate Support Package PK211- Maximum Support Package PK212 - Minimum Support Package (Mobile)

View full details

Description

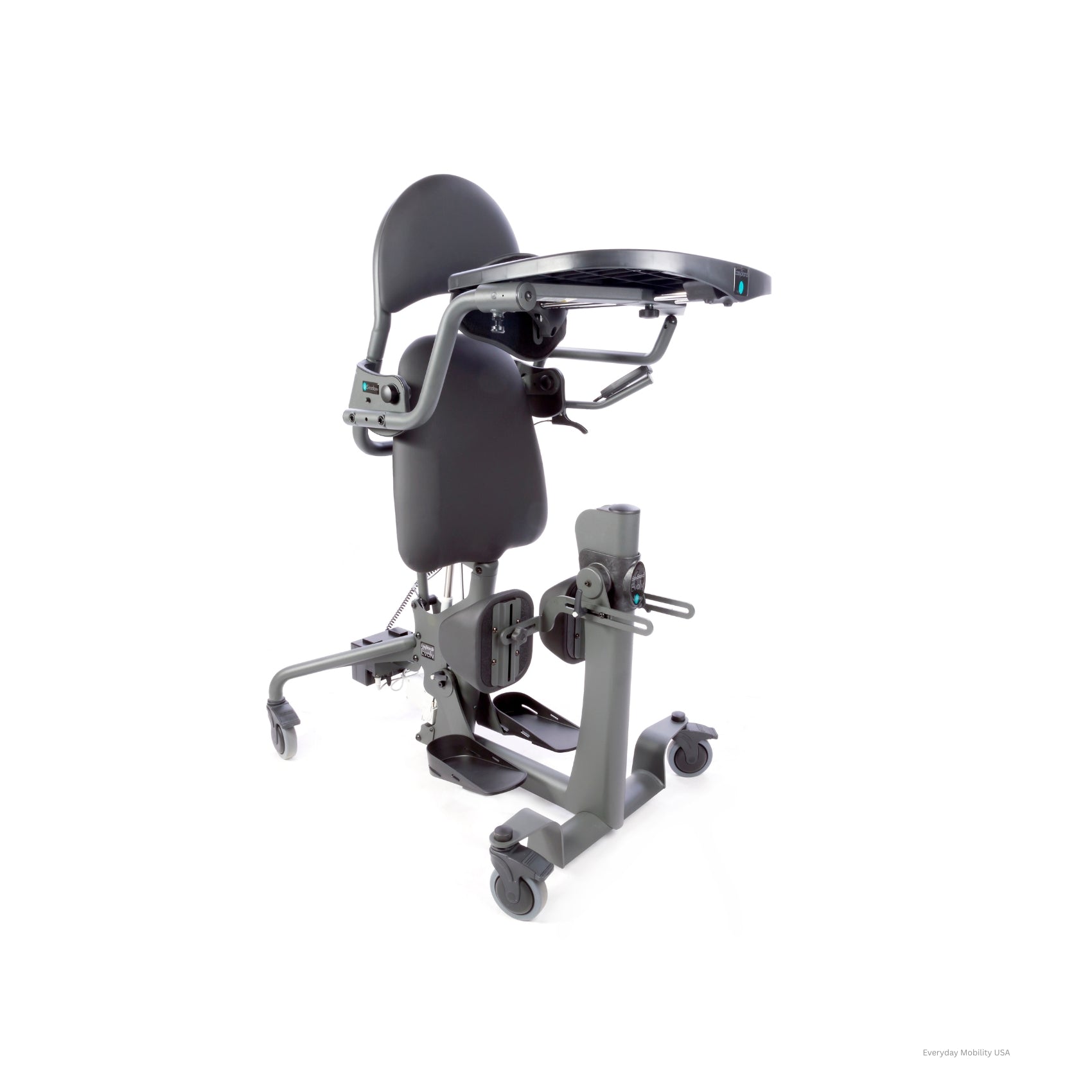

The EasyStand Evolv XT (PNG50209-1) is a modular sit-to-stand standing frame designed for users approximately 6 feet to 6 feet 10 inches tall and up to 350 lbs. With a seat depth range of 20 to 25 inches, it is built to provide supportive daily standing for taller and larger users who need a more accommodating fit range.

The Evolv line is known for its modular design, making it one of the most versatile standing frame systems available. With more than 60 positioning and support options, the Evolv XT can be configured for a wide range of individual needs, from more straightforward standing programs to more involved positioning requirements.

Its standing position is designed to align the pivot points of the frame more closely with the body’s natural pivot points, helping supports such as hip supports, lateral supports, and head support remain in place during the transition from sitting to standing. This helps promote more consistent positioning while minimizing shear.

The contoured seat is designed to support an over-center stretch for a variety of body types, and the Evolv XT can also help accommodate hip and knee contractures through footplate positioning and optional independent knee pads. Its open-base design supports easier lateral transfers, while optional upgrades such as a larger Transfer Seat, Rotating Seat, Swing-Away Front, and Removable Back provide added flexibility for transfers and daily use.

Users can move to standing with the standard manual hydraulic actuator or the optional push-button Pow’r Up Lift, supporting greater independence while reducing caregiver strain. The Evolv XT offers a safe, controlled, and highly supportive standing experience for taller users who need a larger standing frame platform.

Specifications

Approximate Height Range: 6’0″-6’10″ / 183-208 cm
Weight Limit: 350 lbs / 159 kg
Maximum Mass (Fully Loaded Unit): 170 lbs / 77 kg
Seat Depth Range (from seat pivot): 20″-25″ / 51-64 cm
Seat to Footplate Range (from seat pivot): 17″-23″ / 43-58 cm
Kneepad Depth Range (from seat pivot): 4.75″-7″ / 12-18 cm
Seat Height: 23.5″ / 60 cm
Seat Dimensions: 19″W x 21.5″L / 48 x 54 cm
Standard Tray Size: 21″ x 24″ / 53 x 61 cm
Tray/Chest Pad Depth Range (from seat pivot): 0″-10.5″ / 0-27 cm
Standard Tray Height Range (from seat pivot): 15.5″-30.5″ / 39-77 cm
Footprint (at widest points): 29.5″ x 37.5″ / 70 x 95 cm
Weight of Basic Unit: 112 lbs / 51 kg
Frame Color: Charcoal
Standard Upholstery Color: Black
Locking Caster Diameter: 5″ / 13 cm
Footplates – Plantar: 10° in 3 increments (not Glider)
Footplates – Dorsi: 10° in 3 increments (not Glider)
Footplates – Toe-out: 15° in 3 increments (not Glider)
Shadow Tray Height from Seat (Acrylic Tray is 1″ Shorter): 12.25″ / 31 cm
Weight of Evolv w/ Shadow Tray: 115 lbs / 52 kg
Shadow Tray Size: 21″ x 24″ / 53 x 61 cm

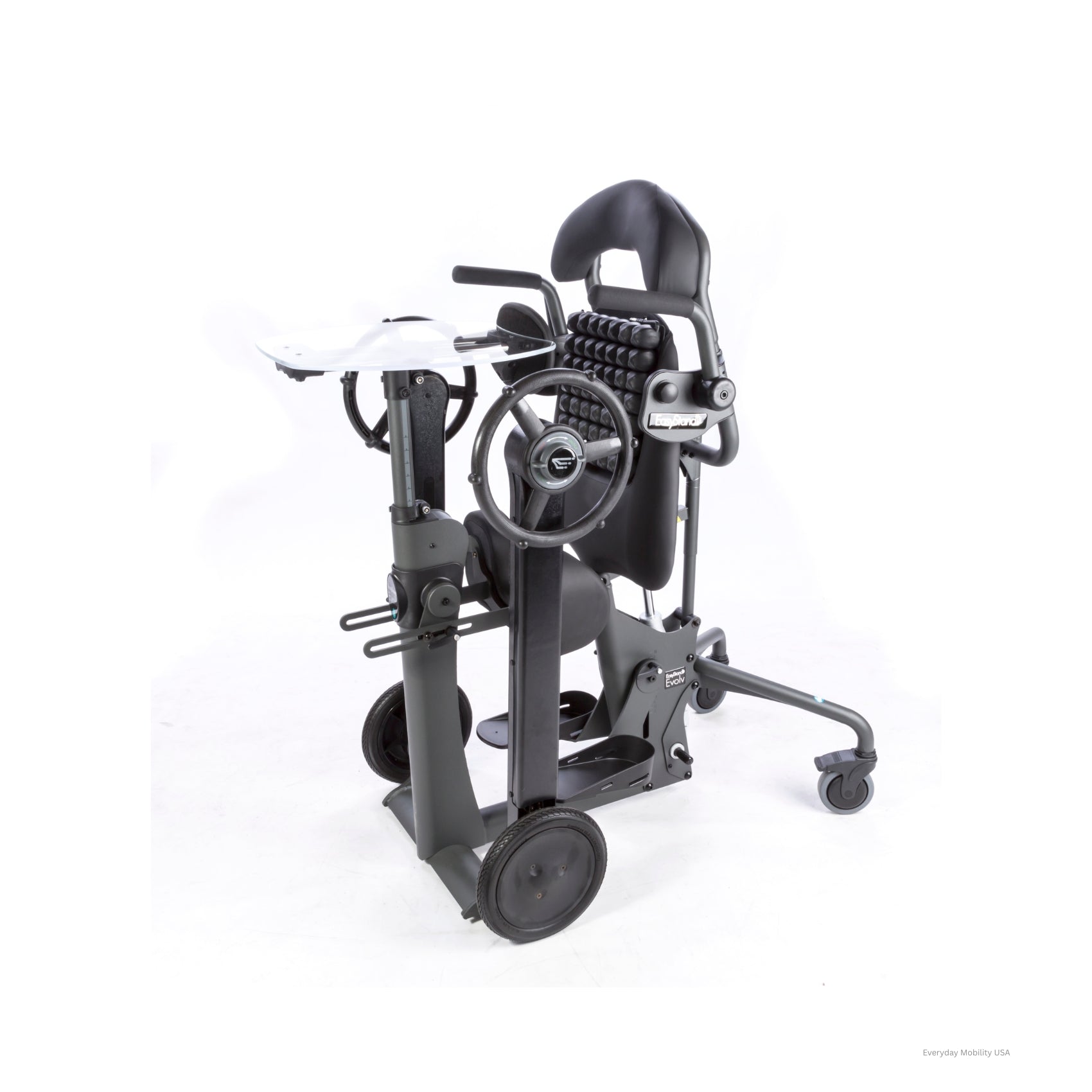

Weight of Mobile Option: 38 lbs / 17 kg
Weight of Evolv Mobile (All Sizes): 135 lbs / 61 kg
Footprint (Including Pushrims): 28.5″ x 36″ / 72 x 91 cm
Wheelbase: 29.75″ / 76 cm
Pushrim Height (from floor): 45″ / 114 cm
Wheel Locks: 1/4 turn rotation to lock/unlock
Drive Chain Tensioning Method: Self-tensioning gravity operated
Mobile Tray Size: 18″W x 19″L / 46 x 48 cm
Front Swivel Casters: Add 5″ W to footprint / 13 cm
Adjustable/Removable Actuator Handle Range: +/- 15° from neutral
T-Style Handle – Extends (Each Direction): 6″ / 15 cm
Foot Straps – Fits Foot Height: 4″-6.5″ / 10-17 cm
Secure Foot Straps – Fits Foot Height: 4″-6.5″ / 10-17 cm
Seat – Size of Roho® Insert: 12″ x 12″ / 30 x 30 cm
Transfer Seat Dimensions: 23″W x 21.5″L / 58 x 54 cm
Hip Supports – Medium Width Range: 10″-15″ / 25-38 cm
Hip Supports – Large Width Range: 12″-17″ / 30-43 cm
Hip Supports Pad Size: 4″W x 6″H / 10 x 15 cm
Independent Kneepad Height Range (from seat pivot): +5″ to -5.25″ / +13 to -13 cm
Independent Kneepad Depth Range (from front of seat): 1″-7.5″ / 3-19 cm
Independent Kneepad Width Range (center to center): 9″-13.5″ / 23-34 cm
Independent Kneepad Size: 7″W x 9″H / 18 x 23 cm
Independent Kneepad Roho® Insert Size: 5″W x 7.5″H / 13 x 19 cm
Clear Acrylic Tray Size: 21″ x 24″ / 53 x 61 cm
Oversized Clear Tray Size: 29″ x 22″ / 74 x 56 cm
Angle Adjustable Tray (Angle Range): 0-35°
Large Contoured Chest Pad (Approximate Size): 9.5″ x 15″ / 24 x 38 cm
Low Back (Flat/Contoured) Height from Seat: 13″ / 33 cm
High Back (Flat/Contoured) Height from Seat: 19″ / 48 cm
Velcro Positioning Belt (Hip Circumference): 26″-55″ / 66-140 cm
Positioning Belt w/ Airline Buckle (Hip Circumference): 26″-55″ / 66-140 cm
Small Chest Strap – Pad Size: 5″W x 19″L / 13 x 48 cm
Small Chest Strap – Fits Chest Measurement: 30″-46″ / 76-117 cm
Large Chest Strap – Pad Size: 5″W x 24″L / 13 x 60 cm
Large Chest Strap – Fits Chest Measurement: 34″-54″ / 86-137 cm
X-Style Chest Vest – Medium: 11″L x 9.5″W / 28 x 24 cm
X-Style Chest Vest – Large: 12.5″L x 10″W / 32 x 26 cm
Y-Style Chest Vest – Medium: 17.5″L x 11.5″W / 44 x 29 cm
Y-Style Chest Vest – Large: 20.5″L x 12.5″W / 52 x 32 cm
High Mount Chest Vest Bracket Positions: 18″, 19″, 20″, 21″ H (above hip pivot) / 46, 48, 51, 53 cm
Lateral Supports – Medium Width Range: 8″-16.5″ / 20.3-41.9 cm
Lateral Supports – Large Width Range: 11″-19.5″ / 27.9-49.5 cm
Lateral Supports – Fore/Aft Pad Adjustment: 3″ / 7.5 cm
Lateral Supports – Height Adjustment (Bracket Swap): 2″ / 5 cm
Lateral Supports – Height Adjustment (Pad Mounting Bolts): 2″ / 5 cm
Lateral Supports – Height Range from Hip Pivot: 4″ / 10-30 cm
Lateral Supports – Rotational Settings: 90°, 180°, 270°, or 360° (pad may face up, down, fore, or aft)
Lateral Support Pad Size: 4″W x 6″H / 10 x 15 cm
Head Support – Medium Height Range: 21″-30.5″ / 53-77 cm
Head Support – Large Height Range: 24″-33.5″ / 61-85 cm
Head Support – Depth Range: 3.75″ / 10 cm
Head Support – Fore/Aft Adjustment: Flush with back aft to 3.75″ / 0 to +9.5 cm

Funding

E0637: Combination sit-to-stand frame system, any size including pediatric, with seat lift feature, with or without wheels.

Insurance coverage may be available for qualifying individuals. Funding typically requires clinical evaluation and supporting documentation from the prescribing provider and therapist.

Catalogs

Manuals

Order Forms

Reference Only: These order forms are provided for configuration review and planning purposes only.

Videos

Warranty

Altimate Medical, Inc. extends this limited warranty only to the original purchaser/customer (or supplier non-consumer who does not buy or resell). EasyStand and Zing products are warranted against defects in materials and workmanship as outlined below.

Warranty Coverage

Steel Frames – 5-year warranty
Hydraulic Actuator – 2-year warranty
Gas Spring – 2-year warranty
Upholstered Components, Plastic Pads, Rubber Parts, Painted Surfaces, Bearings, and Other Parts Not Specifically Identified Above – 90-day warranty

Warranty on Electrical Option Components

Actuator & Hand Pendant – 2-year warranty
Control Box & Battery – 90 days
Battery Charger – 90 days

Warranty Period

The warranty period begins on the original ship date from Altimate Medical. Any product proven to Altimate Medical’s satisfaction to be defective and within the warranty period will be repaired or replaced at Altimate Medical’s option.

Warranty Limitations

Altimate Medical’s sole obligation and your exclusive remedy under this warranty are limited to repair and/or replacement. This warranty does not include any labor charges incurred in replacement parts installation. Freight charges to and from the factory are the responsibility of the consumer or seller. Return freight charges will be prepaid by Altimate Medical for warranty service when requested by Altimate Medical before return. To receive satisfactory warranty service, please write directly to Altimate Medical at the address below. Do not return products without prior authorization.

This warranty does not apply to products subjected to negligence, abuse, misuse, improper operation, improper maintenance, improper storage, or damages beyond normal use. It also does not apply to products modified without Altimate Medical’s written consent, including modifications through the use of unauthorized parts or attachments, or products damaged by repairs using parts not manufactured by Altimate Medical or not complying with original equipment specifications.

Disclaimer

The foregoing warranty is exclusive and in lieu of all other express warranties. Altimate Medical shall not be liable for any consequential or incidental damages whatsoever.

Additional Information

Altimate Medical maintains a policy of continual product improvement and reserves the right to change features, specifications, and prices without prior notice. Check with Altimate Medical for the latest product information.
