EasyStand Evolv Large Package Deals

$6,370.00

Sale Sold out

Shipping calculated at checkout.

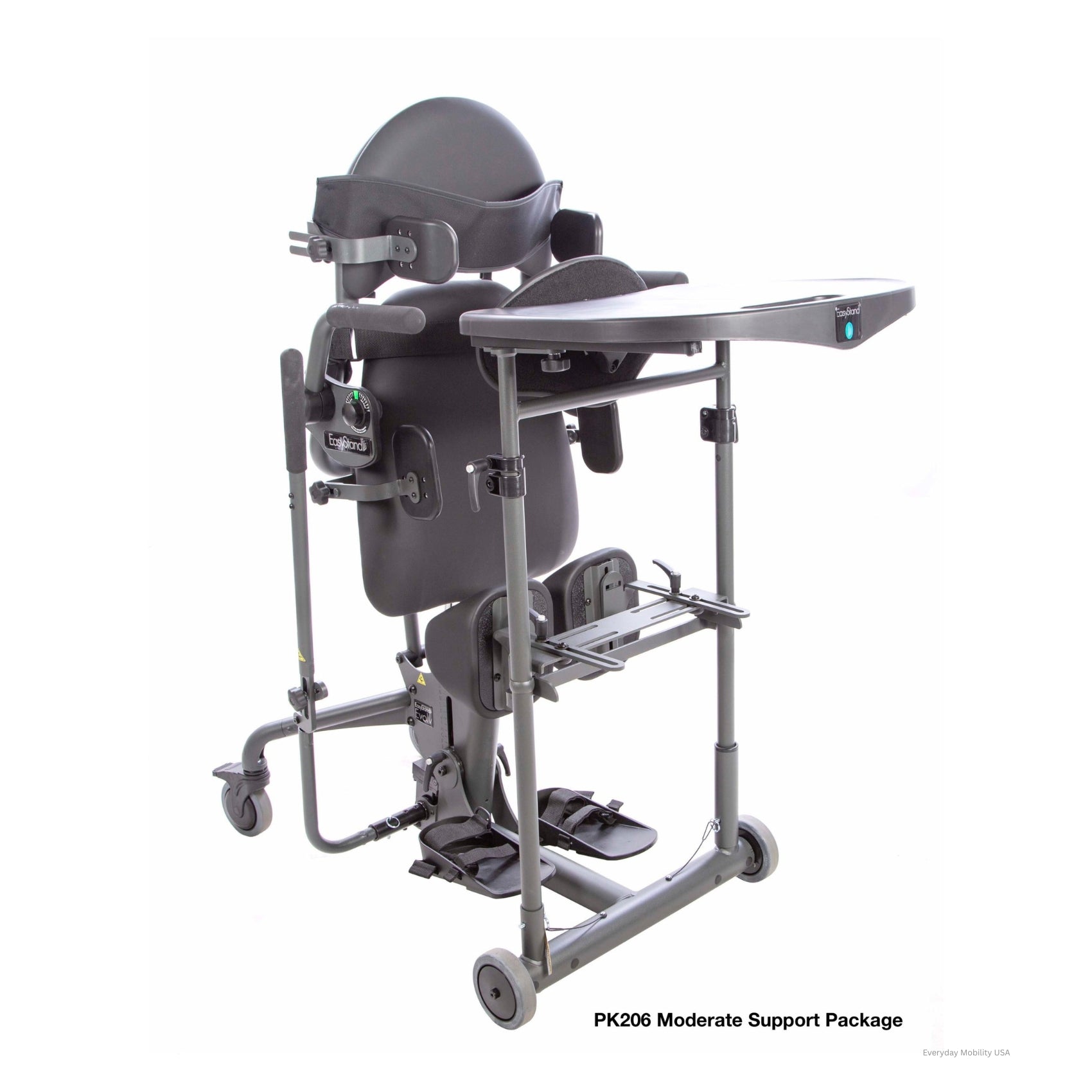

Package PK205- Minimum Support Package PK206 - Moderate Support Package PK207 - Maximum Support Package PK208 - Minimum Support Package (Mobile)

View full details

Description

The EasyStand Evolv Large (PNG50084-1) is a modular sit-to-stand standing frame designed for users approximately 5 feet to 6 feet 2 inches tall and up to 280 lbs. With a seat depth range of 18 to 23 inches, it provides a highly adaptable platform for supportive daily standing in home, school, and clinical environments.

The Evolv line is known for its modular design, making it one of the most versatile standing frame systems available. With more than 60 positioning and support options, the Evolv Large can be configured for a wide range of individual needs, from more straightforward standing programs to more involved positioning requirements.

Its standing position is designed to align the pivot points of the frame more closely with the body’s natural pivot points, helping supports such as hip supports, lateral supports, and head support remain in place during the transition from sitting to standing. This helps promote more consistent positioning while minimizing shear.

The contoured seat is designed to support an over-center stretch for a variety of body types, and the Evolv can also help accommodate hip and knee contractures through footplate positioning and optional independent knee pads. Its open-base design supports easier lateral transfers, while optional upgrades such as a larger Transfer Seat, Rotating Seat, Swing-Away Front, and Removable Back provide added flexibility for transfers and daily use.

Users can move to standing with the standard manual hydraulic actuator or the optional push-button Pow’r Up Lift, supporting greater independence while reducing caregiver strain. The Evolv Large offers a safe, controlled, and highly supportive standing experience for a wide range of users.

Features

Modular sit-to-stand standing frame with more than 60 positioning and support options
Designed for users approximately 5'0" to 6'2" and up to 280 lbs.
Seat depth range of 18" to 23"
Designed to help supports remain in place during the sit-to-stand transition
Open-base design to support easier lateral transfers
Standard manual hydraulic actuator
Optional Pow’r Up Lift available
Optional transfer and positioning upgrades available for more involved needs

Specifications

Base Unit

Approximate Height Range: 5’0″–6’2″ (152–188 cm)
Weight Limit: 280 lbs (127 kg)
Maximum Mass (Fully Loaded Unit): 153 lbs (69 kg)
Seat Depth Range (from seat pivot): 18″–23″ (46–58 cm)
Seat to Footplate Range (from seat pivot): 14″–21″ (36–53 cm)
Knee Width (center to center): 9″ (23 cm)
Kneepad Depth Range (from seat pivot): 2″–7″ (5–18 cm)
Seat Height: 21.5″ (55 cm)
Seat Dimensions: 19″ W × 21.5″ L (48 × 54 cm)
Standard Tray Size: 21″ × 24″ (53 × 61 cm)
Tray / Chest Pad Depth Range (from seat pivot): 0″–10.5″ (0–27 cm)
Standard Tray Height Range (from seat pivot): 15.5″–30.5″ (39–77 cm)
Footprint (at widest points): 26.5″ × 33.5″ (67 × 85 cm)
Weight of Basic Unit: 104 lbs (47 kg)
Frame Color: Charcoal
Standard Upholstery Color: Black
Locking Caster Diameter: 5″ (13 cm)

Footplates (Not Glider)

Plantar Flexion: 10° in 3 increments
Dorsi Flexion: 10° in 3 increments
Toe-Out: 15° in 3 increments

Shadow Tray

Shadow Tray Height from Seat: 12.25″ (31 cm) – acrylic tray is 1″ shorter
Weight of Evolv with Shadow Tray: 115 lbs (52 kg)
Shadow Tray Size: 21″ × 24″ (53 × 61 cm)

Mobile Option

Weight of Mobile Option: 38 lbs (17 kg)
Weight of Evolv Mobile (all sizes): 135 lbs (61 kg)
Footprint (including pushrims): 28.5″ × 36″ (72 × 91 cm)
Wheelbase: 29.75″ (76 cm)
Pushrim Height (from floor): 45″ (114 cm)
Wheel Locks: ¼-turn rotation to lock/unlock
Drive Chain Tensioning Method: Self-tensioning, gravity operated
Mobile Tray Size: 18″ W × 19″ L (46 × 48 cm)

Options & Adjustability

Front Swivel Casters: Adds 5″ (13 cm) to footprint width
Adjustable / Removable Actuator Handle Range: ±15° from neutral
T-Style Handle Extension: 6″ each direction (15 cm)
Foot Straps – Fits Foot Height: 4″–6.5″ (10–17 cm)
Secure Foot Straps – Fits Foot Height: 4″–6.5″ (10–17 cm)
Seat – Roho® Insert Size: 12″ × 12″ (30 × 30 cm)
Transfer Seat Dimensions: 23″ W × 21.5″ L (58 × 54 cm)

Hip & Knee Supports

Hip Supports – Medium Width Range: 10″–15″ (25–38 cm)
Hip Supports – Large Width Range: 12″–17″ (30–43 cm)
Hip Support Pad Size: 4″ W × 6″ H (10 × 15 cm)

Independent Kneepads

Height Range (from seat pivot): +5″ to −5.25″ (+13 to −13 cm)
Depth Range (from front of seat): 1″–7.5″ (3–19 cm)
Width Range (center to center): 9″–13.5″ (23–34 cm)
Pad Size: 7″ W × 9″ H (18 × 23 cm)
Roho® Insert Size: 5″ W × 7.5″ H (13 × 19 cm)

Tray & Chest Supports

Clear Acrylic Tray Size: 21″ × 24″ (53 × 61 cm)
Oversized Clear Tray Size: 29″ × 22″ (74 × 56 cm)
Angle Adjustable Tray Range: 0°–35°
Large Contoured Chest Pad (approx.): 9.5″ × 15″ (24 × 38 cm)

Backs & Belts

Low Back Height (flat/contoured): 13″ (33 cm)
High Back Height (flat/contoured): 19″ (48 cm)
Velcro Positioning Belt (hip circumference): 26″–55″ (66–140 cm)
Positioning Belt with Airline Buckle: 26″–55″ (66–140 cm)

Chest Vests & Straps

Small Chest Strap Pad: 5″ W × 19″ L (13 × 48 cm)
Small Chest Strap Fits Chest: 30″–46″ (76–117 cm)
Large Chest Strap Pad: 5″ W × 24″ L (13 × 60 cm)
Large Chest Strap Fits Chest: 34″–54″ (86–137 cm)

Chest Vests

X-Style Medium: 11″ L × 9.5″ W (28 × 24 cm)
X-Style Large: 12.5″ L × 10″ W (32 × 26 cm)
Y-Style Medium: 17.5″ L × 11.5″ W (44 × 29 cm)
Y-Style Large: 20.5″ L × 12.5″ W (52 × 32 cm)
High-Mount Chest Vest Bracket Positions: 18″, 19″, 20″, 21″ above hip pivot (46, 48, 51, 53 cm)

Lateral Supports

Medium Width Range: 8″–16.5″ (20.3–41.9 cm)
Large Width Range: 11″–19.5″ (27.9–49.5 cm)
Fore/Aft Pad Adjustment: 3″ (7.5 cm)
Height Adjustment (swap brackets left/right): 2″ (5 cm)
Height Adjustment (pad mounting bolts): 2″ (5 cm)
Height Range from Hip Pivot: 4″–12″ (10–30 cm)
Rotational Settings: 90°, 180°, 270°, or 360°
Lateral Support Pad Size: 4″ W × 6″ H (10 × 15 cm)

Head Support

Medium Height Range: 21″–30.5″ (53–77 cm)
Large Height Range: 24″–33.5″ (61–85 cm)
Depth Range: 3.75″ (10 cm)
Fore/Aft Adjustment: Flush to 3.75″ aft (0 to +9.5 cm)

Funding

E0637: Combination sit-to-stand frame system, any size including pediatric, with seat lift feature, with or without wheels.

Insurance coverage may be available for qualifying individuals. Funding typically requires clinical evaluation and supporting documentation from the prescribing provider and therapist.

Catalogs

EasyStand Evolv Product Catalog (PDF)

Manuals

Order Forms

Reference Only: These order forms are provided for configuration review and planning purposes only.

Videos

Warranty

Altimate Medical, Inc. extends this limited warranty only to the original purchaser/customer (or supplier non-consumer who does not buy or resell). EasyStand and Zing products are warranted against defects in materials and workmanship as outlined below.

Warranty Coverage

Steel Frames – 5-year warranty
Hydraulic Actuator – 2-year warranty
Gas Spring – 2-year warranty
Upholstered Components, Plastic Pads, Rubber Parts, Painted Surfaces, Bearings, and Other Parts Not Specifically Identified Above – 90-day warranty

Warranty on Electrical Option Components

Actuator & Hand Pendant – 2-year warranty
Control Box & Battery – 90 days
Battery Charger – 90 days

Warranty Period

The warranty period begins on the original ship date from Altimate Medical. Any product proven to Altimate Medical’s satisfaction to be defective and within the warranty period will be repaired or replaced at Altimate Medical’s option.

Warranty Limitations

Altimate Medical’s sole obligation and your exclusive remedy under this warranty are limited to repair and/or replacement. This warranty does not include any labor charges incurred in replacement parts installation. Freight charges to and from the factory are the responsibility of the consumer or seller. Return freight charges will be prepaid by Altimate Medical for warranty service when requested by Altimate Medical before return. To receive satisfactory warranty service, please write directly to Altimate Medical at the address below. Do not return products without prior authorization.

This warranty does not apply to products subjected to negligence, abuse, misuse, improper operation, improper maintenance, improper storage, or damages beyond normal use. It also does not apply to products modified without Altimate Medical’s written consent, including modifications through the use of unauthorized parts or attachments, or products damaged by repairs using parts not manufactured by Altimate Medical or not complying with original equipment specifications.

Disclaimer

The foregoing warranty is exclusive and in lieu of all other express warranties. Altimate Medical shall not be liable for any consequential or incidental damages whatsoever.

Additional Information

Altimate Medical maintains a policy of continual product improvement and reserves the right to change features, specifications, and prices without prior notice. Check with Altimate Medical for the latest product information.
