ActiveAid SC Rehab Shower Commode Chair

Desc

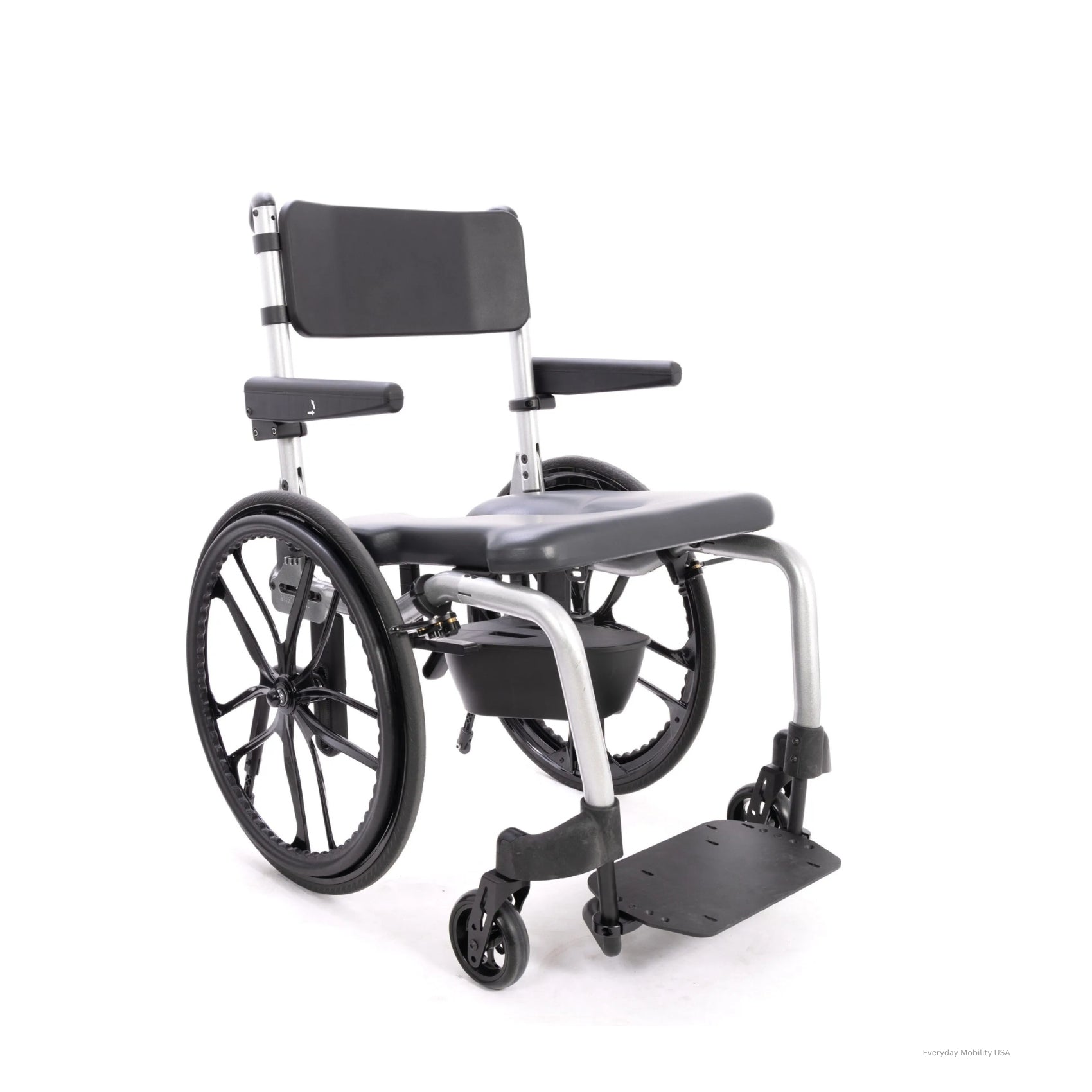

The ActiveAid SC is a self-propelled rehab shower commode chair designed to provide compact access, strong configurability, and everyday clinical functionality in a streamlined frame. Its narrow, modular design helps improve access through tighter bathrooms and doorways while supporting a wide range of user and caregiver needs.

Built for flexibility, the ActiveAid SC offers two frame height options and multiple adjustment points, including seat slope adjustment, seat aperture fore/aft adjustment, back angle adjustment, and rear wheel position adjustment. This wheelchair-style configurability helps support more individualized bathroom access, transfer setup, and positioning without requiring custom modifications.

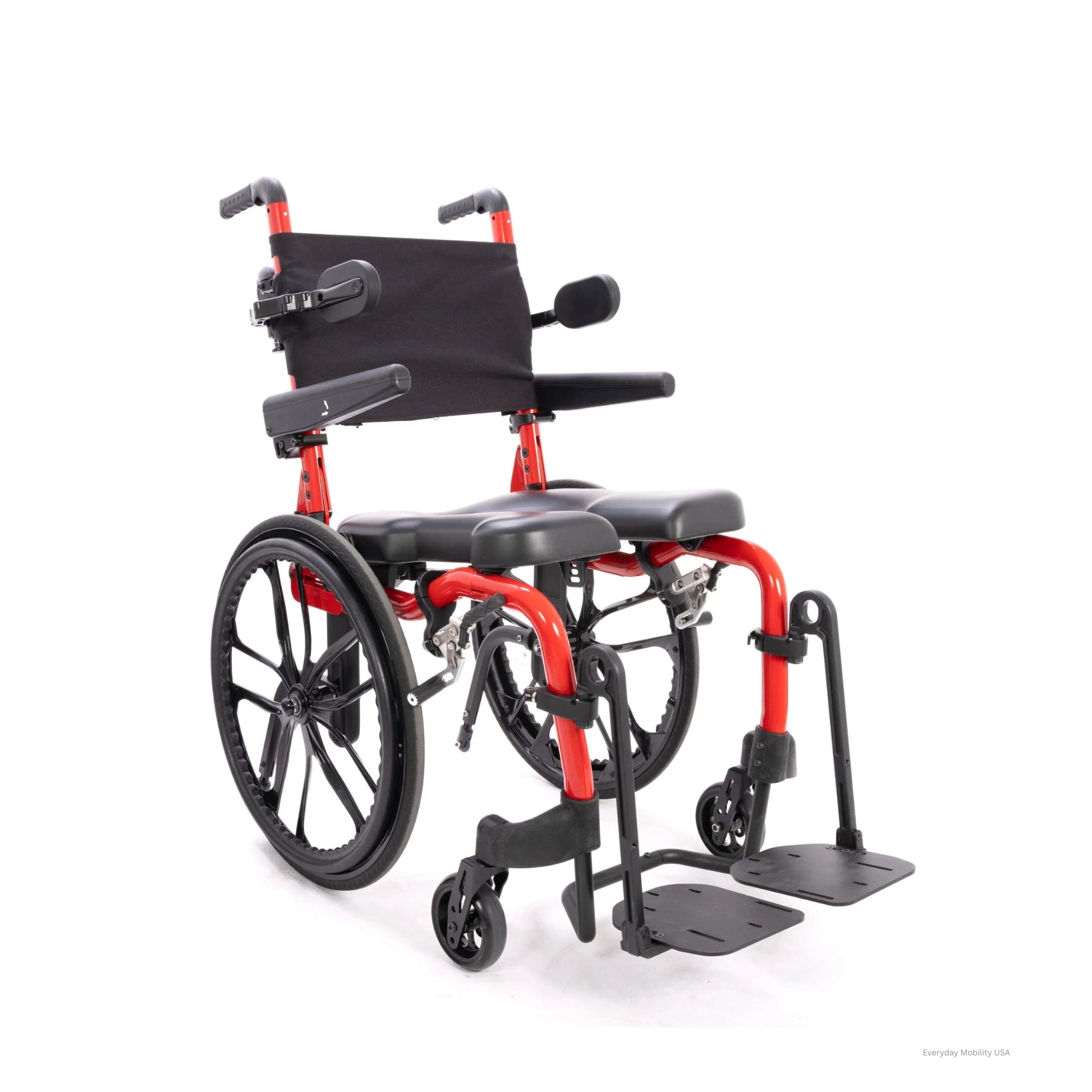

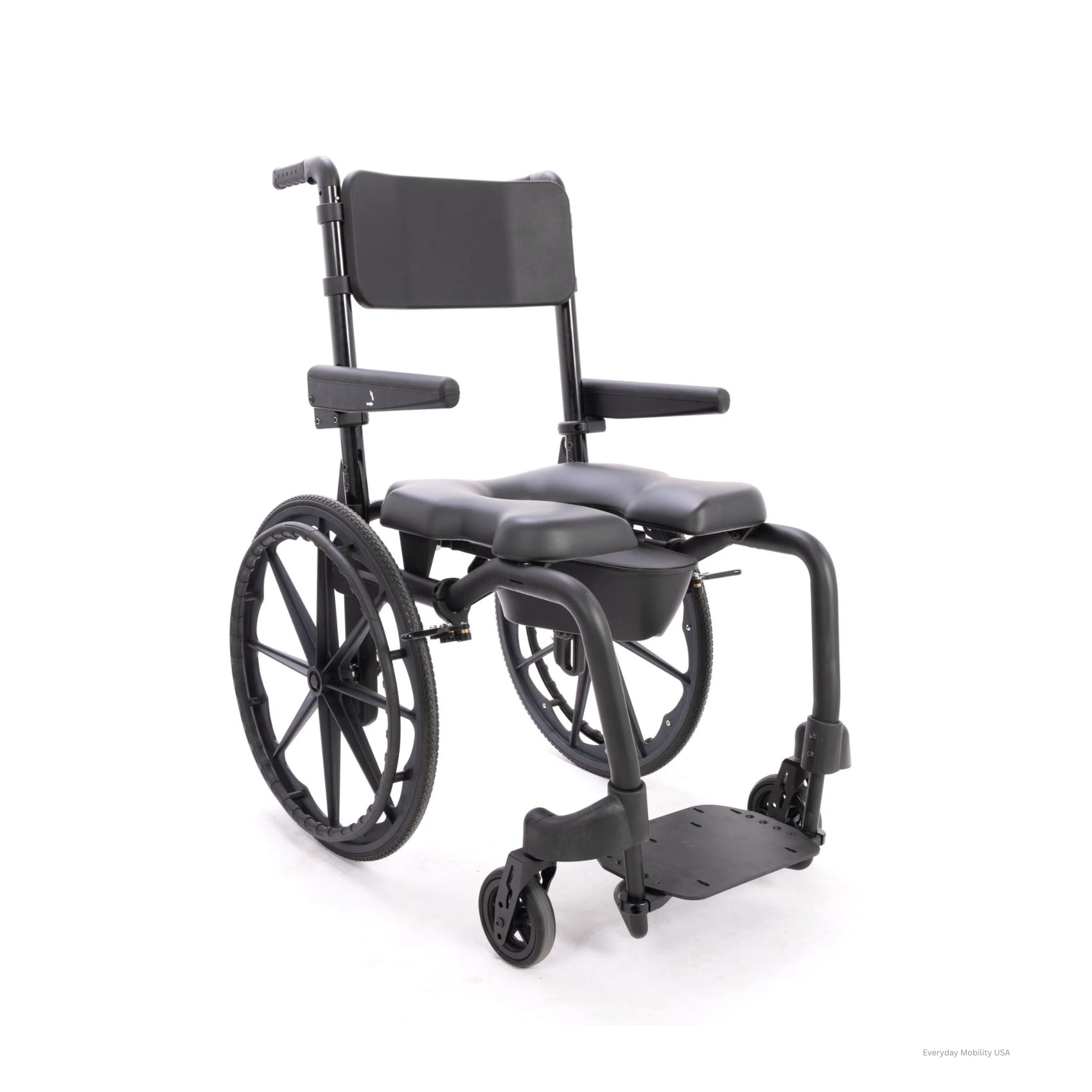

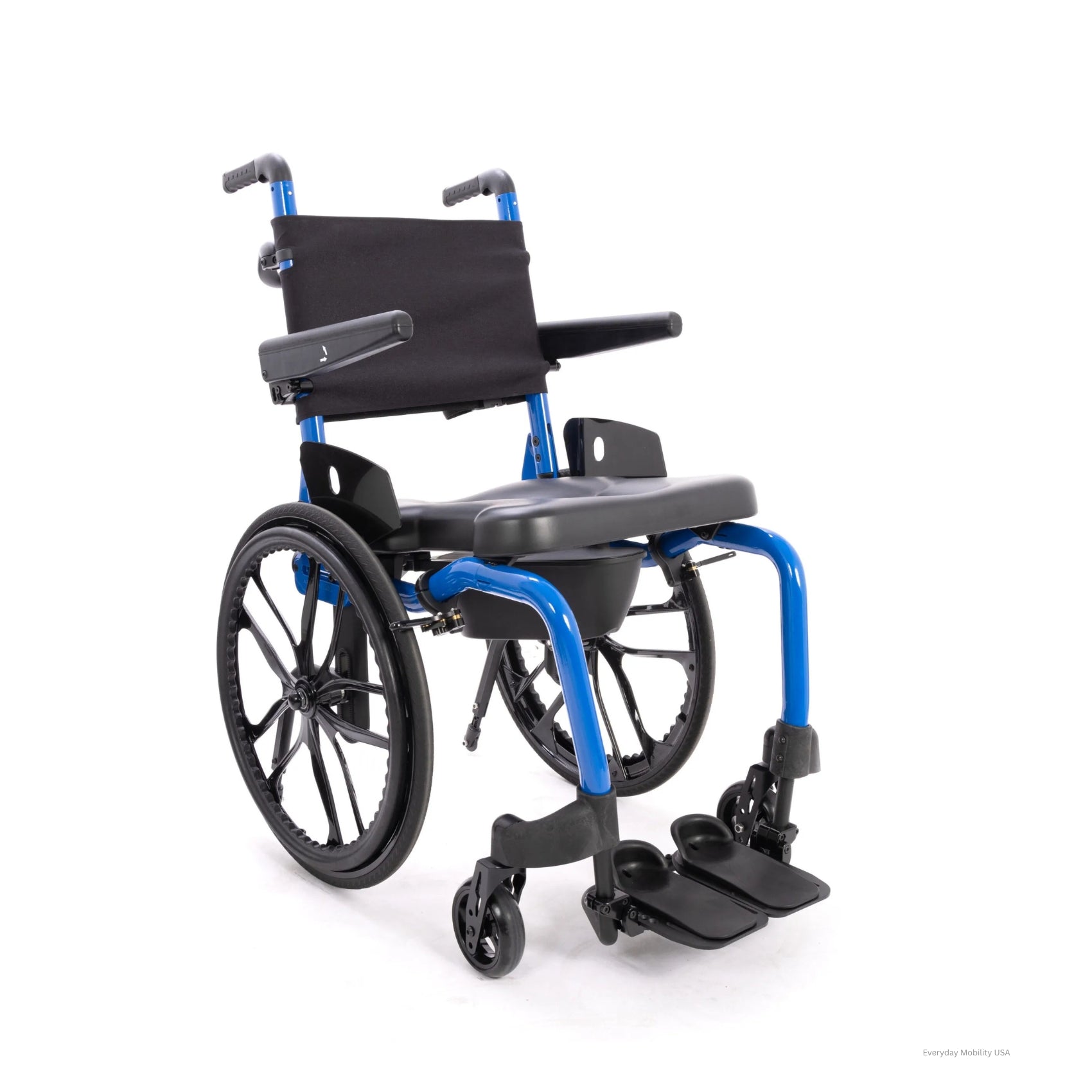

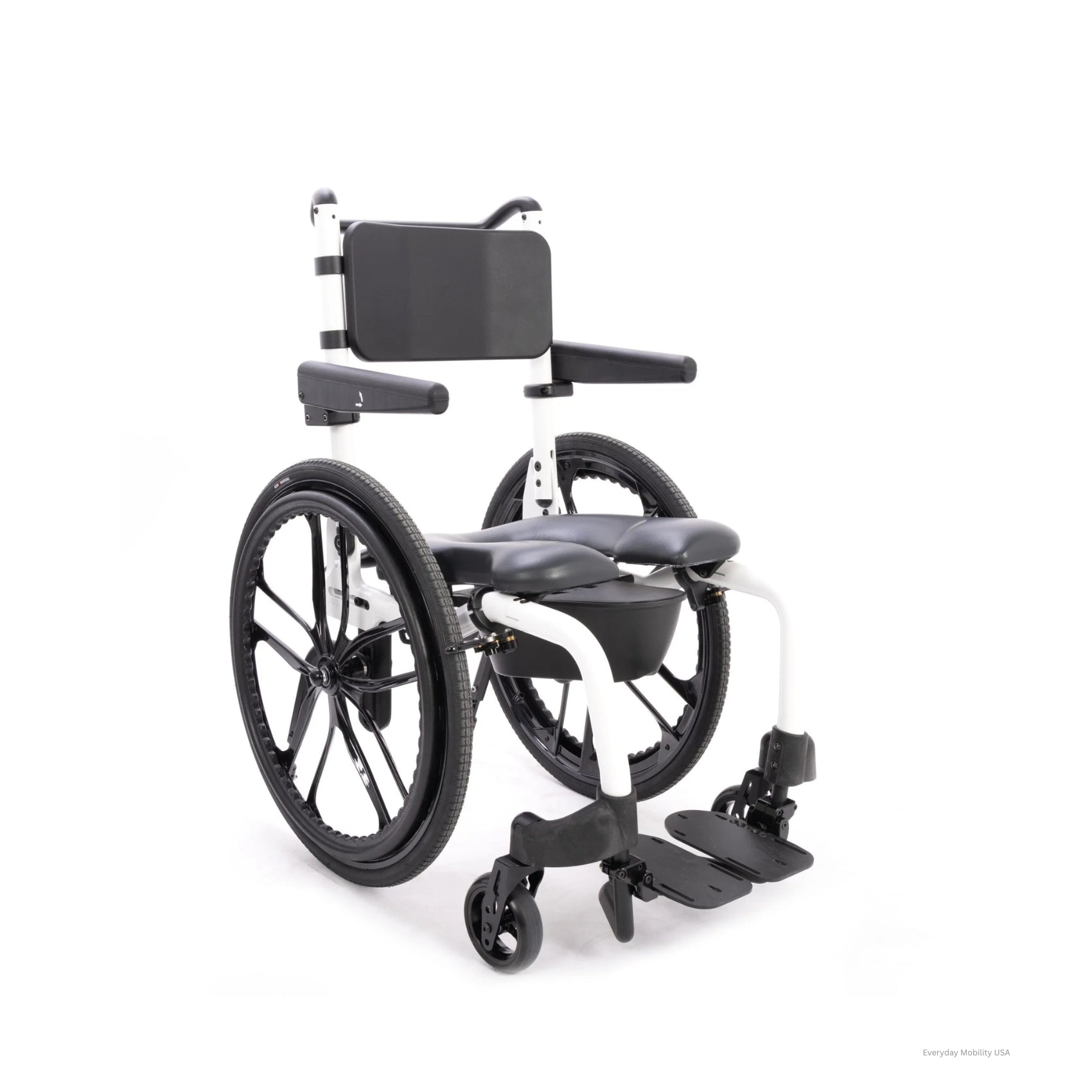

The SC is also available in multiple frame colors, including Black, Red, Blue, Silver, and White, along with several ergonomic seat styles to better match comfort, hygiene access, and positioning preferences. Seat options include contoured and specialty contoured designs, with select models also available in gel top configurations.

Designed to perform well in tighter environments, the ActiveAid SC features narrow overall chair widths, an improved turning radius, and multiple footplate options to help accommodate bathroom clearance, transfer needs, and individual positioning goals. Final dimensions and clearances vary based on the selected frame size, wheel setup, rear wheel position, and footplate configuration.

Features

• Self-propelled rehab shower commode chair with compact, modular frame design
• Narrow chair profile to help improve access through tighter bathrooms and doorways
• Available in two frame height options
• Seat slope, seat aperture, back angle, and rear wheel position adjustments support more individualized setup
• Available in multiple frame colors including Black, Red, Blue, Silver, and White
• Multiple seat styles available, including contoured and specialty contoured designs
• Multiple footplate and rear wheel configurations available
• Designed to support bathroom access, transfer setup, and clinical positioning needs

Specs

• Weight Capacity: 310 lbs.
• Frame Width Options: 16", 18" (standard), 20"
• Frame Depth Options: 16" (standard), 18", 20"
• Seat Height (Frame Type):
  • Standard Frame: 21.75"–23.5" transfer height range (front seat-to-floor height positions)
  • Short Frame: 19.75"–21.5" transfer height range (front seat-to-floor height positions)
• Seat System:
  • 18"W x 16"D Front Open Contoured Seat (standard)
  • Specialty Contoured Seat (formed seat) with opening/orientation options: Front Opening, Closed, Left Side Opening, Right Side Opening, Rear Opening, Solid
  • Seat Slope: Fixed (standard) or Adjustable Seat Slope (optional)
  • Seat Aperture Location: 7", 8", or 9" (setup selection)
• Front Casters: 5" (standard) or Deluxe Aluminum 5" (optional)
• Rear Wheel System (choose one style):
  • Nylon Rear Wheel System (standard): 20", 22" (standard), or 24" rear wheels with nylon hand rims
  • Magnesium Rear Wheel System (optional): 22" or 24" magnesium wheels with tread type selection (shallow or deep) and hand rim selection (aluminum or slim ergonomic)
  • Axles: Bolted (standard) or Quick Release (optional)
• Wheel Locks: Scissor Wheel Locks (standard) or Toggle Wheel Locks (optional styles)
• Foot Plates (height adjustable):
  • Frame Mounted One Piece Foot Plate (standard)
  • Frame Mounted One Piece Foot Plate, Angle Adjustable (optional)
  • Frame Mounted Two Piece Flip-Up Foot Plates (optional)
  • Swing-Away Gooseneck Flip-Up Foot Plate (Short or Tall, optional)
  • Optional foot plate accessories include neoprene covers, heel stops, contoured foot pad with heel stop, and foot straps (availability depends on foot plate type)
• Back System:
  • Solid Contoured Foam Back (standard) or Sling Back (optional)
  • Fixed Back (standard) or Angle-Adjustable & Foldable Back (optional)
  • Back Height setup options: 18", 16", or 14" to top of backrest
• Armrests: Flip-Up Armrests (standard) or Flip-Up Multi-Adjustable Armrests (optional; certain back configuration required)
• Pan / Hanger Options: 1"–5" drop options (configuration-dependent; certain seat slope setups require additional drop)
• Chair Setup (clinical configuration selections): Front seat-to-floor height position, rear wheel position, seat aperture location, and other setup selections affect final fit and clearances.

Catalogs

• ActiveAid SC Product Brochure

Manuals

• ActiveAid SC Owner’s Manual (Instructions for Use)

Order Forms

Reference Only: These order forms are provided for configuration review and planning purposes only.

• ActiveAid SC Packages Order Form

Measurements

The charts below provide detailed dimensional data for the ActiveAid SC Shower Commode Chair. These reference matrices are commonly used by clinicians and providers to confirm:

• Overall chair width (varies by wheel and handrim configuration)
• Overall chair depth (nylon vs magnesium wheels)
• Front seat-to-floor height range
• Axle mount position
• Under-seat clearance (height and width)
• Turning radius
• Seat-to-footplate height range

Important: Final dimensions vary based on selected frame width, frame depth, wheel system, rear wheel position, seat slope configuration, and footplate selection.

View Online:

Download Options:

• Download Page 1 (PNG)
• Download Page 2 (PNG)

Videos

• ActiveAid SC: Seat to Back Angle Adjustment
• ActiveAid SC: Front Seat to Floor Height Adjustment
• ActiveAid SC: One-Piece Foot Plate Height Adjustment
• ActiveAid SC: Rear Wheel Position
• ActiveAid SC: Solid Contoured Foam Back Height Adjustment
• ActiveAid SC: Seat Aperture Adjustment
• ActiveAid SC: Seat Slope Adjustment
